138-3252 M20X2.5 Thread 12-Point Head Bolt

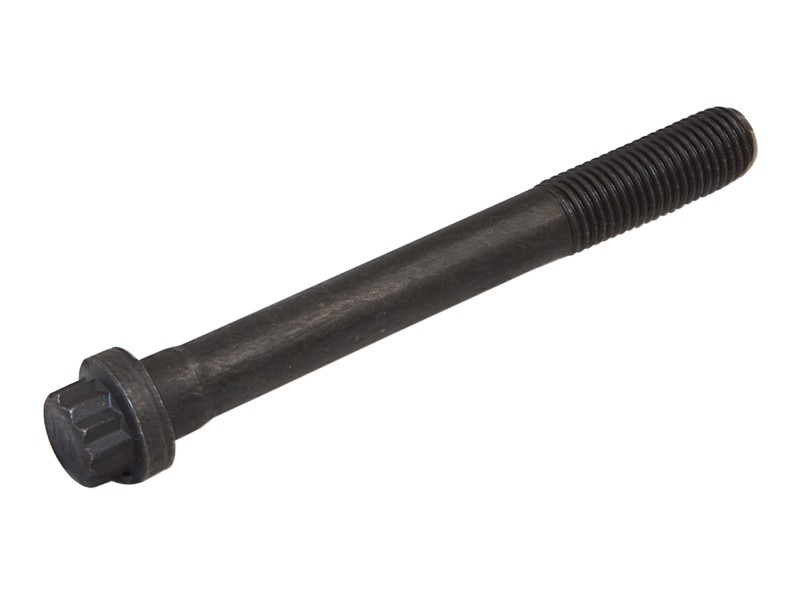

Cat® M20x2.5 Thread 170 mm Long 12-Point Head Bolt
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These bolts are commonly used in engines and driveline. 12-point head bolts have high fatigue performance and fit designs that do not have enough clearance for hex head bolts.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size | M20 mm (0 in) |
|---|---|
| Locking Feature | None |
| Thread Direction | RH |
| Class or Grade | Cat/ISO 898-1 Class 11.9 |
| Type | 12-Point Head Bolt |
| Bolt Length | 170 mm (6.693 in) |
| Bolt Type | 0 |
| Coating | Zinc Phosphate and Oil |
| Thread Size (Diameter × Pitch) | M20X2.5 mm |
| Handle Length | 118 mm (4.646 in) |
| Flange Diameter | 30 mm |
Compatible Equipment
- Motor Graders: 12K, 160K, 140K, 120H, 140G
- Engines: C7
- Dozers: D6N, D5N
- Excavators: M325D L MH, 325D L, 325D, 325C, 329D L, 324D, 324D L, 325C L, 328D LCR, 326D L, 3126, 329D
- Wheel Loaders: 950H, R1600H, 966F
- Skid Steer Loaders: 3126B
Additional information
| Machine Model | 120H, 12K, 140G, 140K, 160K, 3126, 3126B, 324D, 324D L, 325C, 325C L, 325D, 325D L, 326D L, 328D LCR, 329D, 329D L, 950H, 966F, C7, D5N, D6N, M325D L MH, R1600H |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Skid Steer Loaders, Dozers, Motor Graders, Engines |
| Part Source | Genuine OEM |
