Description

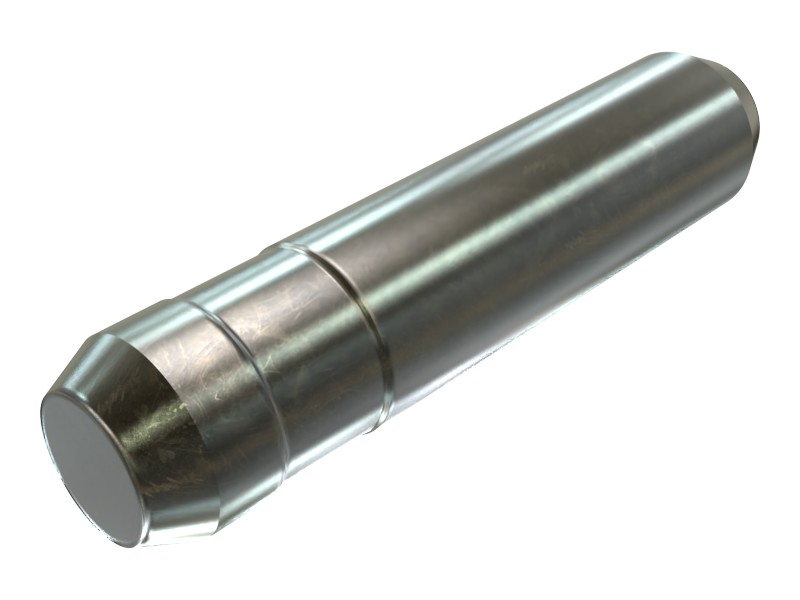

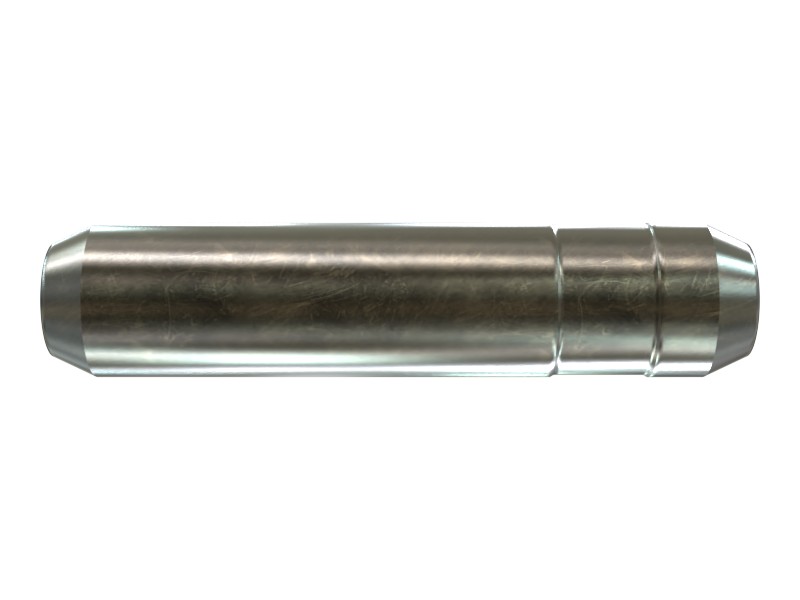

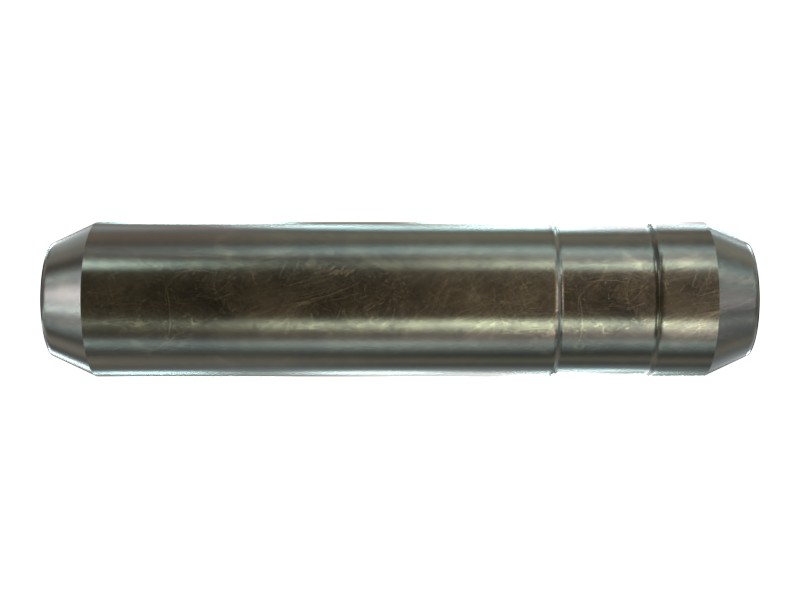

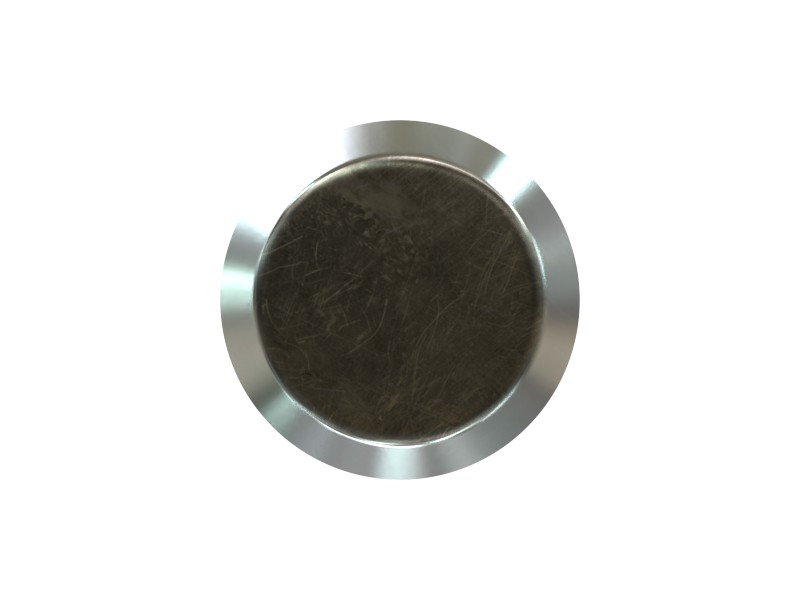

This retaining pin is chamfered at both ends and has a groove. The pin is recommended for certain ripper assemblies, scarifier assemblies and excavator buckets and can be installed from either side of the tip.
Applications
- R550 ripper assemblies, scarifier assemblies and excavator buckets
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Compatible Models:
Grader
120M 120K 120M 2 12G 12H 12H ES 12H NA 12K 12M 12M 2 12M 3 12M 3 AWD 130G 14 140 140 GC 140G 140H 140H ES 140H NA 140K 140K 2 140M 140M 2 140M 3 140M 3 AWD 143H 14G 14H 14H NA 14L 14M 14M-3 14M3 150 160 160H 160H ES 160H NA 160K 160M 160M 2 160M 3 160M 3 AWD 163H 163H NA 404F-22
Excavator
330-A 330-A L
Track-type loaders
963 963B 963C 963D 963K
Track-Type Tractors
D4 D4E SR D4H D4H III D4H XL D5M D5N D6K D6K LGP D6K XL D6K2 D6K2 LGP D6K2 XL
Specifications
| Length | 85 mm (3.35 in) |
|---|---|
| Diameter | 19.05 mm (0.75 in) |
| Material | Low Alloy Steel |
Compatible Equipment
- Motor Graders: 14, 140G, 140 GC, 12H, 160K, 140H, 12K, 14M, 140K
- Track Loaders: 963, 963D, 963K
- Dozers: D4, D5M, D6K2, D5N
