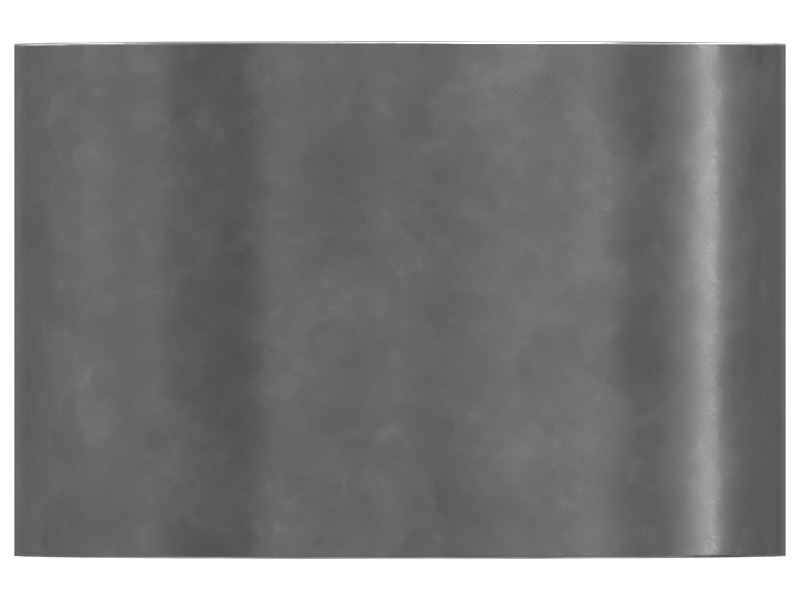

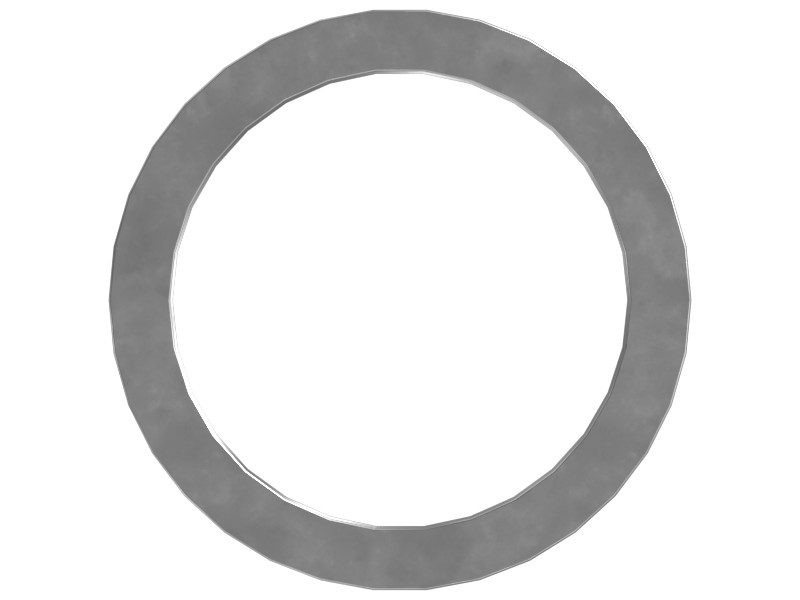

136-2893 92.5 mm Thick Shim
Cat® 92.5 mm Thick Steel Shim for Positioning Assistance Between Mating Components
Description
Shims are fasteners used to create space between two components. They are also used to provide positioning assistance between components. Steel shims can vary in size and shape depending on their intended use, but they are manufactured to very tight tolerances to ensure precise spacing between components.
Attributes
- Withstands high temperatures without losing strength or integrity
- Built to exact specifications for durability and reliability
Applications
The shim is used to increase the distance between the pinion shaft and the planetary carrier and helps distribute the load evenly between components, reducing stress and preventing deformation.
Specifications
| Material | Microalloy Steel |
|---|---|
| Ferrule Inside Diameter | 110.5 mm (4.35 in) |
| Ferrule Outside Diameter | 140 mm (5.512 in) |
| Unique Features | No |
| Overall Length | 92.5 mm (3.642 in) |
| Cross Hole | No |
Compatible Equipment
- Excavators: 365C, 365B, 374F L, 365C L, 365B L, 374D L, 374F
