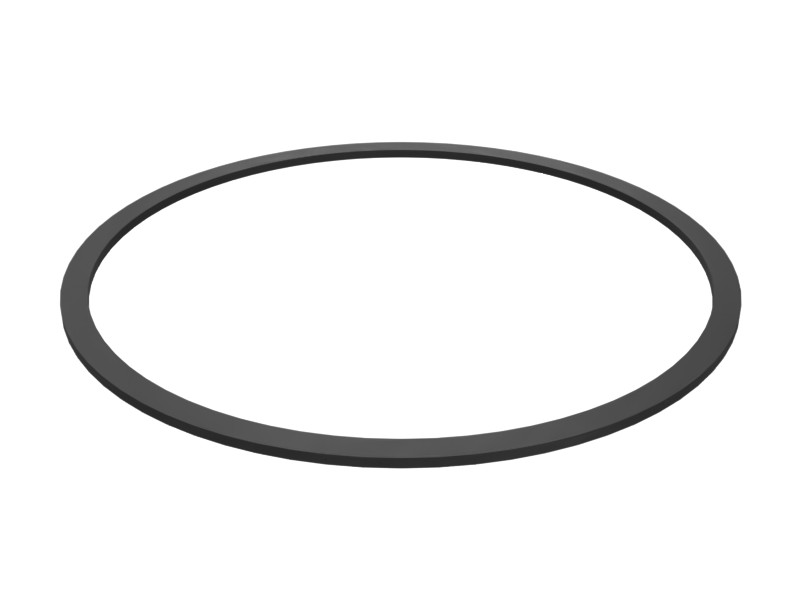

Description
The clamp ring prevents the gasket from being extruded under high-pressure applications and can be used to protect the life of the overall sealing system from pressure spikes.
Features
Cat® collets are designed together with the elastomeric gasket and contact components, significantly improving the life and function of sealing systems in high-pressure applications.
Clamp rings are always held to tight tolerances to ensure that they properly engage the gasket groove and contact surfaces. The materials selected are pressure-resistant and wear-resistant.
Safety rings can be solid or split. Split rings are easy to install.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat gaskets protect your investment.
Applications
The clamp ring is used in high-pressure static and dynamic sealing applications, such as hydraulic pumps, valves, and motor systems.
Specifications
| Seal Type | Support Ring |
|---|---|
| Inside Diameter | 120.0 mm (4.724 in) |
| Cross-Section Width | 5.0 mm (0.197 in) |
| Cross-Section Thickness | 1.9 mm (0.075 in) |
Compatible Equipment
- Excavators: 374, 395, 374F L, 390F, 365B, 385C, 385B, 345C L, 365C L, 365C, 385C L, 345C, 365B L, 390D, 385C FS, 3101, 390D L, 390F L, 374D L, 374F
