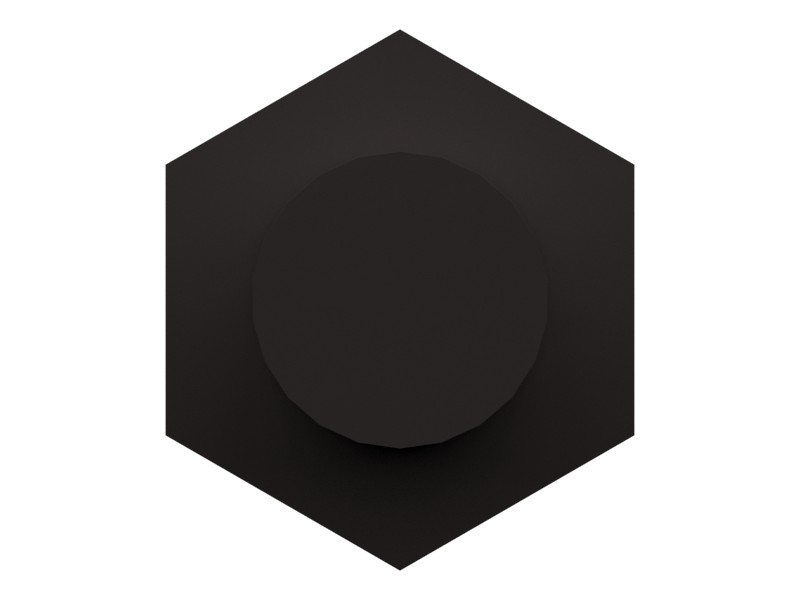

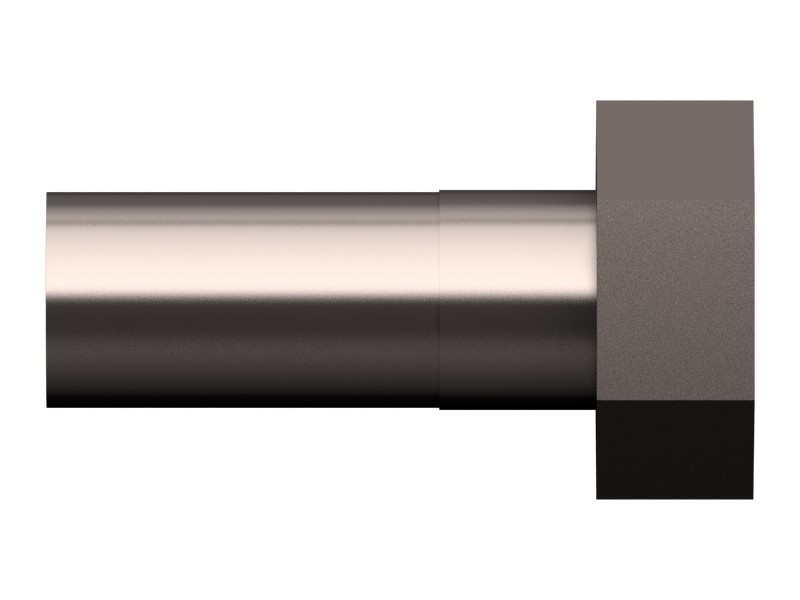

136-2401 Track Bolt
Cat® Track Bolt is a fastener used to secure the track to the undercarriage frame, ensuring stability and smooth movement.
Description
Track bolts are used to secure track shoes to the link assembly.
Specifications
| Thread Size (Diameter × Pitch) | M14 × 1.50 mm |
|---|---|
| Bolt Size | M14 mm (0.5511 in) |
| Thread Size | M14 mm (0 in) |
| Class or Grade | Cat/ISO 898-1 Class 11.9 |
| Coating | Oil with Corrosion Inhibitor |
| Thread Direction | RH |
| Material | Boron Steel |
| Locking Feature | None |
| Bolt Length | 35 mm (1.378 in) |
| Bolt Type | Track Bolt |
| Handle Length | 13 mm (0.512 in) |
Compatible Equipment
- Mini Excavators: 307, 308, 307D, 307B, 307C, 308E2, 307E2, 308.5
- Excavators: 307E, 308E, 307.5, 308D
