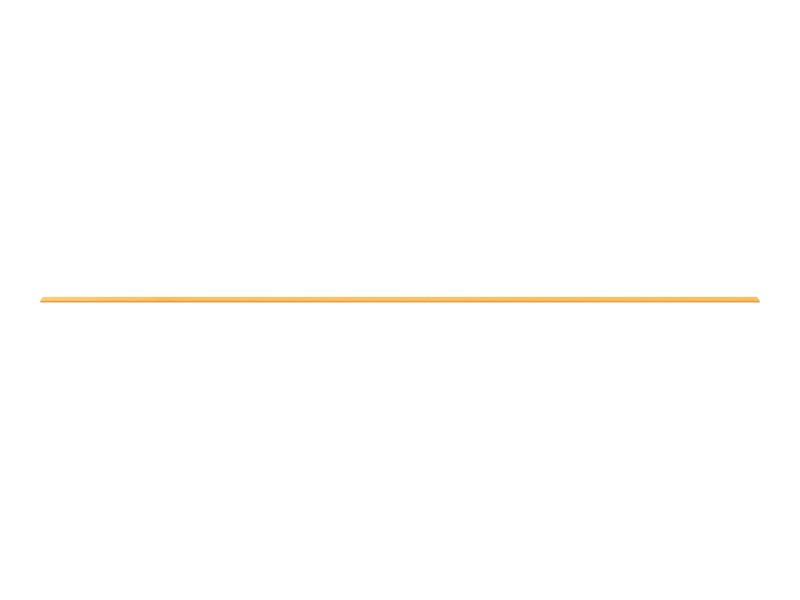

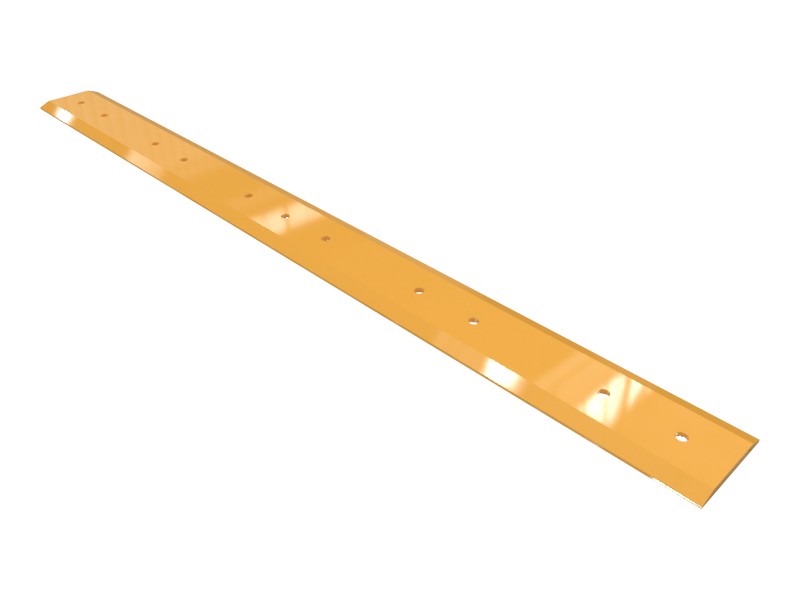

135-9396 Bucket Cutting Edge
16 mm x 1893 mm Cutting Edge
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Cat® bolt-on cutting edges offer unmatched manufacturing precision to protect the bucket edge from damage. Our ground engaging tools (G.E.T) are designed around the inherent characteristics of your Cat equipment to deliver consistent, superior protection.
Cat bolt-on cutting edges offer moderate impact resistance and can be used in a wide variety of applications, greatly increasing equipment versatility. They reduce the time needed to replace cutting edges, increase bucket capacity, and reduce downtime by maintaining long wear life.
Our cutting edges are durable and cast from steel that holds its hardness and offers long wear life, so your machine delivers the performance you need. Always choose Genuine Cat bucket protection to protect your investment.
Features
- Low to moderate impact
- Maintains a smooth ground surface
Applications
- Stockpiling, rehandling, digging, and stockpile loading
Specifications
| Machine Model | Mini Excavators, Skid Steer Loaders |
|---|---|
| Width | 16 mm (6.496 in) |
| Height | 165 mm (6.5 in) |
| Material | Boron Steel |
| Length | 1893 mm (74.53 in) |
| End 1 Shape | Straight |
| Cutting Edge Shape | Continuous |
| End 1 Hole Offset | 75 mm (2.953 in) |
| Number of Holes | 11 |
| End 2 Shape | Straight |
| Attachment Method | Bolt-On |
| End 1 Hole Spacing | 124.5 mm (4.902 in) |
| Thickness | 16 mm (0.63 in) |
| Hole Spacing | 124.5 mm (4.902 in) |
| Cutting Edge Length | 1893 mm (74.528 in) |
| End 2 Hole Spacing | 124.5 mm (4.902 in) |
| End 2 Hole Offset | 75 mm (2.953 in) |
| Hole Size | M16 Machine Screw |
| Position | Center |
| Wear or Durability | Standard |
Additional information
| Part Source | Genuine OEM |
|---|
