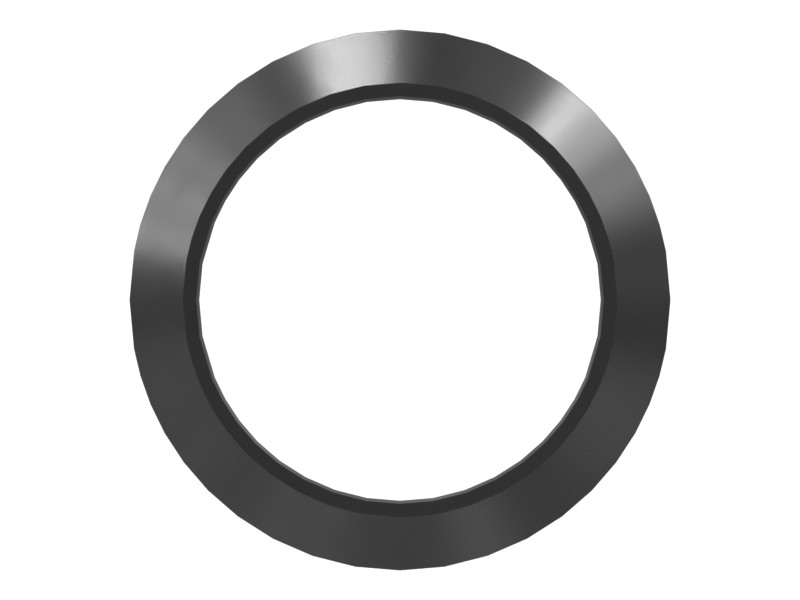

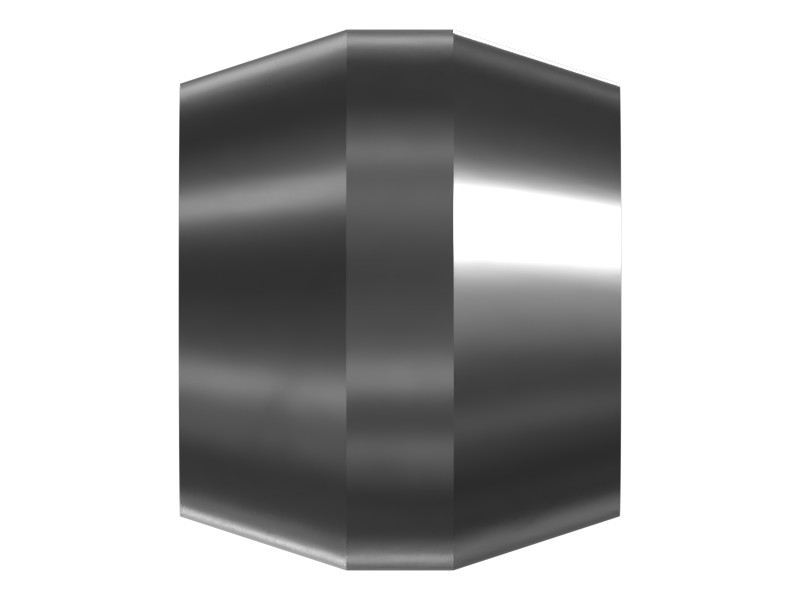

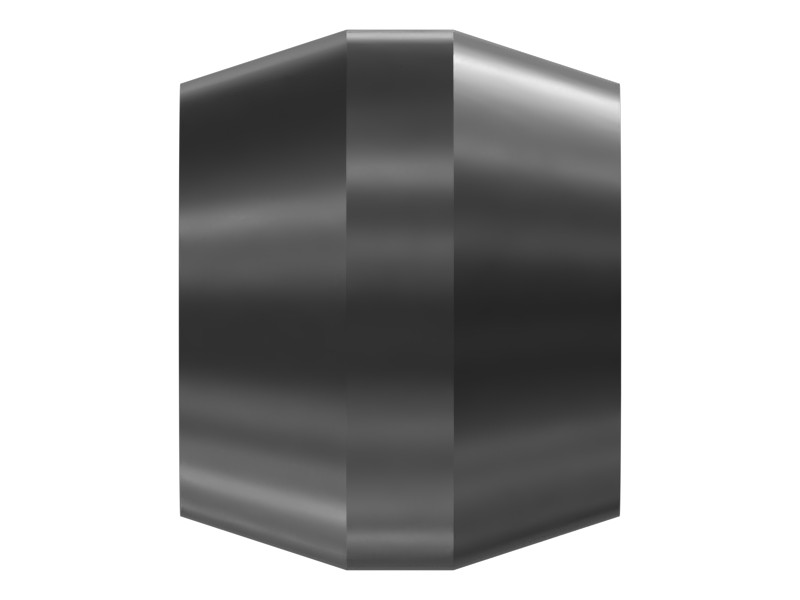

135-2443 6 mm ID Ring
Cat® 6 mm ID Ring Located Between Fitting and Lubricant Distribution Valve
Description
The single-section gear pump in the powertrain is used to deliver fluids such as transmission oil. The pump consists of a set of interlocking gears mounted in the pump body and driven by the engine or an electric motor. As the gears rotate, they create a vacuum that draws oil from the oil reservoir. The oil is then pressurized and directed to the transmission gears.
Attributes
- Sealed to prevent external contamination
- Provides smooth, continuous flow without pulsation
- Built to exact specifications for durability and reliability
Applications
The single-section gear pump in the powertrain is used to deliver a constant flow of hydraulic oil and ensure consistent system performance in the powertrain.
Specifications
| Overall Length | 6.5 mm (0.256 in) |
|---|---|
| Ferrule Outside Diameter | 8 mm (0.315 in) |
| Ferrule Inside Diameter | 6 mm (0.236 in) |
| Unique Features | No |
| Cross Hole | No |
Compatible Equipment
- Wheel Excavators: M315D2, M317D2, M320D2, M315D, M315, M313D, M322D, M320
- Excavators: M325D L MH
- Wheel Loaders: M314
