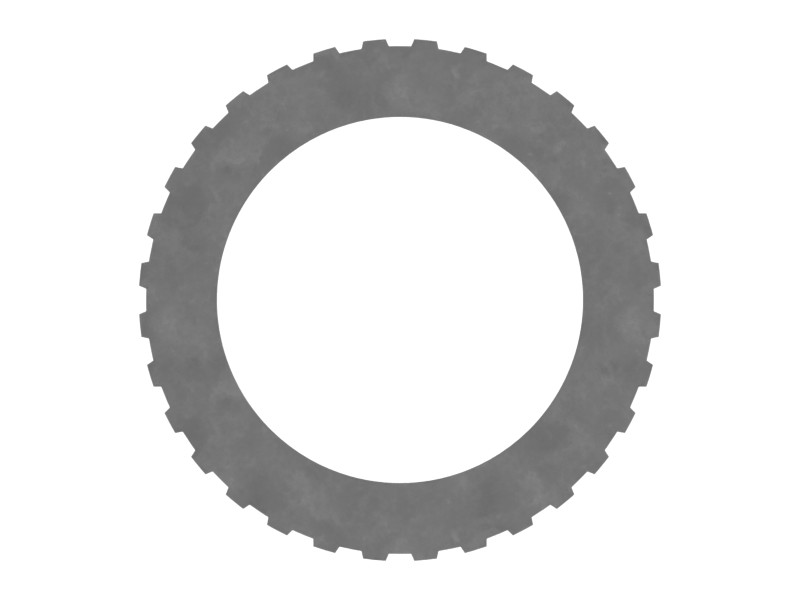

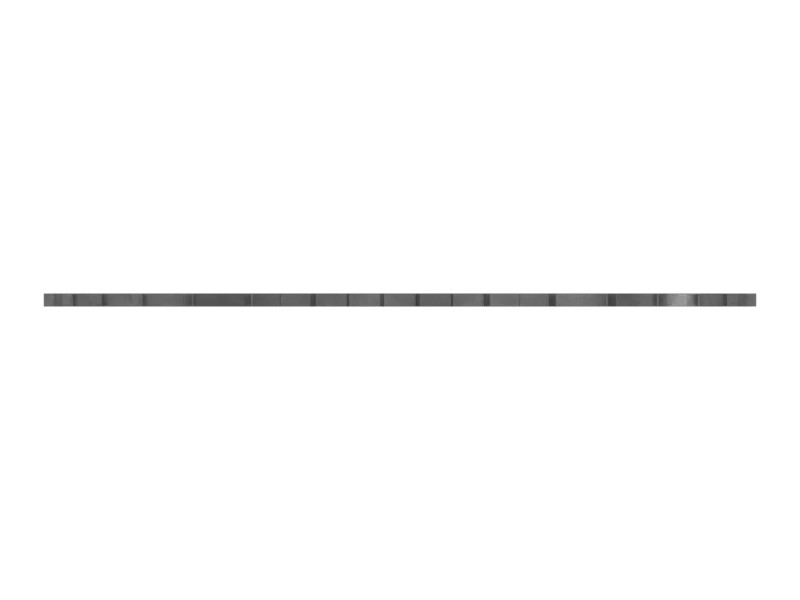

134-8361 32-Tooth Clutch Plate
Cat® 4 mm Thick Transmission Planetary Clutch Plate for smooth shifting through engagement of the planetary gear set.
Description
Cat power train components must withstand extremely high torque, high shock loads and frequent directional shifts. Cat designs and manufactures transmission and final drive components with these demands in mind, ultimately improving power train durability and performance over the life of the machine.
Features
- Hardened steel reduces spline wear.
- (32)-tooth external spline ensures an accurate OEM fit.
Applications
Cat clutch plates are used in planetary assemblies to transmit engine power to the powertrain. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Inside Diameter | 158 mm (6.220 in) |
|---|---|
| Approximate Weight | 0.49 kg (1.08 lb) |
| Outside Diameter | 225 mm (8.86 in) |
| Thickness | 4 mm (0.157 in) |
| Material Description | Steel |
| Number of Teeth | 32.00 |
| Overall Width | 4 mm (0.16 in) |
Compatible Equipment
- Off-Highway Trucks: 735, 730, 725, 725C2
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
