Description

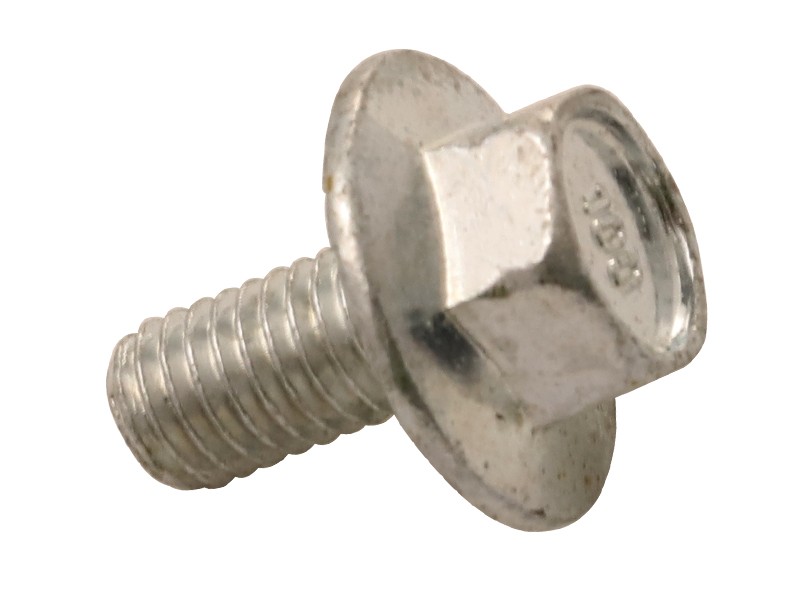

Flange bolts get their name from the round flange designed to sit directly beneath their head. These flanges distribute the load evenly among the different joints of the structure they fasten, but remember to fasten all joints with flange bolts of the same size. This ensures that the structure being built is flawlessly designed, with maximum load-bearing capacity.
Attributes
● The flange provides strength for the bolt.
● Maximum load-carrying capacity.
Applications
Bolts form a high-performance system with matching hardened washers and nuts that produces consistently high clamp force.
Specifications
| Thread | Rough Milled |
|---|---|
| Thread Size (in – TPI) | M5-0.8 in |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | M5x0.8 mm |
| Thread Size | M5 mm (0 in) |
| Locking Feature | None |
| Bolt Length | 10 mm (2/5 in) |
| Bolt Type | Hex Flange Head |
| Handle Length | 2.4 mm (0.09 in) |
Compatible Equipment
- Track Loaders: 990K, 994K
- Wheel Excavators: MD6310, MD6250, MD6200
- Mini Excavators: 308, 307B, 303.5E, 307D, 305E2, 305.5E, 308E2, 307C, 303.5C, 307E2, 308.5, 303.5D, 310, 307, 305.5E2, 302CR, 301.7CR, 301.5, 305.5 GC, 306.5, 306
- Excavators: 330D L, 305E2 CR, 349F L, 320E, 301.8, 330 L, 336E, 320D L, 311B, 323, 329E L, 320D2 L, 330D, 325B, 320, 330B, 315F LCR, 325D L, 336D L, 320B, 336E L, 324D L, 312E, 301.6, 385C, 365B, 365C, 385C L, 349D L, 345D L, 390F, 385B, 345C, 345D, 6020B, 352F, 345B, 374F L, 345C L, 365C L, 390D, 349E L, 349E L VG, 365B L, 6030, 326, 325B L, 329E, 311C, 303C CR, 305C CR, 306E2, 303.5E2 CR, 336D, 308E, 307E, 305, 320D2, 390F L, 320D, 307.5, 374F, 349D2 L, 390D L, 374D L, 349D2, 349D
Additional information
| Machine Model | 301.5, 301.6, 301.7CR, 301.8, 302CR, 303.5C, 303.5D, 303.5E, 303.5E2 CR, 303C CR, 305, 305.5 GC, 305.5E, 305.5E2, 305C CR, 305E2, 305E2 CR, 306, 306.5, 306E2, 307, 307.5, 307B, 307C, 307D, 307E, 307E2, 308, 308.5, 308E, 308E2, 310, 311B, 311C, 312E, 315F LCR, 320, 320B, 320D, 320D L, 320D2, 320D2 L, 320E, 323, 324D L, 325B, 325B L, 325D L, 326, 329E, 329E L, 330 L, 330B, 330D, 330D L, 336D, 336D L, 336E, 336E L, 345B, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 349E L, 349E L VG, 349F L, 352F, 365B, 365B L, 365C, 365C L, 374D L, 374F, 374F L, 385B, 385C, 385C L, 390D, 390D L, 390F, 390F L, 6020B, 6030, 990K, 994K, MD6200, MD6250, MD6310 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Track Loaders |
| Part Source | Genuine OEM |
