Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.

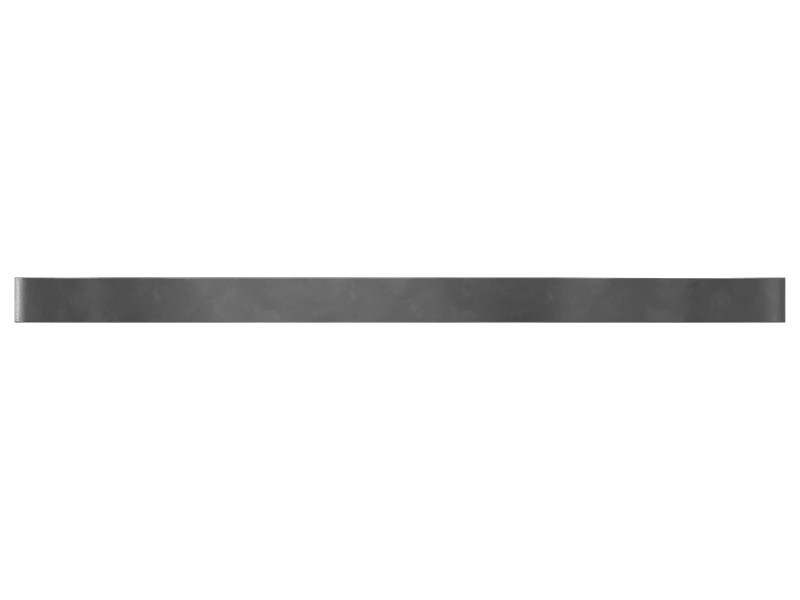

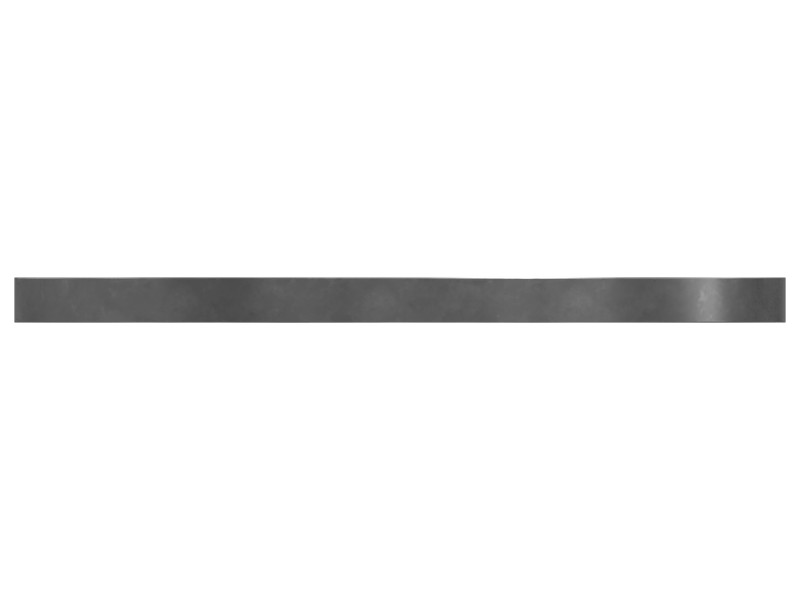

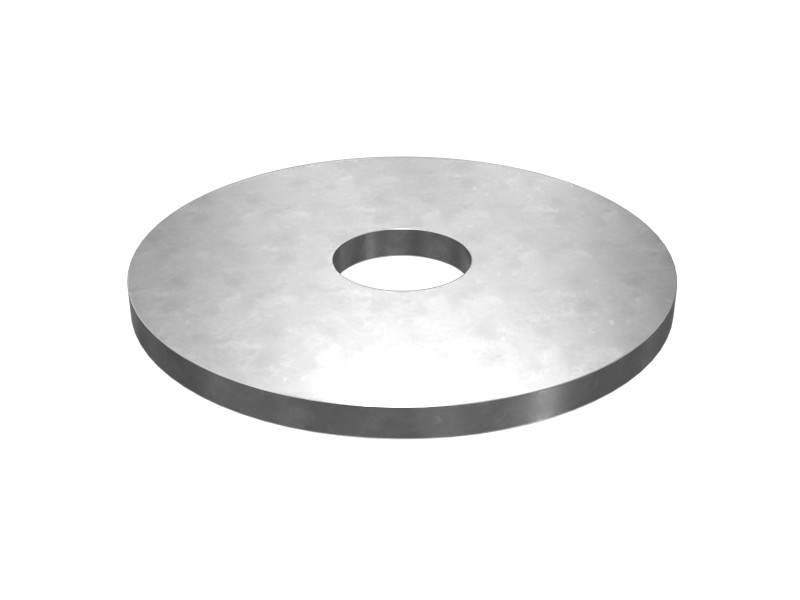

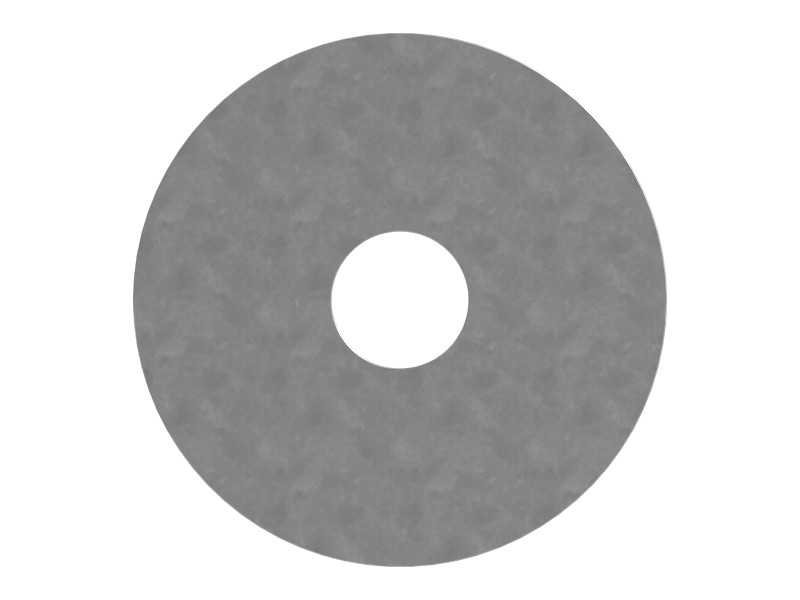

Specifications
| Inside Diameter | 10.2 mm (0.402 in) |
|---|---|
| Gasket Type | Flat Washer |
| Outside Diameter | 39.6 mm (1.559 in) |
| Coating | Zinc plating provides low to moderate corrosion protection and electrical conductivity. Salt spray resistance: 96 hours with no white rust. Coating color – silver. |
| Thickness | 2.3 mm (0.091 in) |
| Fits Bolt Size | M10 mm (3/8 in) |
| Material | Alloy Zinc |
Compatible Equipment
- Generator Sets: 3516C, G3516, 3512B, 3512E, C9
- Compactors: CB-434D, C-9
- Engines: C15, C11, C7, C13, C18, C175-16
- Mini Excavators: 306, 310, 307, 305.5 GC, 308, 307E2, 306.5, 305.5E, 308.5, 305.5E2, 308E2
- Excavators: 313, 313 GC, 3516E, 3512C, 323 GX, 305 CR, 315 GC, 325, 323, M325D L MH, 313D2, 365C, 329D L, 320 GX, 324D, 318D2 L, 312D2 L, 326D L, 313F LGC, 324D L, 330D2, 312D2 GC, 313D2 GC, 318D2, 312D2, 325D L, 328D LCR, 330D2 L, 325D, 313D2-GC, 345D, 349D L, 385B, 385C, 385C L, 345C L, 345D L, 345C, 390D, 365C L, 320 GC, 320, 312 GC, 330 GC, 315, 385C FS, 333, 330GC, 326, 323GC, 305, 330, 329D, 326D2, 326D2 L, 329D2 L, 308E, 329D2, 306E2, 307E, 307.5, 349D2, 374D L, 349D, 349D2 L, 390D L
- Skid Steer Loaders: 3126B, 313D2 LGP
Additional information
| Machine Model | 305, 305 CR, 305.5 GC, 305.5E, 305.5E2, 306, 306.5, 306E2, 307, 307.5, 307E, 307E2, 308, 308.5, 308E, 308E2, 310, 312 GC, 3126B, 312D2, 312D2 GC, 312D2 L, 313, 313 GC, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 313F LGC, 315, 315 GC, 318D2, 318D2 L, 320, 320 GC, 320 GX, 323, 323 GX, 323GC, 324D, 324D L, 325, 325D, 325D L, 326, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 330, 330 GC, 330D2, 330D2 L, 330GC, 333, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 3512B, 3512C, 3512E, 3516C, 3516E, 365C, 365C L, 374D L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, C-9, C11, C13, C15, C175-16, C18, C7, C9, CB-434D, G3516, M325D L MH |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Skid Steer Loaders, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
