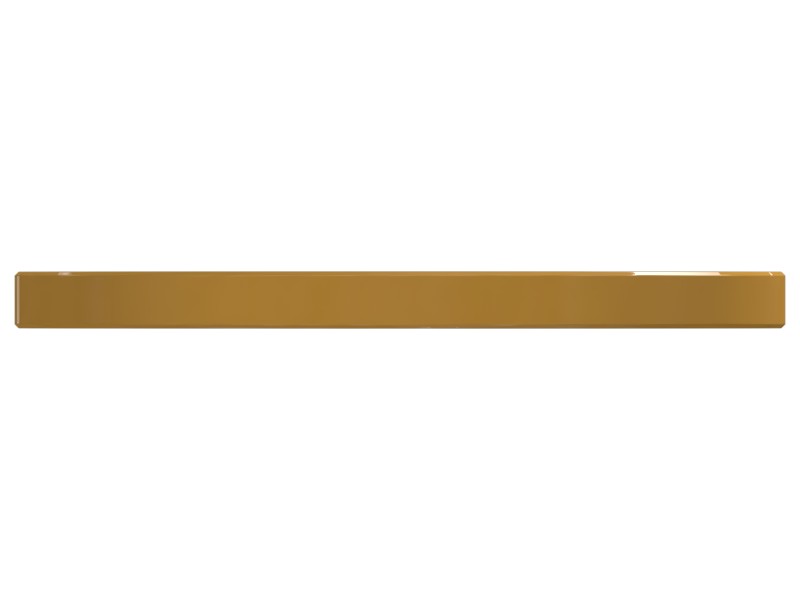

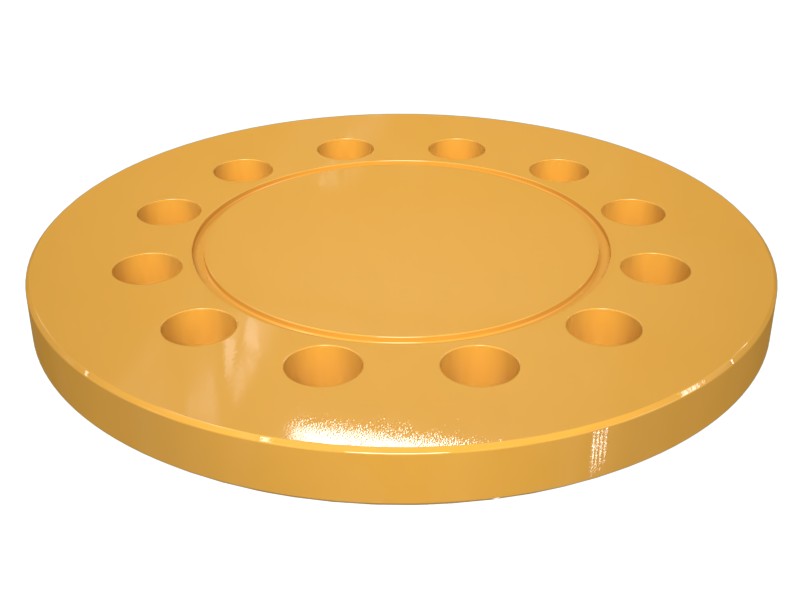

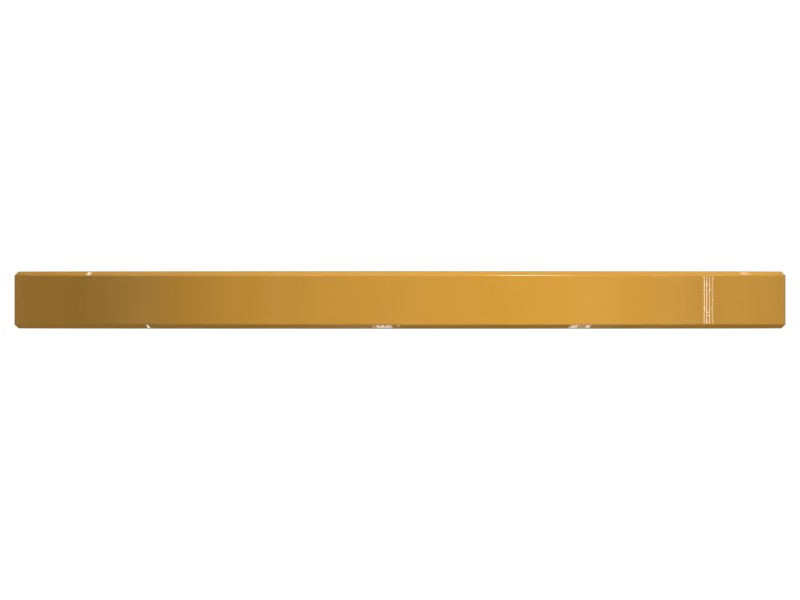

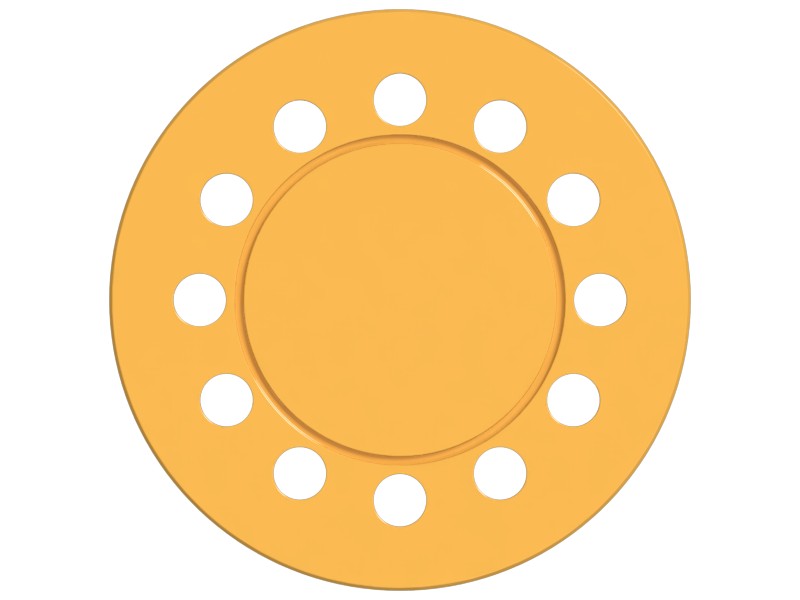

134-2203 22 mm Thick Pivot Thrust Plate
Cat® 22 mm Thick Steel Pivot Thrust Plate for Telescopic Cushion Frames
Description
The pivot thrust washer is specially designed to withstand rotational thrust loads and provide support for a pivot or spindle. It is a flat plate with a round hole in the center that allows the pivot to pass through. The pivot thrust washer is located between a rotating component (such as a gear or drum) and the thrust washer mounted with the housing.
Features
- Comes with 12 mounting holes for use with 1 fasteners
- Made of steel for high strength and stiffness
- Hardened for improved strength and reliability
Applications
The pivot thrust washer is used to distribute the load from the pivot used in the telescoping bumper frame.
Specifications
| Inside Diameter | 171 mm (6.75 in) |
|---|---|
| Outside Diameter | 301 mm (11.85 in) |
| Overall Length | 25.83 in |
| Hole Size | 28 (12X) mm (1.08 (12X) in) |
| Thickness | 22 mm (0.87 in) |
| Width | 1.18 in |
Compatible Equipment
- Dozers: D11T, D11R, D11
