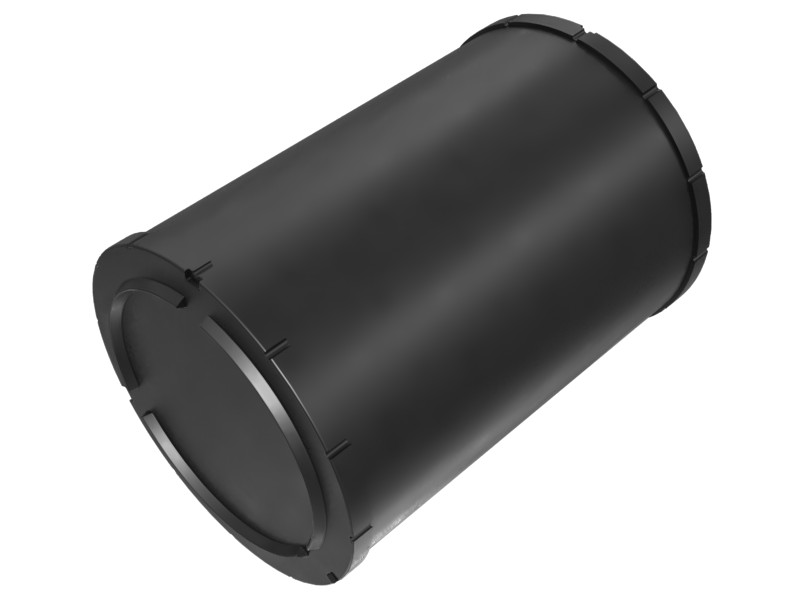

Description
Choosing Genuine Cat® filters to protect your revenue-generating equipment is always worth it. Cat Ultra High Efficiency (UHE) engine air filters are designed to meet the demand for higher levels of filtration and dirt-holding capacity. Cat UHE filter specifications are engineered for improved initial and overall efficiency to better protect your engine. UHE filter elements feature a unique filtration surface that extends filter life up to six times that of standard filters and reduces the amount of contaminants entering the engine, increasing uptime and extending machine life. These air filters are designed for Cat equipment and are effective in any work environment, and are highly recommended where airborne contaminants contain a high percentage of very fine dust or soot. Fine particles immediately cake on the filtration surface, increasing filtration capacity and quickly protecting critical component systems. Choose Cat engine air filters to protect your equipment, the environment and your bottom line. Features: • Up to 6 times longer service life than standard filters • Highly effective against fine dust and soot • Reduced restriction and increased airflow help the engine "breathe" better
Specifications
| Efficiency Rating | Ultra High Efficiency |
|---|---|
| Primary and Secondary | Primary |
| Seal Type | Radial Seal |
| Type | Primary |
| Overall Depth | 330.2 mm (13 in) |
| Overall Width | 237 mm (9.331 in) |
| Overall Height | 237 mm (9.331 in) |
| Depth | 330.2 mm (13 in) |
| Media Type | UHE |
| Shape | 0 |
| Height | 237 mm (9.331 in) |
| Width | 237 mm (9.331 in) |
Compatible Equipment
- Excavators: 323D L, 320C, 320D RR, 320D FM, 320D3 GC, 320D L, 320D3, 320D2 GC, 320E, 320D GC, 320D2 L, 320C L, 323D2 L, 323D, 320D, 320D2
