Description
Cat receptacle group connectors secure wiring connections based on pin count and locking mechanism.
Features

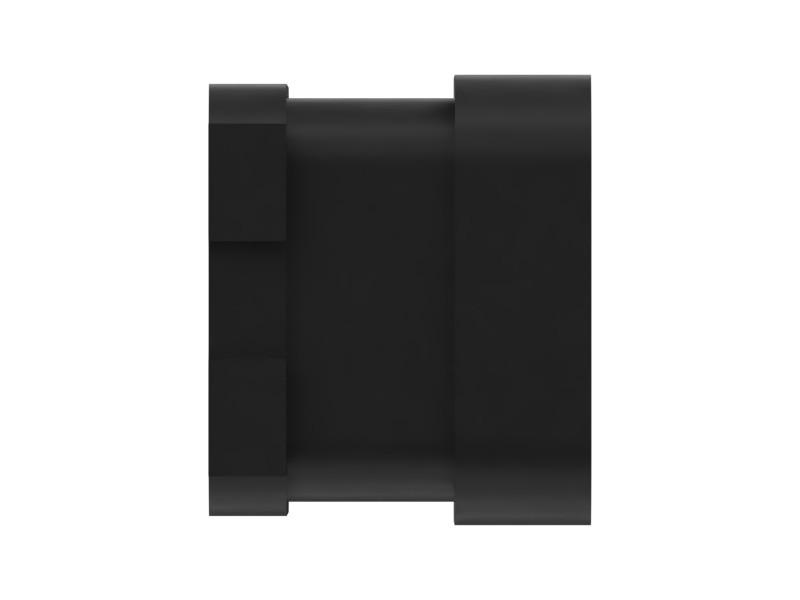

- 70-pin polyphenylene sulfide (PPS) receptacle connector
- Equipped with a dust cover
Applications
Receptacle group connectors serve as electrical connectors in wiring harnesses. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Polyphenylene sulfide Plastic |
|---|---|
| Overall Width | 48 mm (1.9 in) |
| Pin | 70 |
| Overall Length | 85.1 mm (3.4 in) |
| Overall Height | 40.7 mm (1.6 in) |
| Material Description | Polyphenylene Sulfide (PPS) |
| Connector Type | Pin |
Compatible Equipment
- Generator Sets: 3512E, 3516C, 3512B, C9
- Track Loaders: 993, 990K, 994K
- Wheel Excavators: MD6250, MD6310
- Engines: C27, C32, C7, C175-16
- Excavators: 3516B, 3508B, 3512C, 365B, 3516E, 365B L
- Wheel Loaders: 992K
- Off-Highway Trucks: 797F, 798 AC, 796 AC, 794 AC, 772G, 770G
Additional information
| Machine Model | 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 365B, 365B L, 770G, 772G, 794 AC, 796 AC, 797F, 798 AC, 990K, 992K, 993, 994K, C175-16, C27, C32, C7, C9, MD6250, MD6310 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Off-Highway Trucks, Engines, Generator Sets |
| Part Source | Genuine OEM |
