Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications

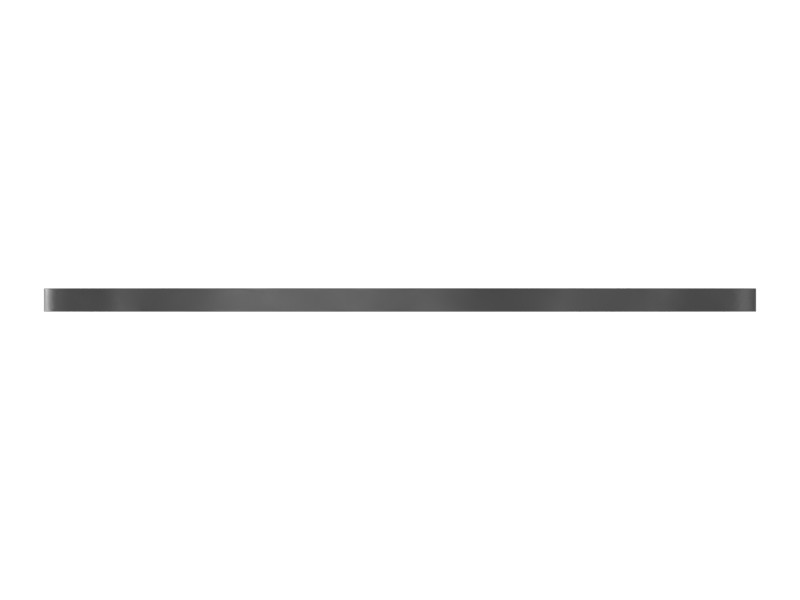

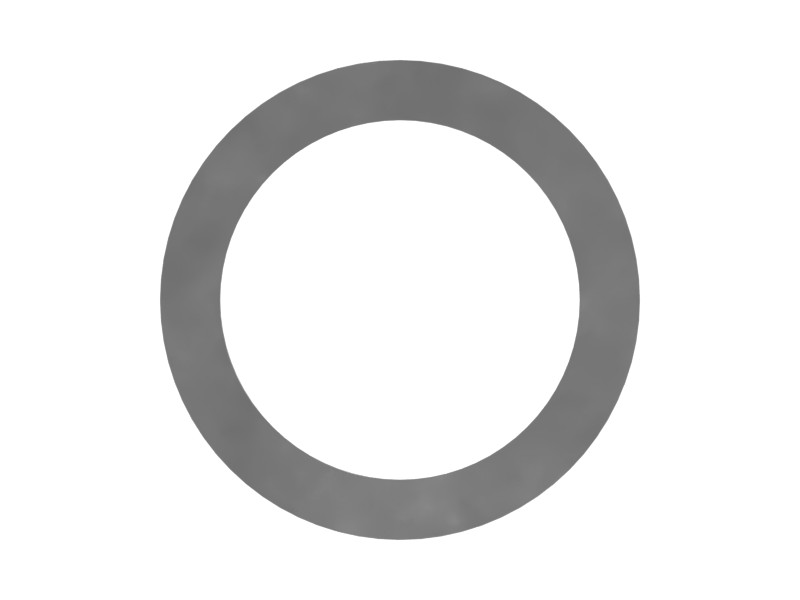

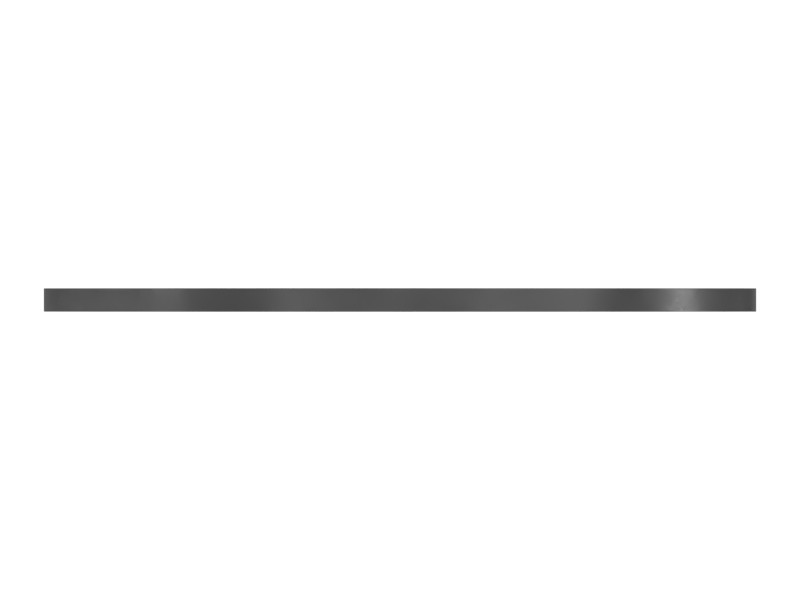

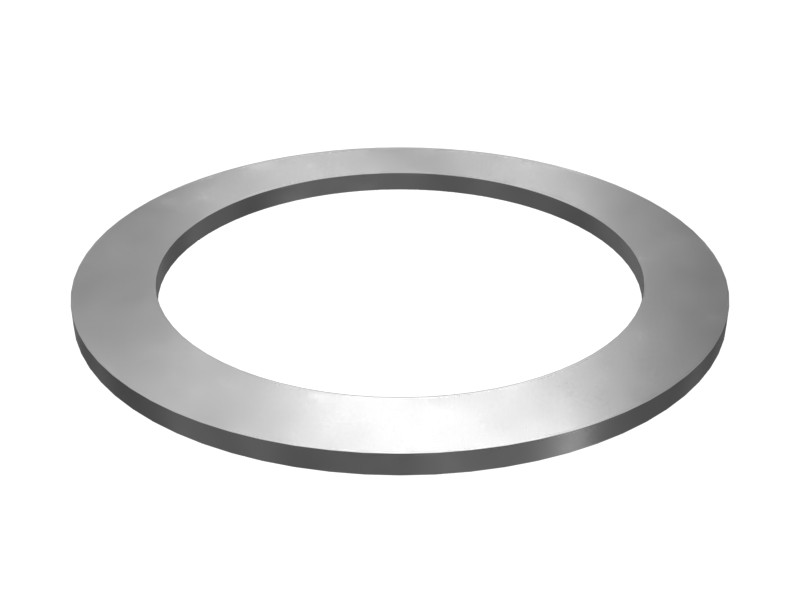

| Gasket Type | Flat Washer |
|---|---|
| Outside Diameter | 28.1 mm (1.106 in) |
| Inside Diameter | 21.1 mm (0.831 in) |
| Thickness | 0.9 mm (0.035 in) |
| Coating | None |
| Fits Bolt Size | M20 mm |
| Material | Stainless Steel |
Compatible Equipment
- Generator Sets: 3516C, G3516C, 3512B, G3516, C4.4
- Track Loaders: 995, 994K
- Engines: C32
- Compactors: CB10
- Dozers: D10R, D11N, D10N, D11R, D7R II, D9N, D9R, D9L, D8L
- Excavators: 329D L, 336E L, 330 GC, 3512C, 3516B, 3516E, 324D L, 336F L, 328D LCR, 320D RR, 320D L, 329E L, 323D2 L, 336D L, 336E, 320D2 L, 320D2 GC, 335F LCR, 320E, 323D, 323D L, 324D, 320D GC, 329E, 330GC, 323, 320 GC, 637E, 637G, 3508B, 345B, 326, 325, 336E LH, 320D, 329D, 330, 320D2, 336D, 329D2 L, 329D2, 326D2 L
- Wheel Loaders: 836, 992C, 992D, 988F
- Off-Highway Trucks: 785D, 785, 777D, 773E, 771D, 777, 789, 773D, 793D
Additional information
| Machine Model | 320 GC, 320D, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323D, 323D L, 323D2 L, 324D, 324D L, 325, 326, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330GC, 335F LCR, 336D, 336D L, 336E, 336E L, 336E LH, 336F L, 345B, 3508B, 3512B, 3512C, 3516B, 3516C, 3516E, 637E, 637G, 771D, 773D, 773E, 777, 777D, 785, 785D, 789, 793D, 836, 988F, 992C, 992D, 994K, 995, C32, C4.4, CB10, D10N, D10R, D11N, D11R, D7R II, D8L, D9L, D9N, D9R, G3516, G3516C |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
