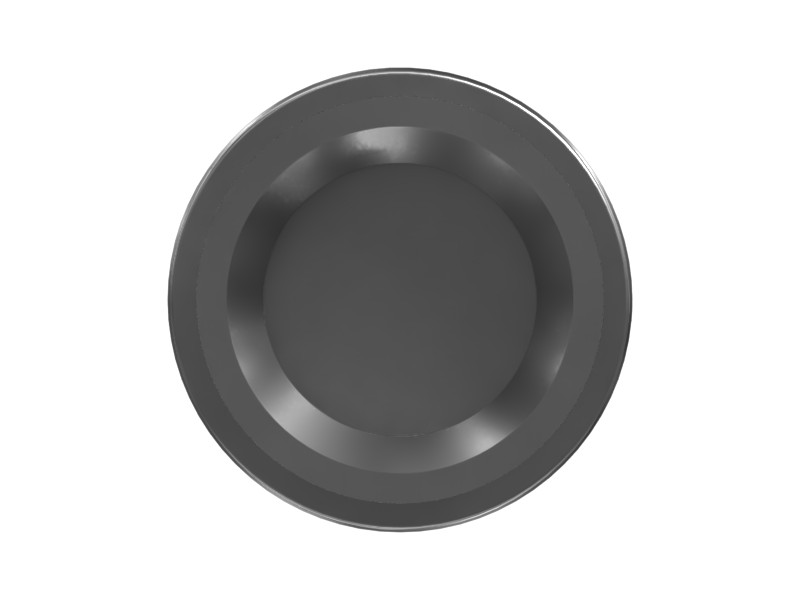

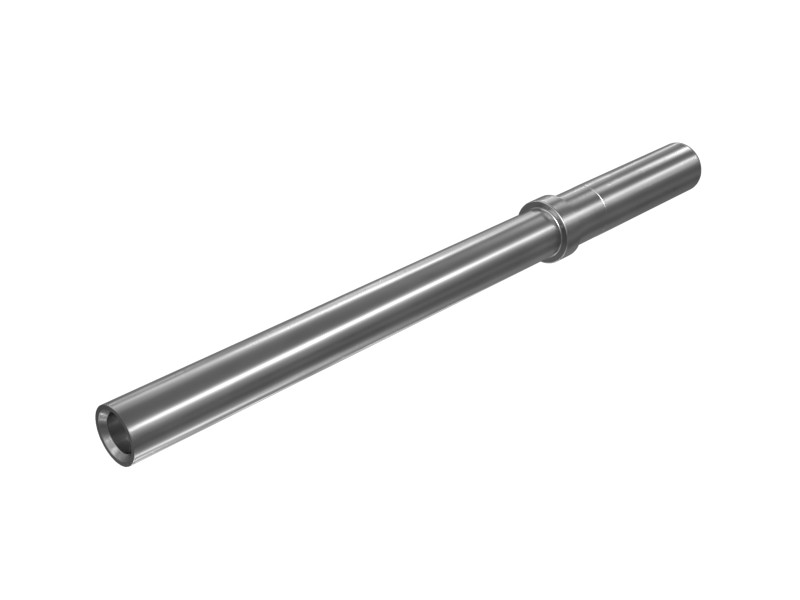

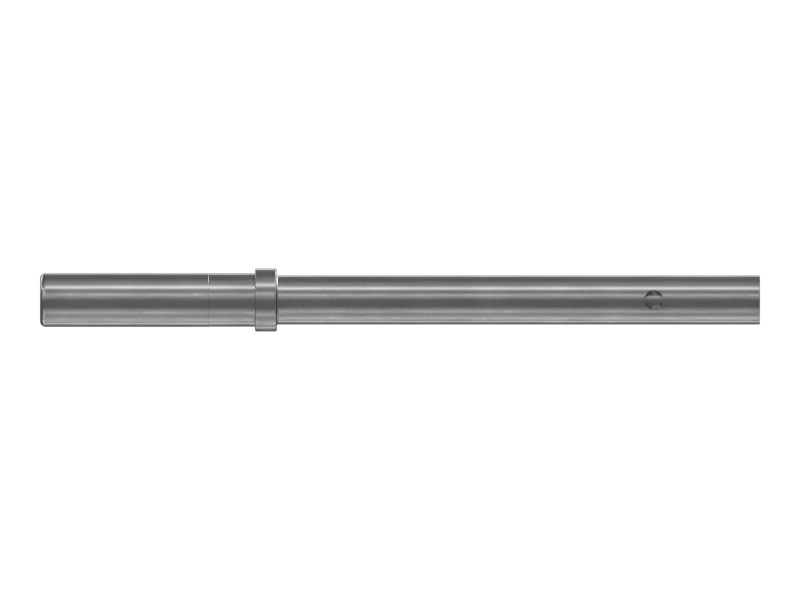

133-0969 Connector Receptacle
Cat® 38.1 mm Long Engine Wiring Harness Connector Receptacle for proper communication and power distribution
Description
Cat connector receptacles are used in electrical connectors. Cat terminal pins are inserted into the Cat terminal sockets on the mating connector to establish an electrical connection.
Features
- 16-18 AWG
- Gold plating ensures excellent conductivity
- Up to 13 Amp current
- Easy to connect and disconnect
Applications
Cat receptacle connectors provide a reliable mating connection between wires or between a wire and equipment.
Specifications
| Material | Alloy Brass |
|---|---|
| Diameter | 3.3 mm (0.13 in) |
| Length | 38 mm (1.5 in) |
| Gauge | 16-18 AWG |
Compatible Equipment
- Generator Sets: 3516C, C9, C3.3DE33E0, 3406B, 3512B, 3512E, 3406C, C4.4, G3516, G3516C
- Track Loaders: 990K
- Cold Planers: TH55-E70
- Compactors: C9.3B, C13B, C-9, C-15
- Engines: C11, C32, C13, C7, C27, C15, C12, C18, C175-16
- Excavators: 3126, 3508B, 3512C, 3516E, 6040, 3516B, 6030
- Skid Steer Loaders: 3126B
- Motor Graders: 12K, 160K, 140K
- Dozers: D11T, D6T, D7R II, D10N, D10R
- Wheel Loaders: 924HZ, 924K, 990H
- Off-Highway Trucks: 793F, 794 AC, 797F, 796 AC, 773F, 785D, 777D, 798 AC, 793D, 789D, 793
Additional information
| Machine Model | 12K, 140K, 160K, 3126, 3126B, 3406B, 3406C, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 6030, 6040, 773F, 777D, 785D, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 924HZ, 924K, 990H, 990K, C-15, C-9, C11, C12, C13, C13B, C15, C175-16, C18, C27, C3.3DE33E0, C32, C4.4, C7, C9, C9.3B, D10N, D10R, D11T, D6T, D7R II, G3516, G3516C, TH55-E70 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
