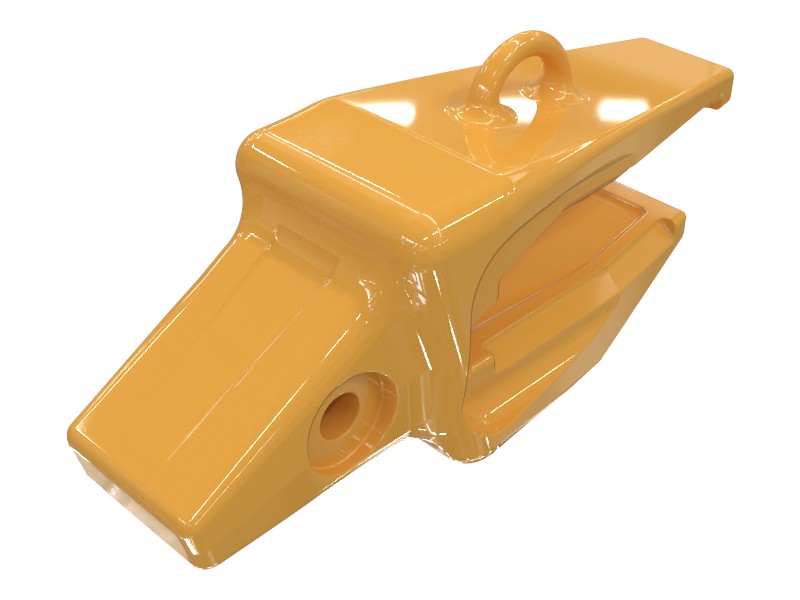

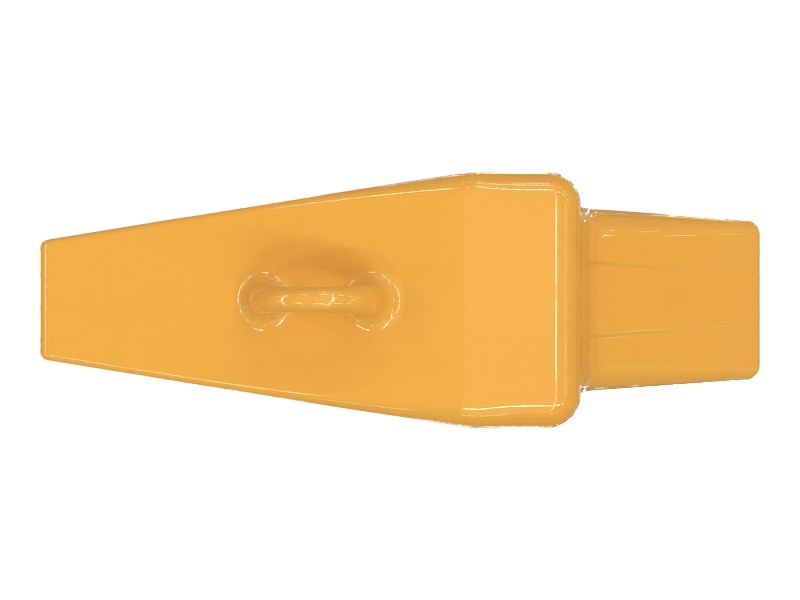

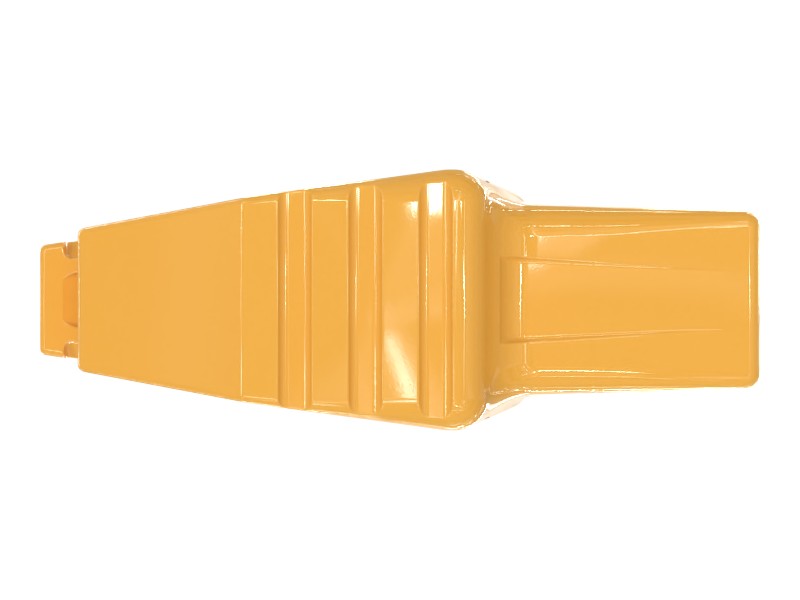

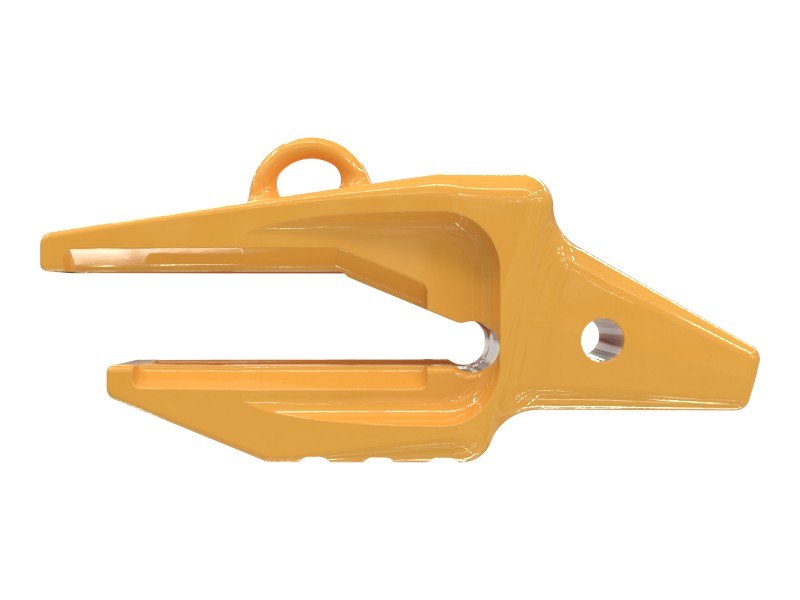

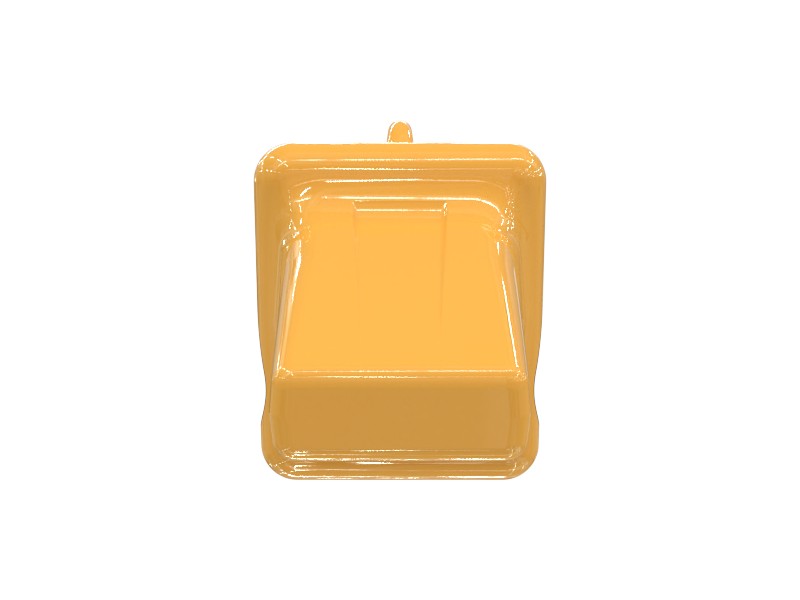

133-0704 Center Two-Strap Adapter
J700 Center Two-Strap Adapter
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Cat® J Series adapters feature unmatched manufacturing precision to protect your machine's bucket from damage. Our Ground Engaging Tools (GET) are designed around the inherent characteristics of your Cat equipment to consistently deliver superior protection.
Cat® two-strap adapters have a lower profile than flush-mount adapters, producing greater penetration and higher productivity.
Adapters are tough and durable, cast from steel to maintain hardness and deliver long wear life so your machine provides the performance you need. Always choose genuine Cat ground engaging tools to protect your investment.
Features
- J700 center adapter for 70 mm cutting edge with 22.5 degree bevel angle
Applications
- Wheel Loader Buckets
Specifications
| Wear Material | A.R.M. Optional |
|---|---|
| Machine Model | Loader |
| Attachments | Weld-On |
| Type | Two Strap |
| Size | J700 |
| Attachment Method | Weld-On |
| Hole Spacing | 0 mm |
| Bevel Angle | 22.5 |
| Overall Length | 575 mm (22.638 in) |
| Number of Holes | 0 |
| Width | 190 mm (7.48 in) |
| Base Edge Thickness Grade | 70 |
| Bottom Bar Length | 310 mm (12.205 in) |
| Corner Stop Angle | 0 |
| Material | Low Alloy Steel |
| Adapter Size | J700 |
| Series | J Series |
| Wear or Durability | Standard |
Additional information
| Part Source | Genuine OEM |
|---|
