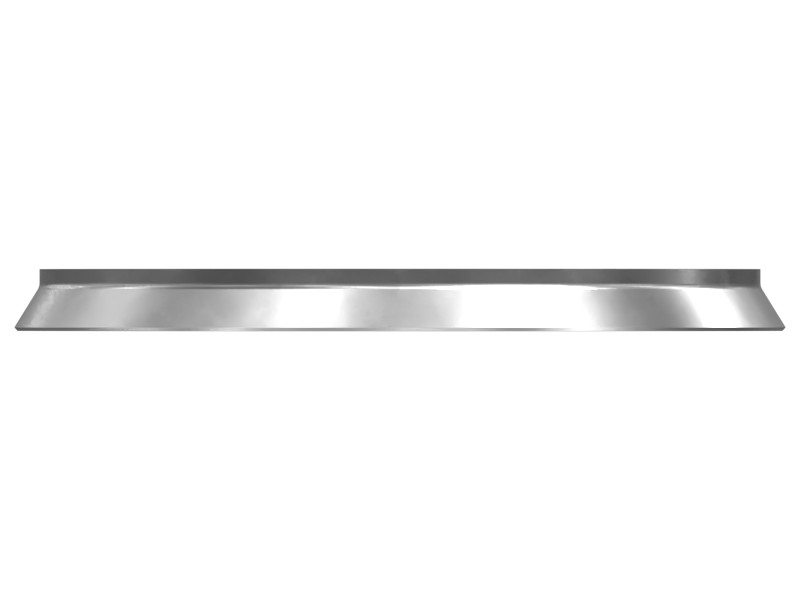

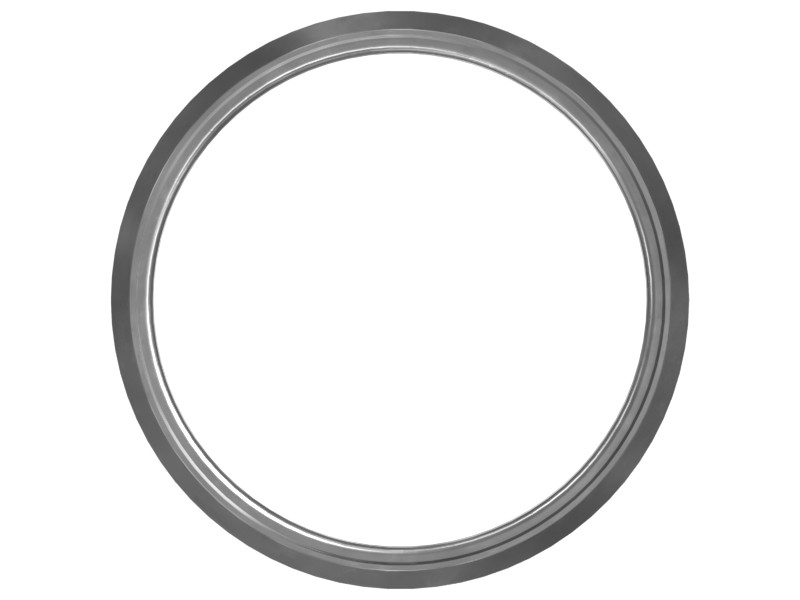

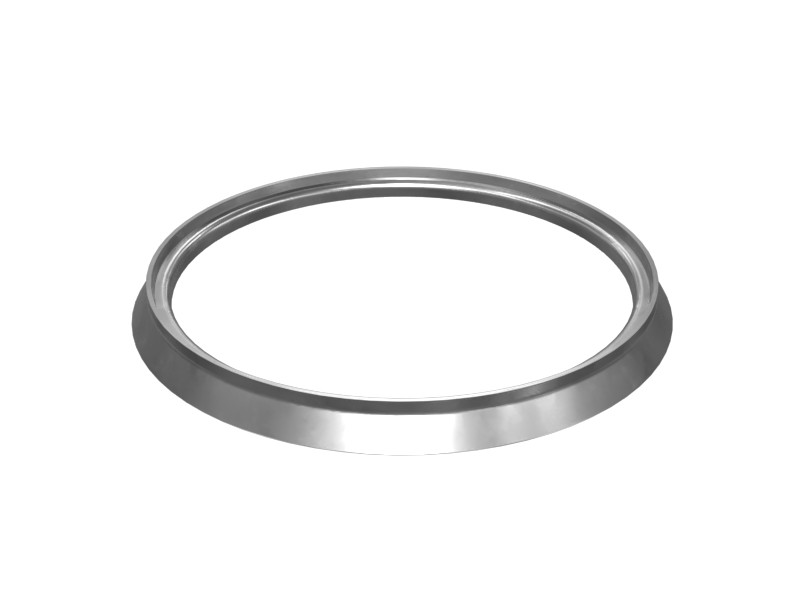

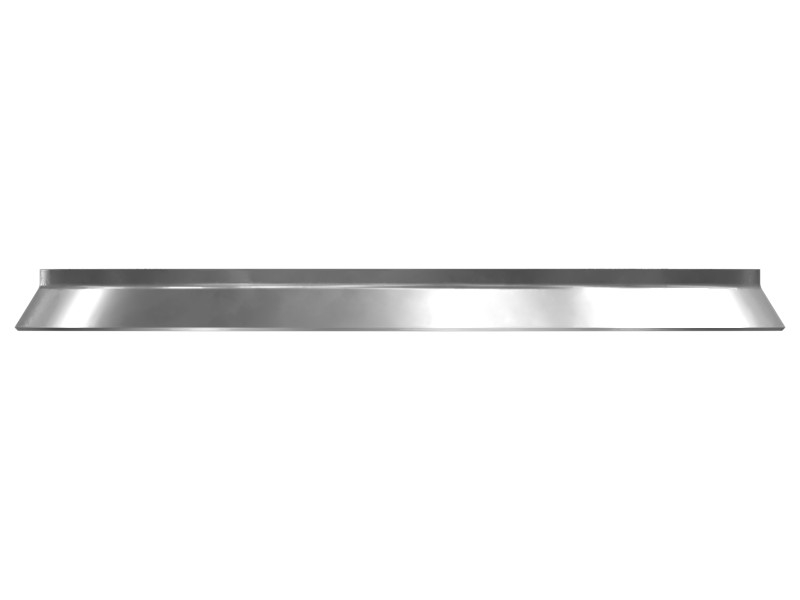

132-3071 101.875 mm ID V-Ring Seal
Cat® V-ring seal for alternator mounting ensures reliable alternator performance and long service life
Description
V-rings are designed specifically to exclude external contamination. They are typically designed as an integral part of a sealing system together with other seals, but can also be used alone to protect a cavity.
Features
Cat® V-ring seals are versatile and fit a wide range of shaft diameters.
Cat® sealing systems protect more expensive parts from leakage and contamination. Genuine Cat® seals protect your investment.
Applications
V-rings are used in a variety of rotating applications, including axles, motors and the operator environment.
Specifications
| Seal Type | V-Ring |
|---|---|
| Material | Carbon Steel |
| Shaft Diameter | 102.1 mm (4.02 in) |
| Outside Diameter | Not Specified mm (Not Specified in) |
| Overall Width | 9.5 mm (0.37 in) |
Compatible Equipment
- Generator Sets: 3512B, 3512E, 3516C
- Track Loaders: 995, 994K
- Excavators: 3512C, 3516B, 3516E, 3508B
- Off-Highway Trucks: 785D, 793D, 785, 789, 789D, 793
Additional information
| Machine Model | 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 785, 785D, 789, 789D, 793, 793D, 994K, 995 |
|---|---|
| Equipment Type | Excavators, Track Loaders, Off-Highway Trucks, Generator Sets |
| Part Source | Genuine OEM |
