Description

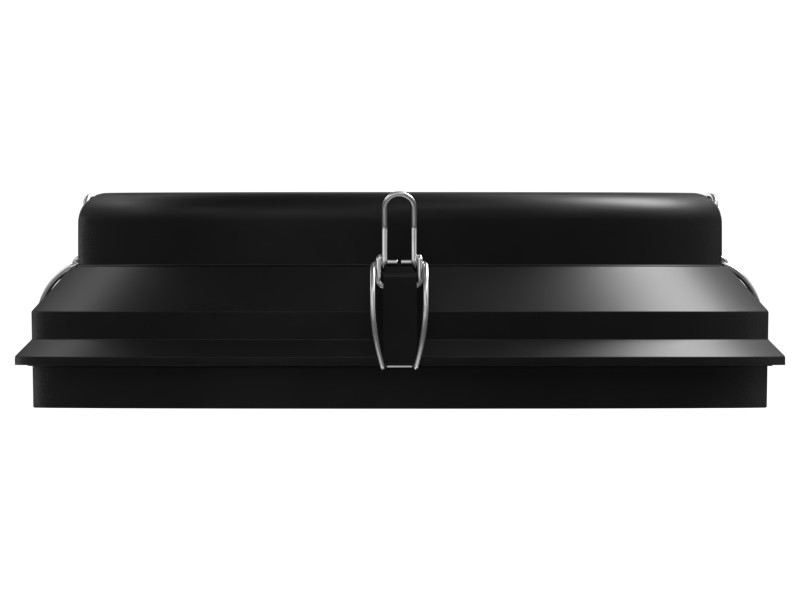

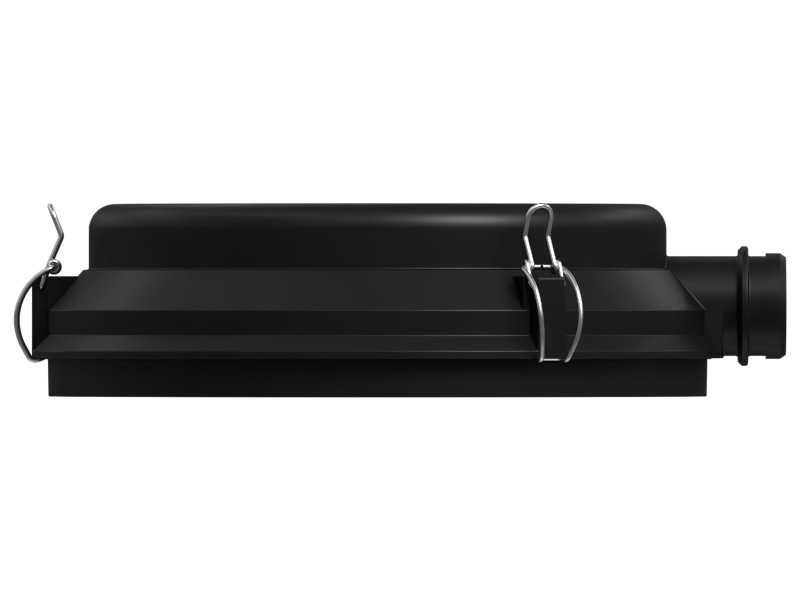

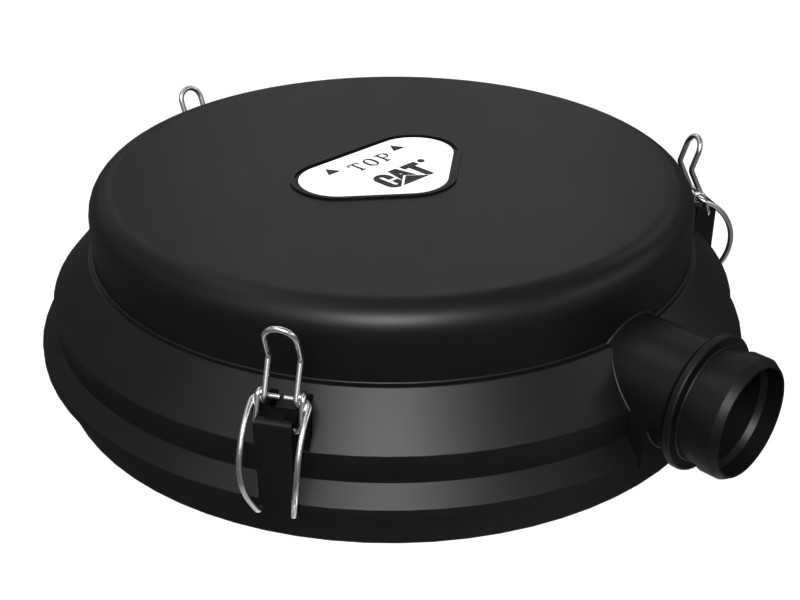

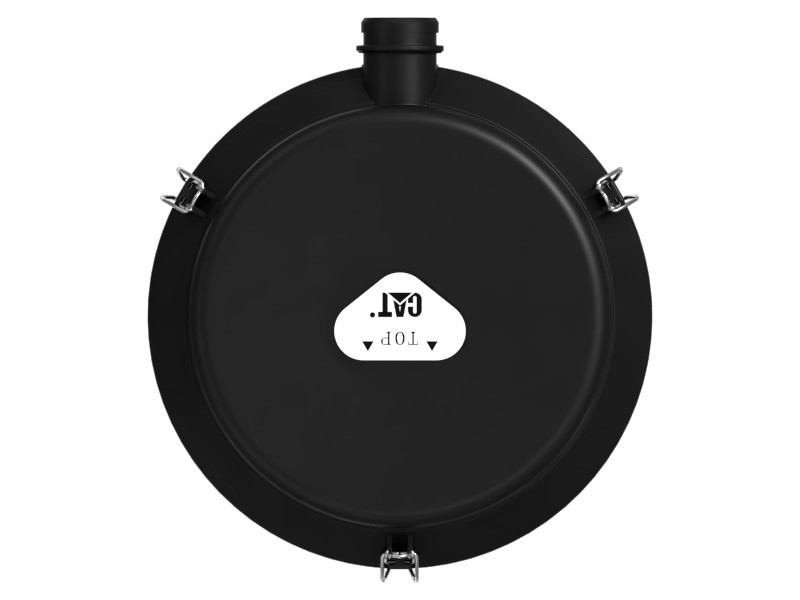

Cat Air Filter Covers enclose the air filter element that supplies clean air to the engine and lift off for access to the element.
Features
- Heavy-duty air filter cover
- Color: Black
- Cover Material: Polypropylene
- Outside diameter: 347 mm (13.66 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Outside Diameter | 347 mm (13.66 in) |
|---|---|
| Material Description | Polypropylene |
| Overall Depth | 96.5 mm (3.799 in) |
| Overall Width | 0 mm (0 in) |
| Overall Height | 378.5 mm (14.902 in) |
| Material | Polyolefin Plastic |
| Depth | 96.5 mm (3.799 in) |
| Number of Latches | 3 |
| Width | 347 mm (13.661 in) |
| Dust Tube | 50 mm (1.969 in) |
| Type | Round |
| Height | 97 mm (3.80 in) |
Compatible Equipment
- Generator Sets: C7.1, C7.1DE200E, C9
- Excavators: 330D L, 330D, 324D L, 330C, 325D L, 336F L XE, 325C L, 329E L, 336F, 336D L, 336E L, 330C L, 329D L, 330D2, 325D, 336E H, 328D LCR, 330D2 L, 325C, 324D, 336F L, 336E, 336E LH, 335F LCR, 330B, 329E, 326D L, M325D L MH, 329D2 L, 336D, 326D2 L, 326D2, 329D2, 329D
- Off-Highway Trucks: 725C2, 725
Additional information
| Machine Model | 324D, 324D L, 325C, 325C L, 325D, 325D L, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330B, 330C, 330C L, 330D, 330D L, 330D2, 330D2 L, 335F LCR, 336D, 336D L, 336E, 336E H, 336E L, 336E LH, 336F, 336F L, 336F L XE, 725, 725C2, C7.1, C7.1DE200E, C9, M325D L MH |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
