Description

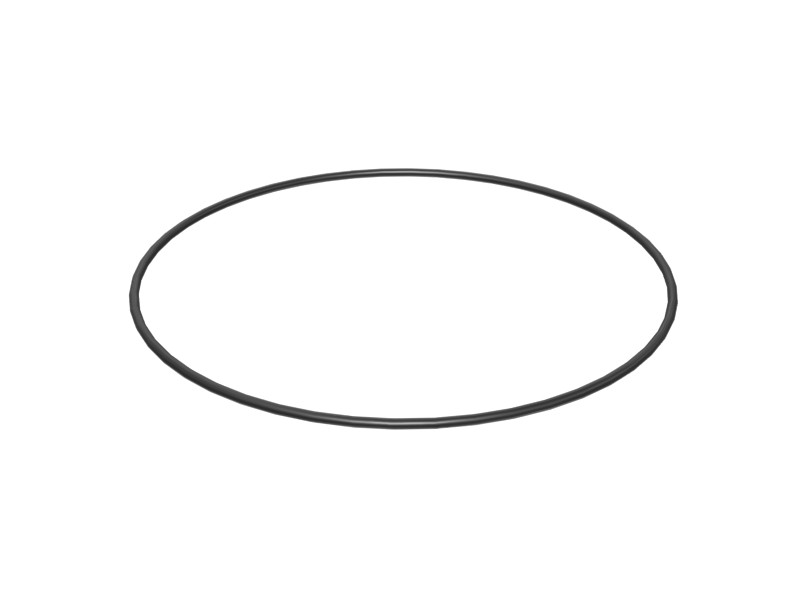

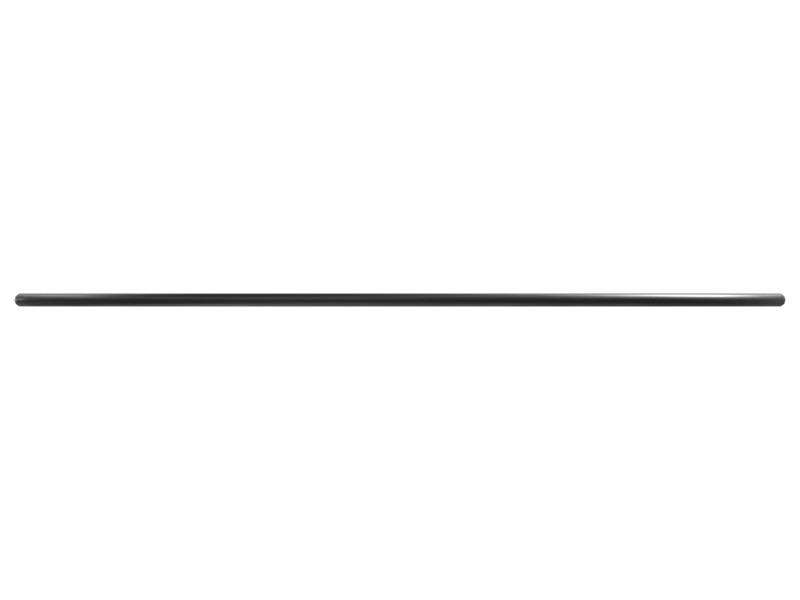

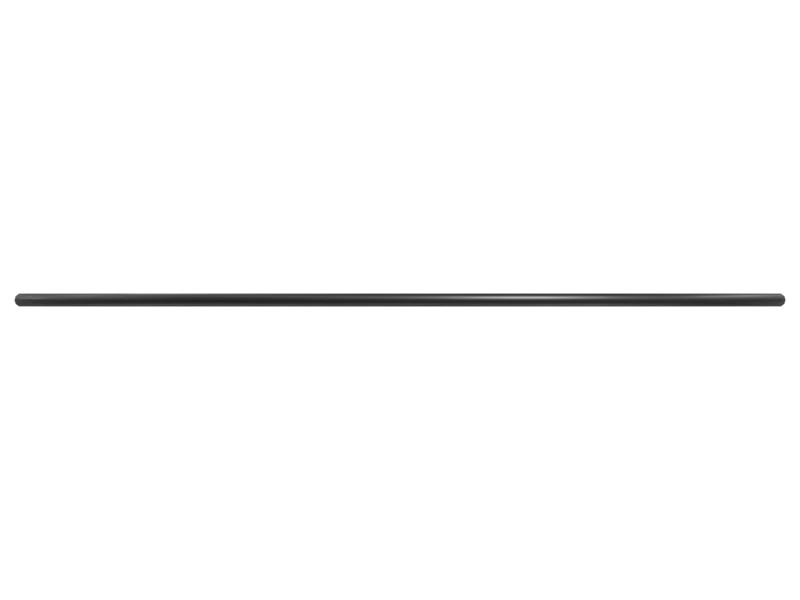

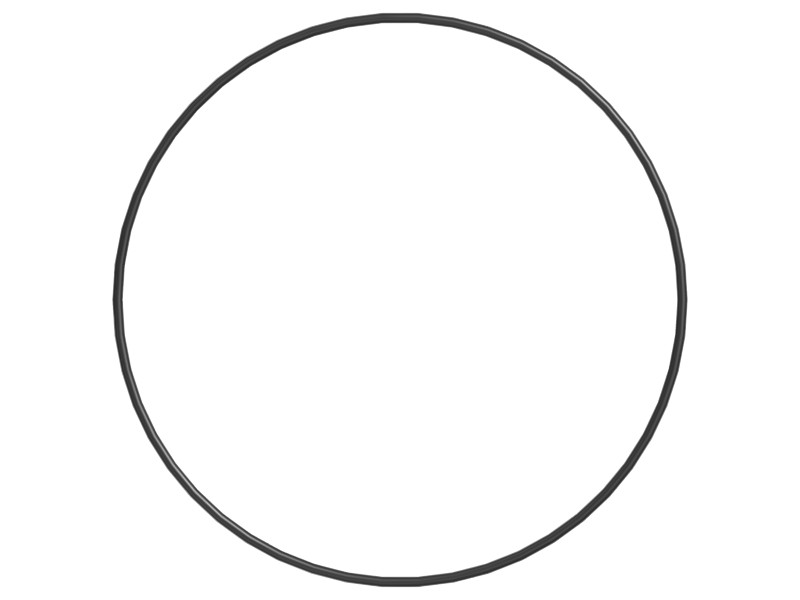

The air filter cover seal is a sealing component used in air filtration units. It is designed to fit tightly between the air filter cover and the air filter housing. It is made of high-strength material and is resistant to high temperatures.
Attributes
- Improves engine performance by preventing unfiltered air from entering the engine.
- Helps optimize the air-fuel ratio.
Applications
The air filter cover seal is used to create a tight seal in the filter cover, preventing dust and other contaminants from entering the engine, and is mainly used on Cat 315C, 320, 320B, 320C, 320D, 320E, 320F, 320S, 321B, 321C, 321D, 322, 322B, 322C, 323D, 323E, 323F, 325, 325B, 330, 336D, E120B, and M325B excavators, 320D material handlers, AP-600, CP-533D, CP-563D, CP-563E, CP-663E, CS-531D, CS-533D, CS-563D, CS-563E, CS-573D, CS-573E, CS-583D, CS-583E, CS-663E, and CS-683E paving equipment, CP-573E, CP-583E, and CS-563E compactors, and TL1055 and TL1255 telehandlers (Jlg).
Specifications
| Outside Diameter | 280.5 mm (11.04 in) |
|---|---|
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image. |
| SAE AS568 Dash Size | 0 |
| Coating | None |
| Cross-Section Diameter | 6.9 mm (0.27 in) |
| Inside Diameter | 266.7 mm (10.5 in) |
| Weight | 0.02 kg (0.05 lb) |
Compatible Equipment
- Compactors: CS-563E, CS-583D
- Excavators: 320C L, 320C, 320E, 320D RR, 320B, 323D L, 320D FM, 320D L, 325B L, 320D
