Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These bolts can be installed when there is not enough clearance to use hex head bolts.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size | M8 mm (0 in) |
|---|---|
| Material | Alloy Zinc |
| Thread Direction | RH |
| Handle Length | 3.75 mm (0.15 in) |
| Coating | Zinc Flake |
| Bolt Length | 35 mm (1.38 in) |
| Class or Grade | ISO 898-1 Class 12.9 |
| Pitch | 1.25 mm |
| Thread Size (Diameter × Pitch) | M8x1.25 mm |

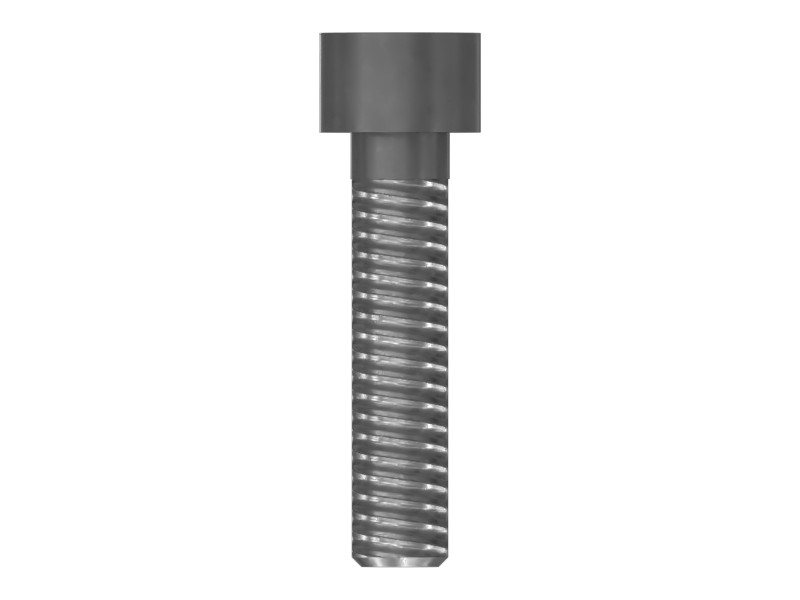

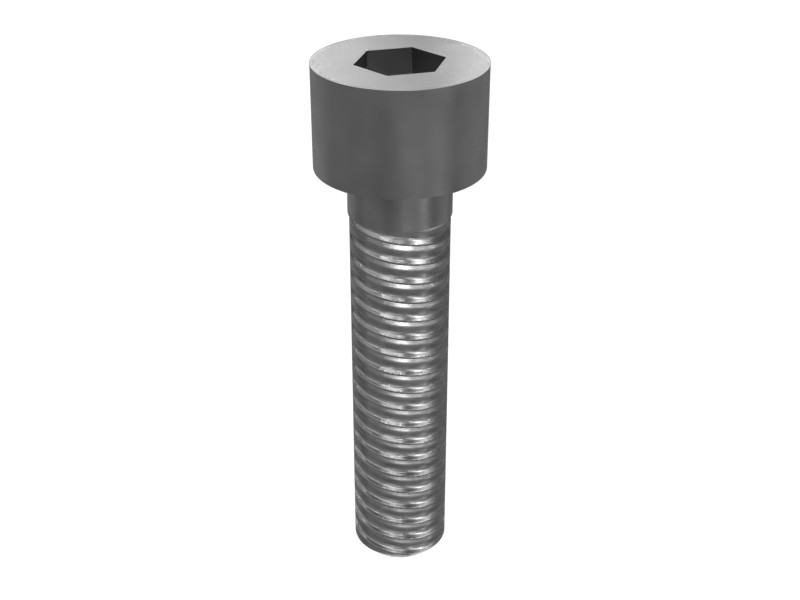

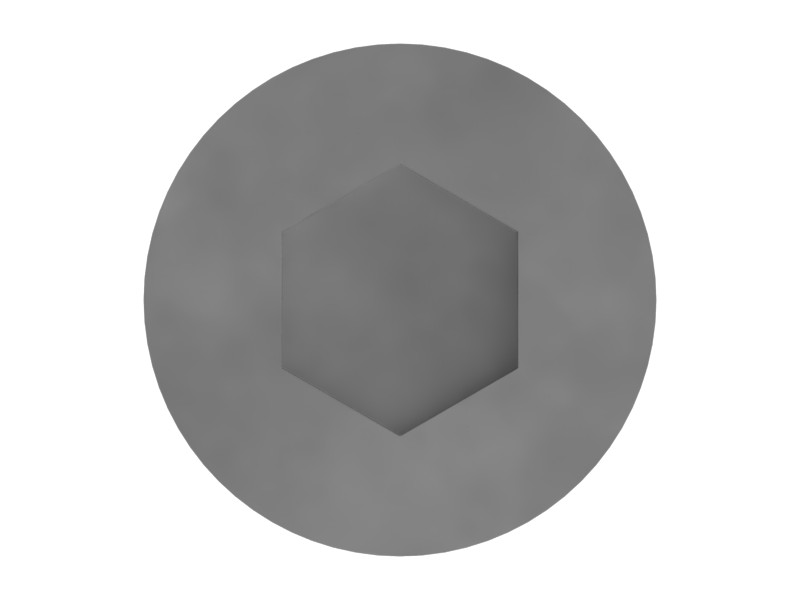

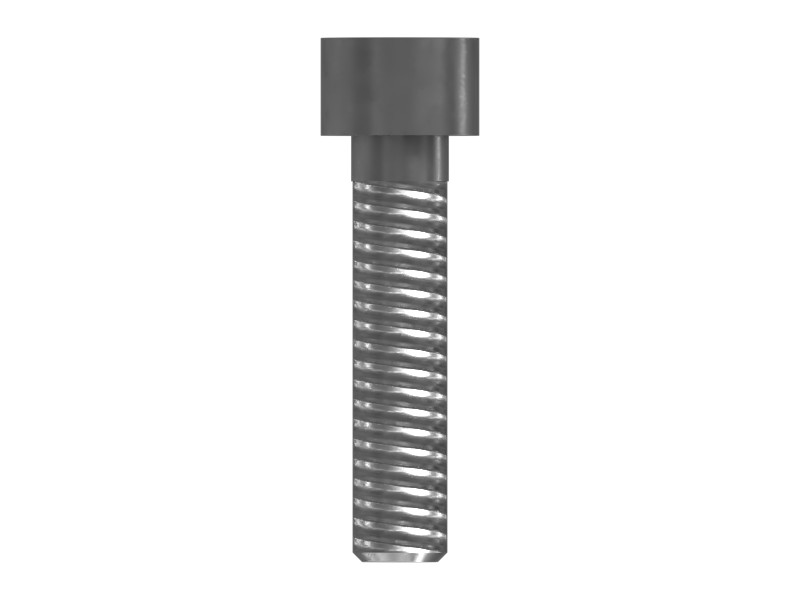

| Bolt Type | Socket Head |
| Locking Feature | None |
Compatible Equipment
- Generator Sets: C9, G3516
- Motor Graders: 316F
- Wheel Excavators: M315D2, M317D2, M315D, M313D, M320D2, M322D, M320
- Engines: C32, C15, C18
- Mini Excavators: 308E2, 307C, 307D, 307E2, 307
- Excavators: 349F L, 329E L, 323, 315D L, 312D L, 336E L, 320, 336 GC, 311D LRR, 336F L, 336E LH, 336E H, 336F, 320 GC, 336E LN, 336F LN, 336, 336F L XE, 325, 320E, 312E L, 312E, 330 GC, 315F LCR, 313F L, 349E L, 374F L, 352F, 390F, 349D L, 349E L VG, 330GC, 326, 345D L, 349, 352, 390D, 345D, 340, 335, 312F, 312D, 329E, 315, 336E, 355, 330, 308E, 390F L, 374D L, 390D L, 349D, 349D2, 349D2 L, 374F, 307E
- Off-Highway Trucks: 794 AC
- Asphalt Pavers: AP355F
Additional information
| Machine Model | 307, 307C, 307D, 307E, 307E2, 308E, 308E2, 311D LRR, 312D, 312D L, 312E, 312E L, 312F, 313F L, 315, 315D L, 315F LCR, 316F, 320, 320 GC, 320E, 323, 325, 326, 329E, 329E L, 330, 330 GC, 330GC, 335, 336, 336 GC, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 345D, 345D L, 349, 349D, 349D L, 349D2, 349D2 L, 349E L, 349E L VG, 349F L, 352, 352F, 355, 374D L, 374F, 374F L, 390D, 390D L, 390F, 390F L, 794 AC, AP355F, C15, C18, C32, C9, G3516, M313D, M315D, M315D2, M317D2, M320, M320D2, M322D |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Motor Graders, Off-Highway Trucks, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
