Description
Cat steering components must withstand extremely high torque, high shock loads, and frequent direction changes. Cat designs and manufactures its steering components to these requirements. The Cat sleeve group allows position changes between the connecting rod and the steering arm to improve the handling of wheeled Cat machines.
Features

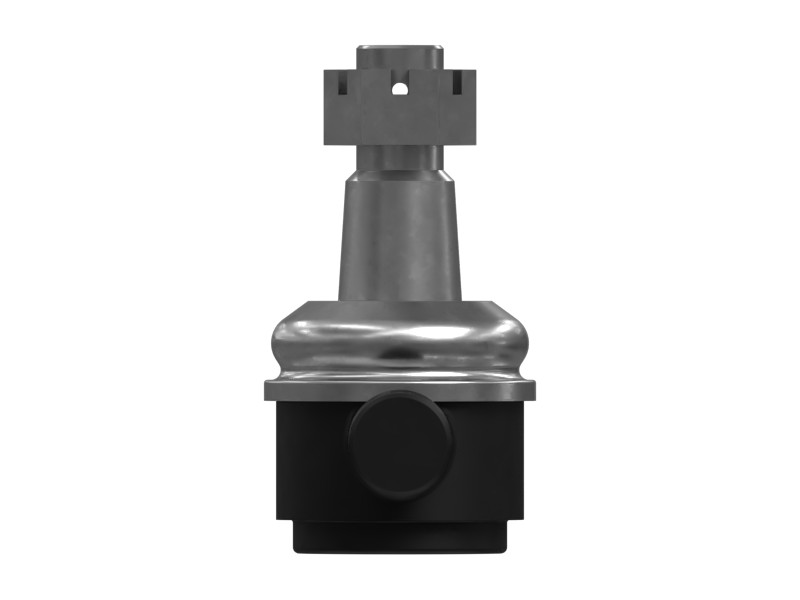

- Left Tie Rod End
- End 1 Thread Size: 7/8-14 (Nut)
- End 2 Thread Size: 1-1/8-12 (Link)
- Overall Length: 168.9 mm (6.65 in)
Applications
Cat sleeve groups are used in the vehicle steering systems of Cat heavy machines. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Overall Length | 168.9 mm (6.65 in) |
| External Thread Size | 1-1/8-12 Left in |
Compatible Equipment
- Motor Graders: 140 GC, 120H, 140K, 160K, 120, 12H, 140H, 12K, 140G
- Excavators: 120 GC
