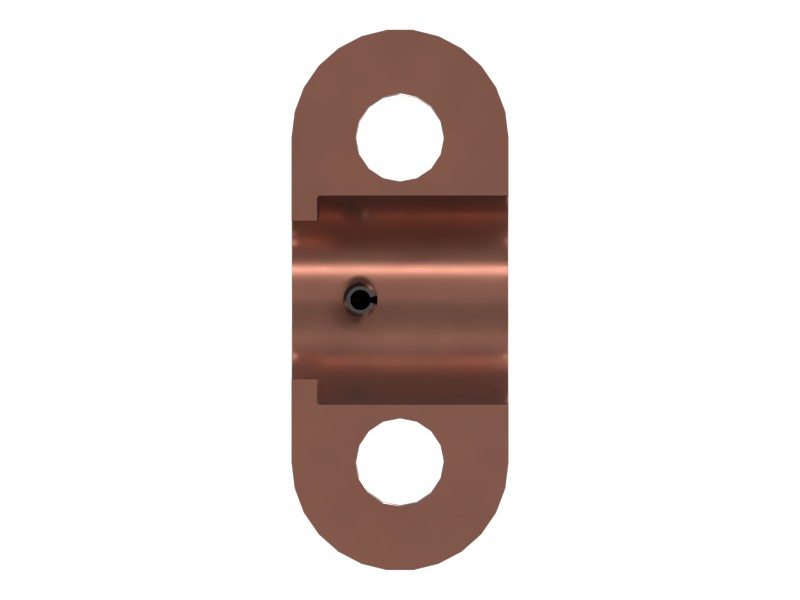

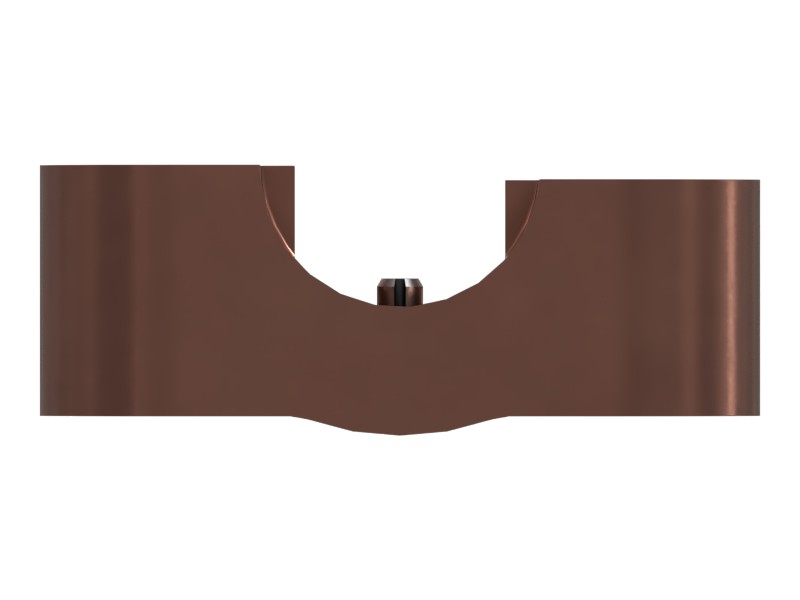

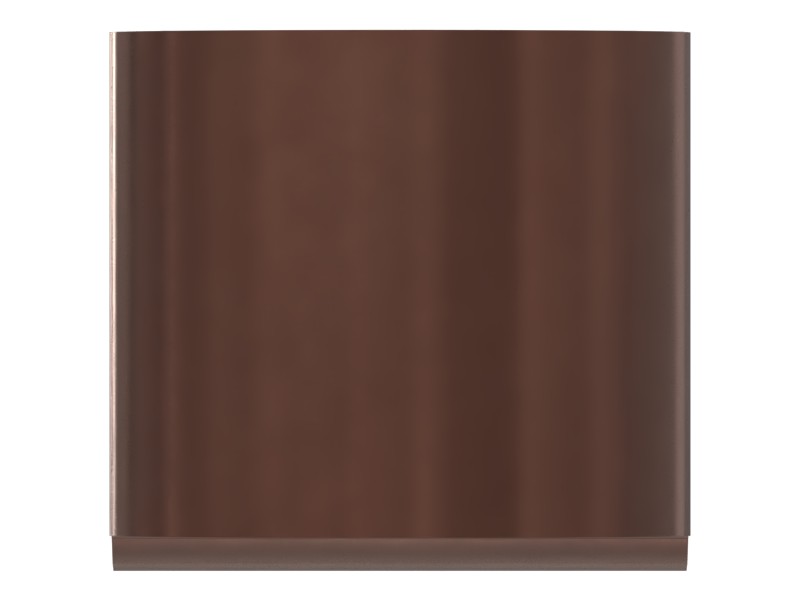

131-1651 Track Roller Cover
Cat® Track Roller Cover with Spring Pin protects and secures the track idler, ensuring smooth track movement in heavy machinery.
Description
The track roller end ring provides a retaining feature for the idler shaft and the sealing system.
Features
General duty tracks can provide an affordable option for machines nearing retirement or with low utilization. Their lower initial price allows them to be run until failure. All Cat® undercarriage is backed by the Undercarriage System Guarantee. Manufactured by Caterpillar, they are hardened and quality tested to meet the productivity and performance demands of the work site.
Specifications
| Shaft Mounting Diameter | 58.15 mm (2.289 in) |
|---|---|
| Number of Mounting Holes | 2 |
| Width | 60 mm (2.362 in) |
| Hole 1 Distance | 45 mm (1.772 in) |
| Mounting Hole Diameter | 24.5 mm (0.965 in) |
| Pin Diameter | 9.6 mm (0.378 in) |
| Height | 52 mm (2.047 in) |
| Mounting Face Offset | 3 mm (0.118 in) |
| Hole 2 Distance | 90 mm (3.543 in) |
| Length | 150 mm (5.906 in) |
Compatible Equipment
- Cold Planers: PL83, PL87
- Dozers: D8, D8T, D9R, D8R, D9N, D9T, D9
- Excavators: 3508B
