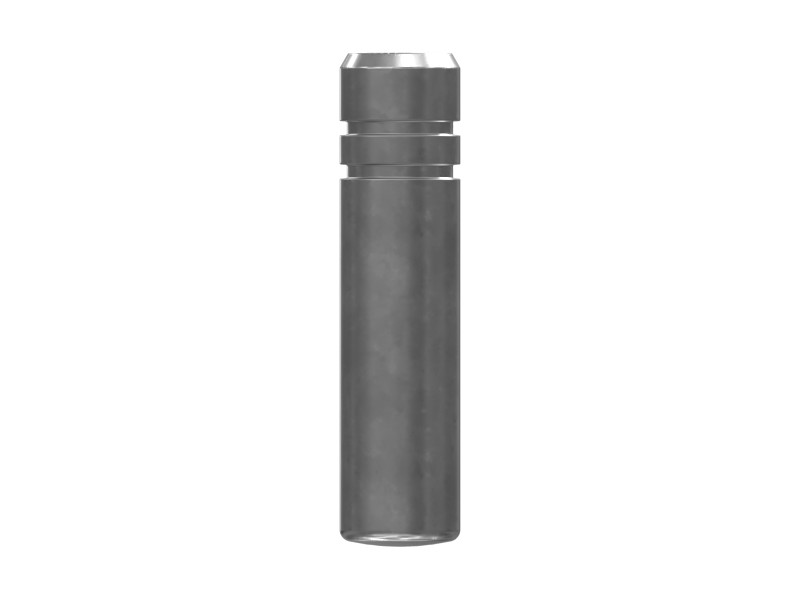

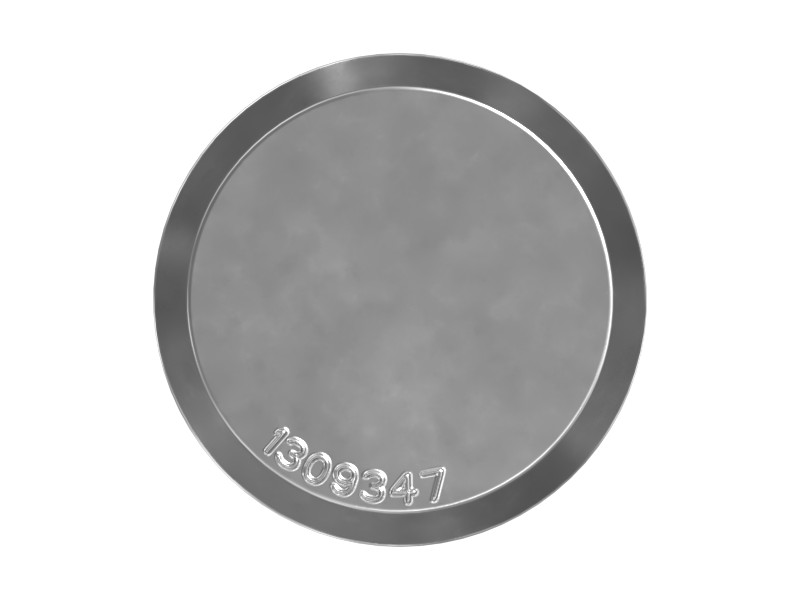

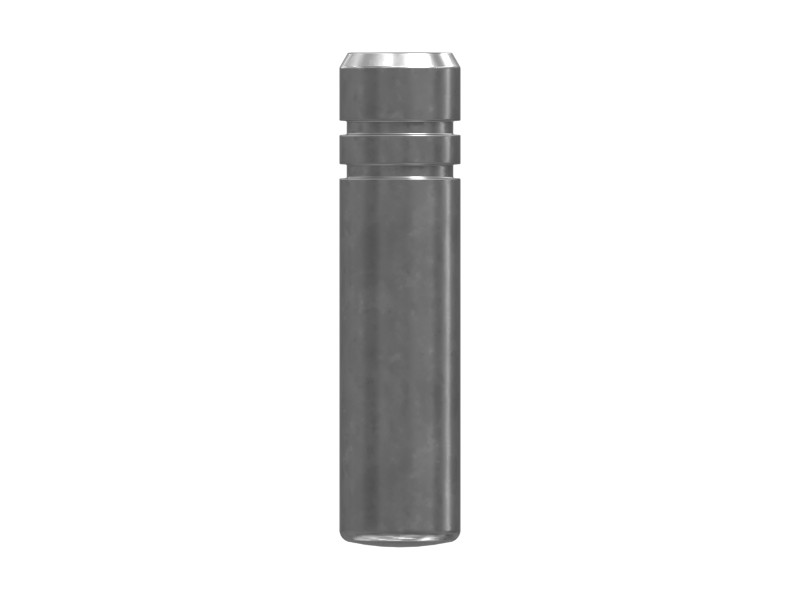

130-9347 49.96 mm OD Track Adjuster Piston
Cat® 49.96 mm OD Hydraulic Track Adjuster Steel Piston for Front Idler of Track Roller Frame in Undercarriage Systems
Description
Cat® hydraulic motors are used to convert hydraulic power into rotary mechanical power. Hydraulic motors are precision engineered for use with hydraulic systems to meet the demanding requirements for machine performance, reliability, durability, operating cost, and productivity.
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Pin Type | Ring Grooves |
|---|---|
| Cross Hole | No |
| Track Tensioner Component Type | Rod or Piston |
| Diameter | 49.96 mm (1.967 in) |
| Pin Length | 204.5 mm (8.051 in) |
| Length | 204.5 mm (8.06 in) |
| Outside Diameter | 49.96 mm (1.97 in) |
| Material | — |
| Approximate Weight | 3.12 kg (6.88 lb) |
Compatible Equipment
- Mini Excavators: 308E2, 307B, 307E2, 307C, 307, 307D
- Excavators: 308D, 308E, 307E
