Description
Choosing Genuine Cat filters, cleaners and precleaners to protect your revenue-generating equipment is always worth it.
Contamination is the number one enemy of engines, so it is critical to protect Cat equipment with Genuine Cat filter elements. Cat Precleaner Groups are ideal for normal-duty applications, providing better engine protection and helping avoid equipment downtime.
Cat air filters offer long service life, superior filtration performance, and are environmentally friendly and cost-effective. Genuine Cat filters are designed entirely to Cat equipment specifications and are a key factor in how efficiently your machine uses air. A clean filter element protects internal mechanisms from dust damage.
Always choosing Cat air filters is the smart way to ensure long life and optimal performance for your Cat machines.
Features

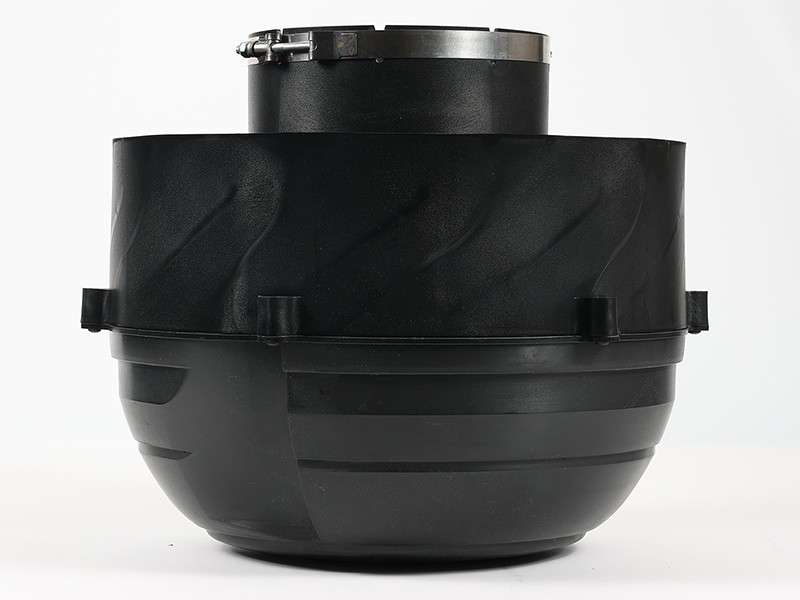

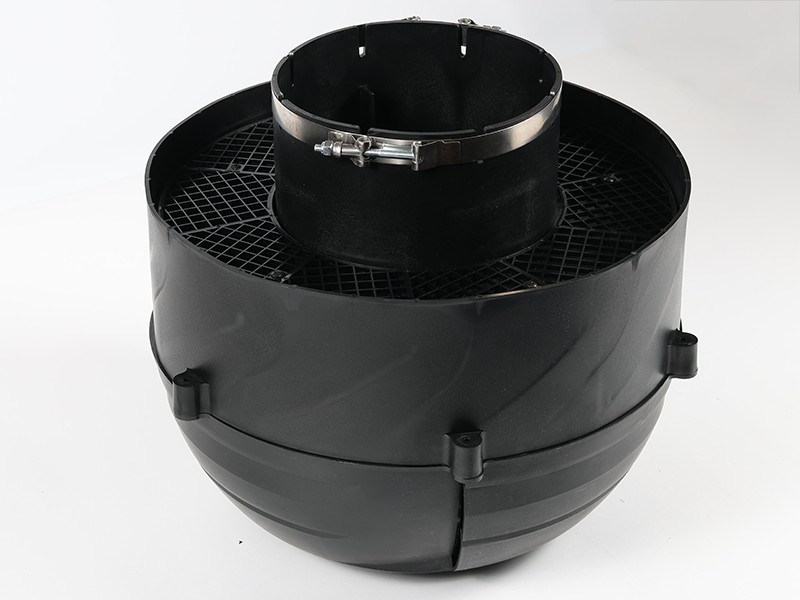

- Turbo precleaner group
- Airflow Range: 23-37 m3/min (800-1300 cfm)
- Mounting Diameter: 204.8 mm (8.06 in)
- Outer Cover Diameter: 416.2 mm (16.38 in)
- Quick service
Applications
Normal operating conditions. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Type | Turbine |
|---|---|
| Overall Length | 375.5 mm (14.783 in) |
| Overall Height | 416.6 mm (16.402 in) |
| Overall Width | 416.6 mm (16.402 in) |
| Material | Carbon Steel |
| Length | 370.9 mm (14.602 in) |
| Width | 416.2 mm (16.386 in) |
| Height | 451.8 mm (17.787 in) |
| Outlet Size | 206.2 mm (8.118 in) |
| Housing Material | Plastic |
| Scavenge Required | No |
Compatible Equipment
- Generator Sets: 3406C, C9, 3406B
- Track Loaders: 982, 972, 826H, 826K, 834H
- Compactors: C9.3B, 824K, 834K, 825K, C13B, C-9
- Engines: C32, C11, C15, C13, C27, C18
- Dozers: D10T, D11T, D8T, D9R, D8N, D9T, D8R, D11R, D10, D10R, D11, D10N, D10T2, D8, D9
- Excavators: 6020B
- Wheel Loaders: 982M, 972M, 966M, 980M, 966 GC
- Skid Steer Loaders: 24
Additional information
| Machine Model | 24, 3406B, 3406C, 6020B, 824K, 825K, 826H, 826K, 834H, 834K, 966 GC, 966M, 972, 972M, 980M, 982, 982M, C-9, C11, C13, C13B, C15, C18, C27, C32, C9, C9.3B, D10, D10N, D10R, D10T, D10T2, D11, D11R, D11T, D8, D8N, D8R, D8T, D9, D9R, D9T |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
