Description

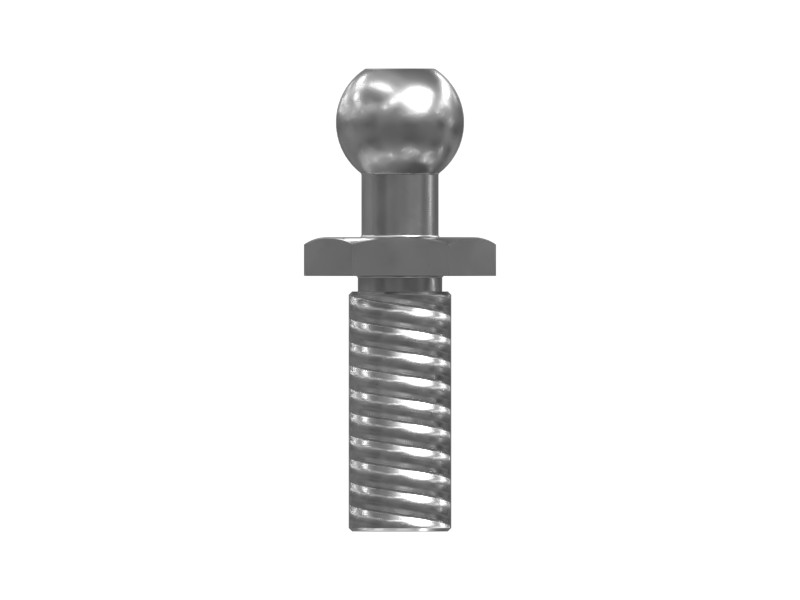

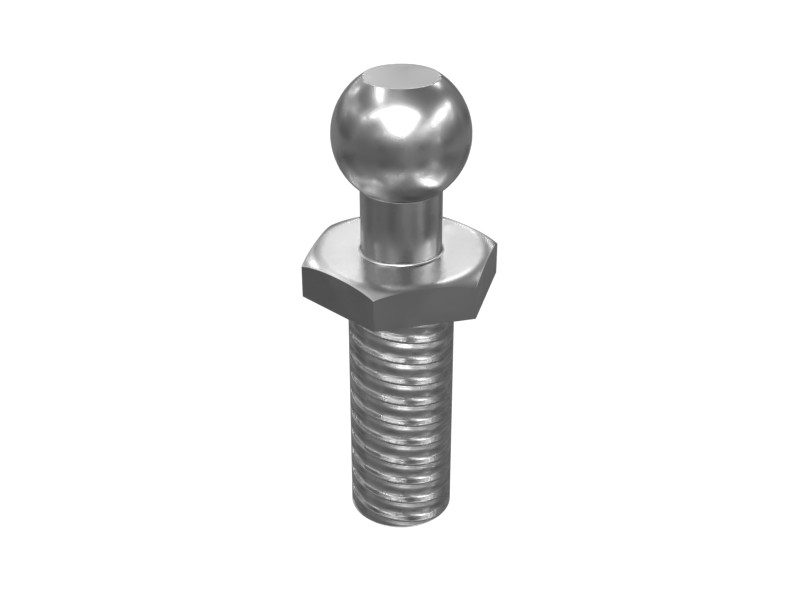

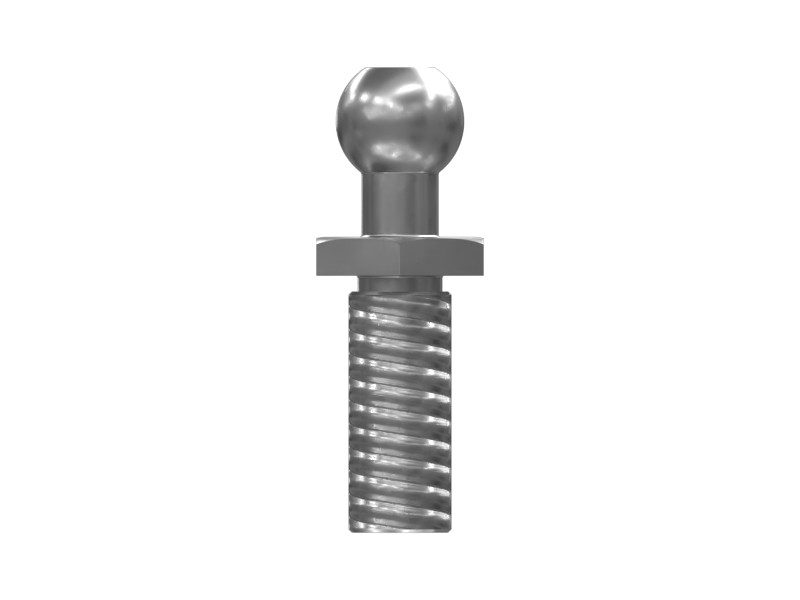

Cat ball studs are used to mount gas spring cylinders that support the weight of the hinge group when opened.
Features
- Steel ball stud
- Metric threaded shaft
Applications
Cat ball studs are commonly used in hood, cab and door systems. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Head Diameter | 10 mm (0.39 in) |
| Hex Size | 13 mm (0.51 in) |
| Thread Size | M8 X 1.25-6g mm |
| Overall Length | 36.2 mm (1.43 in) |
Compatible Equipment
- Track Loaders: 972, 982
- Wheel Excavators: IT14G
- Excavators: 621K, 432, 434F2, 416F2, 428F
- Wheel Loaders: 966, 950, 924HZ, 924K, 924GZ, 938K, 928G, 926M, 938M, 928HZ, 980, R1600H, R1700G, R1700 II
- Skid Steer Loaders: 226B3, 216B3, 226B, 236, 236B3
Additional information
| Machine Model | 216B3, 226B, 226B3, 236, 236B3, 416F2, 428F, 432, 434F2, 621K, 924GZ, 924HZ, 924K, 926M, 928G, 928HZ, 938K, 938M, 950, 966, 972, 980, 982, IT14G, R1600H, R1700 II, R1700G |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders |
| Part Source | Genuine OEM |
