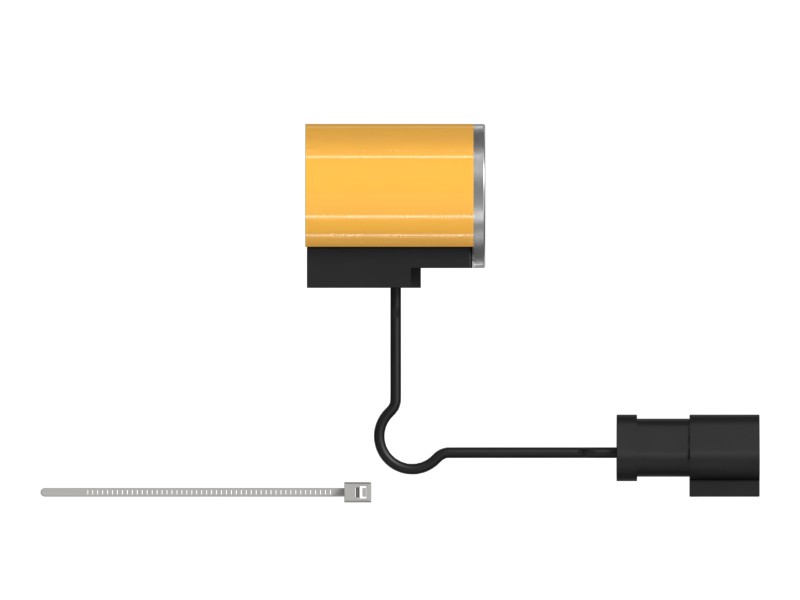

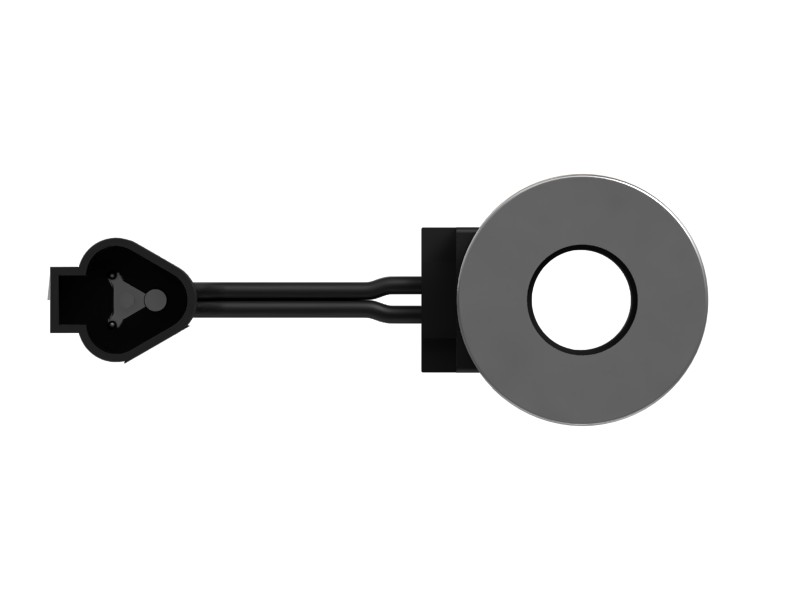

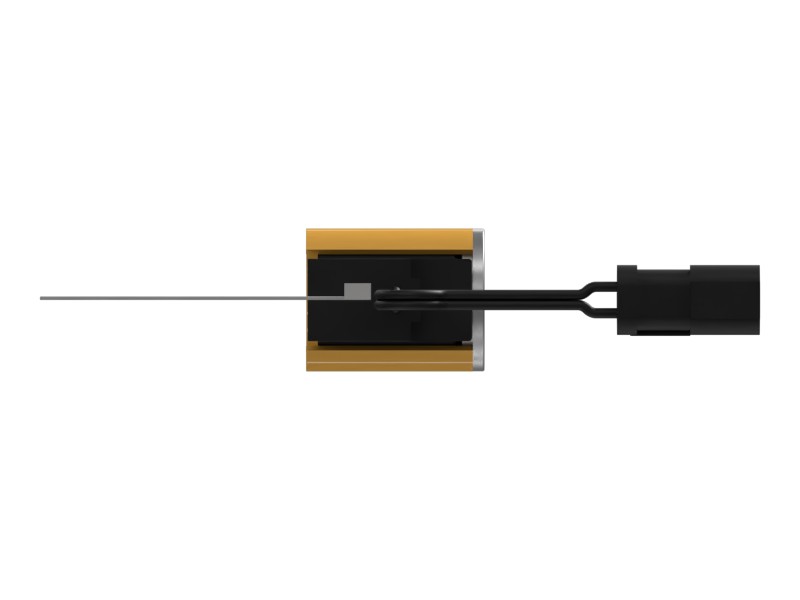

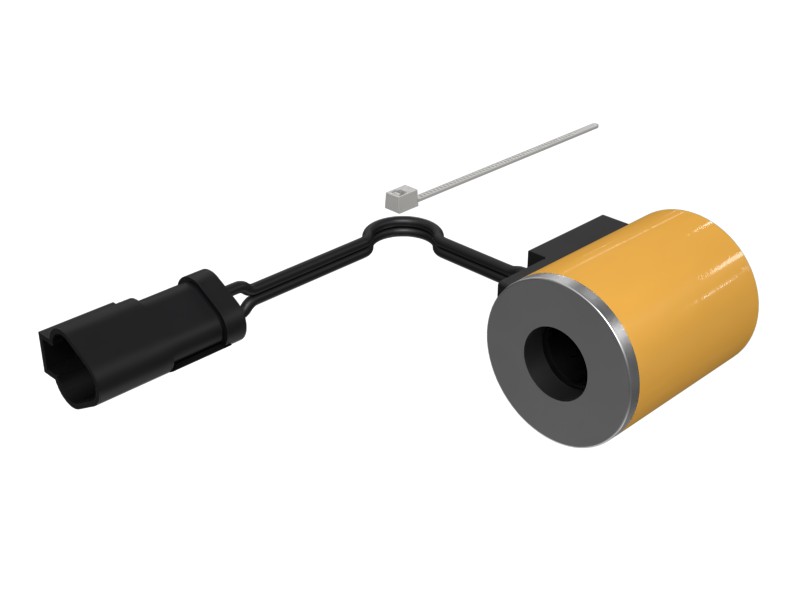

130-0912 12 VDC Solenoid Valve Coil
Cat® 18.10 W Maximum Power Consumption Solenoid Valve Coil for Shift Valves and Solenoid Valves
Fitment data not listed — send us your machine model or serial number to confirm.
Description
The Cat coil group provides the required magnetic force when current is supplied.
Features
- Voltage: 12 VDC
- Connector Type: 3-Pin DT
- Resistance: 7.9 ohms at 25°C
- Maximum Power: 18.1 Watts at 25°C Ambient Temperature
- Turns: 24 AWG Copper, 1068 Turns
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Voltage | 12 VDC Volts |
|---|---|
| Power | 18.1 Watts |
| Length | 54.3 mm (2.14 in) |
| Width | 43.5 mm (1.71 in) |
| Height | 49.5 mm (1.95 in) |
| Lead Length | 110 mm (4.3 in) |
Additional information
| Part Source | Genuine OEM |
|---|
