Description

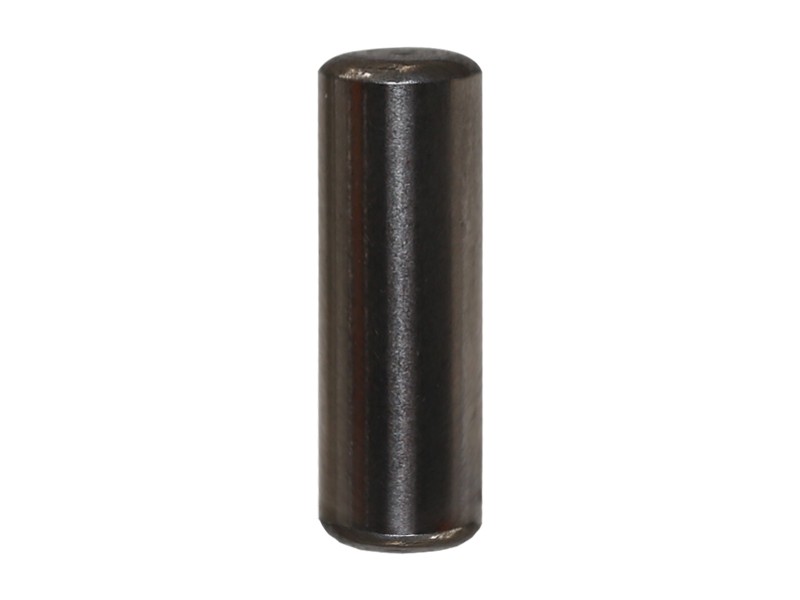

A dowel pin is a headless straight pin with a tightly controlled diameter, installed by press fit in one or two parts to transmit loads or fix the position of adjacent parts. Hardware and fasteners are designed for specific applications based on size, strength, clamp load and past performance, information that is not available to other manufacturers. They are carefully selected to last until the machine is rebuilt or reaches the end of its life. Non-Cat hardware and fasteners may look like they will work on your machine, but other companies do not know your equipment the way we do.
Features
- Material: Steel
- Pin Diameter: 4.995 mm (0.197 in)
- Pin Length: 14.975 mm (0.59 in)
- End Type 1: Radius
- End Type 2: Radius
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Pin Type | Solid |
|---|---|
| Pin Length | 14.97 mm (0.589 in) |
| Pin Outside Diameter | 5 mm (0.197 in) |
| Length | 14.975 mm (0.59 in) |
| Pin Diameter | 4.995 mm (0.197 in) |
| Material Description | Steel |
Compatible Equipment
- Generator Sets: C7.1, 3512B
- Excavators: 328D LCR, 329D L, 325C L, 320C, 320D RR, 325C, 325D L, 323D L, 324D L, 320D2 L, 324D, 329E L, 320D L, 320E, 329E, 323D2 L, 320D GC, 320D2 GC, 323D2, 323D, 320D FM, 325D, 326D L, 320C L, M325D L MH, 330D2 L, 330D2, 320D, 320D2, 329D, 326D2, 326D2 L, 329D2 L, 329D2
- Wheel Loaders: 966K
Additional information
| Machine Model | 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 325C, 325C L, 325D, 325D L, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330D2, 330D2 L, 3512B, 966K, C7.1, M325D L MH |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
