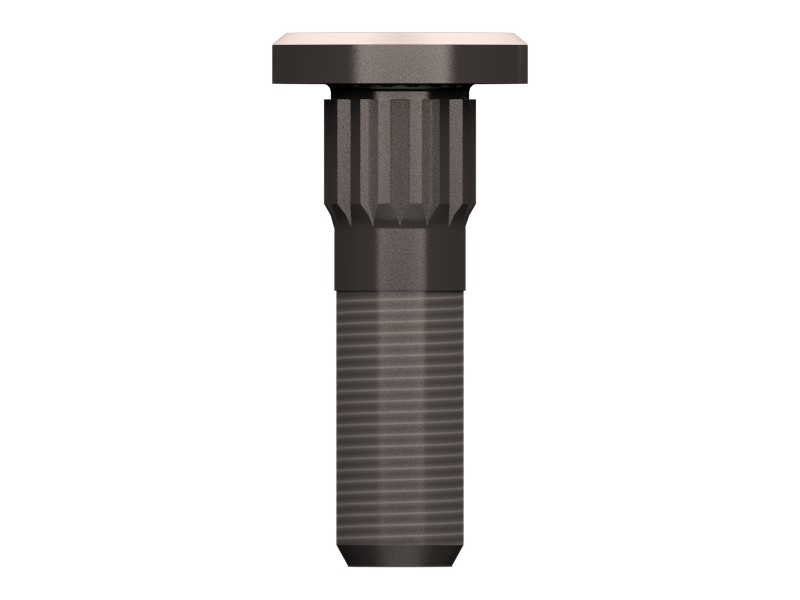

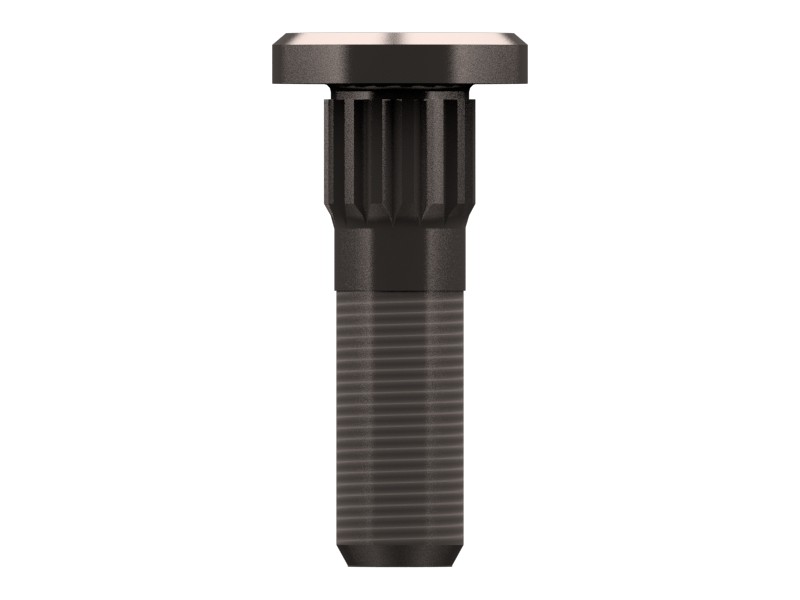

129-5428 3/8-16 Thread Wheel Stud Bolt
Cat® 3/8-16 thread 35 mm long wheel bolt stud for front housings
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
A wheel stud is typically a threaded fastener that secures the wheel hub to the axle. A nut is tightened onto the wheel stud to secure the wheel.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat studs, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat studs form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can rely on Cat hardware and fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications
| Length | 34.925 mm |
|---|---|
| Remarks | Number of Plies: 0 |
| Head Thickness | 3.96875 mm |
| Serrated | 11.1125 |
| Hole Thread Pitch | 16 |
| Thread Size | 0.375 mm |
| Head Diameter | 18.653125 mm |
| Handle Length | 15.08125 mm |
| Material Description | 1035 MPa Tensile Serrated Bolt |
| Material | Sealants / Adhesives Adhesive |
Compatible Equipment
- Generator Sets: C9
- Track Loaders: 824C, 826G, 826H, 826K, 834H, 824G
- Cold Planers: PM620, PM622, PL87, PL83, PM-200
- Compactors: 834K, 824K, 825K, C-15
- Engines: C15, C18
- Excavators: 390F L, 3456, 390D L, 374F, 374D L, 374, 385C, 374F L, 6018, 637E, 385B, 385C L, 6015, 365C, 385C FS, 621G, 390F, 365C L, 657G, 637K, 637G, 6015 FS, 390D, 395, 3508B, 3101
- Asphalt Pavers: AD45, AD30
- Wheel Excavators: MD6200
- Dozers: D9, D8, D8T, D8N, D9T, D8R
- Wheel Loaders: 980H, 980G, 988K, 988H, 988G, 986H, RM500B, R2900 XE, R2900G, R3000H, 836, 834
- Off-Highway Trucks: 740 GC, 770G, 740, 735, 745C, 772G, 740B, 745
Additional information
| Machine Model | 3101, 3456, 3508B, 365C, 365C L, 374, 374D L, 374F, 374F L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 390F, 390F L, 395, 6015, 6015 FS, 6018, 621G, 637E, 637G, 637K, 657G, 735, 740, 740 GC, 740B, 745, 745C, 770G, 772G, 824C, 824G, 824K, 825K, 826G, 826H, 826K, 834, 834H, 834K, 836, 980G, 980H, 986H, 988G, 988H, 988K, AD30, AD45, C-15, C15, C18, C9, D8, D8N, D8R, D8T, D9, D9T, MD6200, PL83, PL87, PM-200, PM620, PM622, R2900 XE, R2900G, R3000H, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
