Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These nuts are used where a separate washer is not suitable.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Coating | Zinc Electroplated (96 Hour Salt Spray Test) |
|---|---|
| Thread Size | M10 mm (0 in) |
| Material Description | Manufacturer Standard Steel |
| Drive Chain | 14 mm (0.551 in) |
| Grade | 10 |
| Hole Thread Pitch | 1 |
| Thread Direction | RH |
| Class or Grade | ISO 898-2 Class 10 |
| Thread Size (Diameter × Pitch) | M10x1 mm |
| Thickness | 11 mm (0.433 in) |
| Thread | RH Fine |

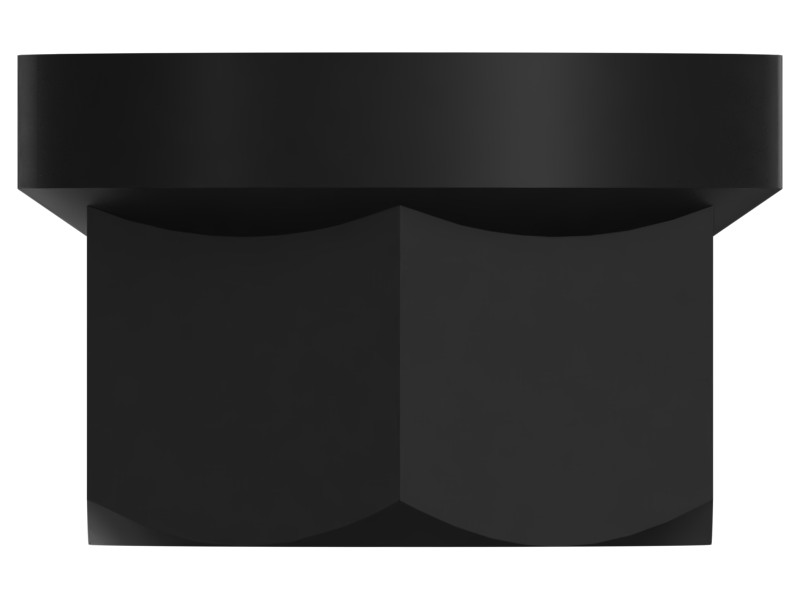

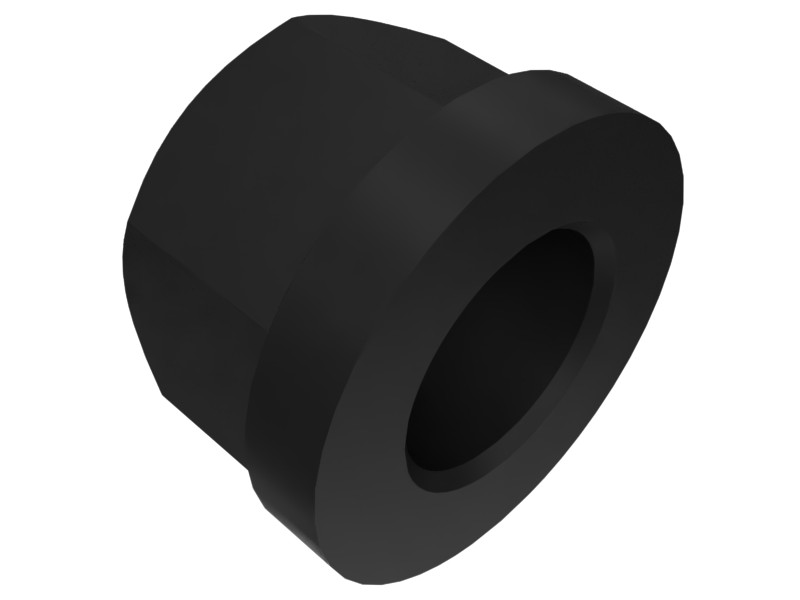

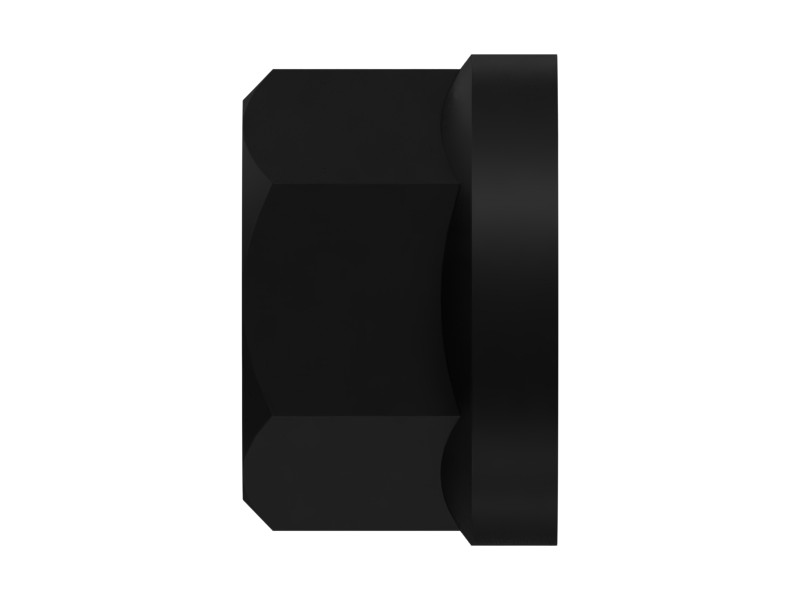

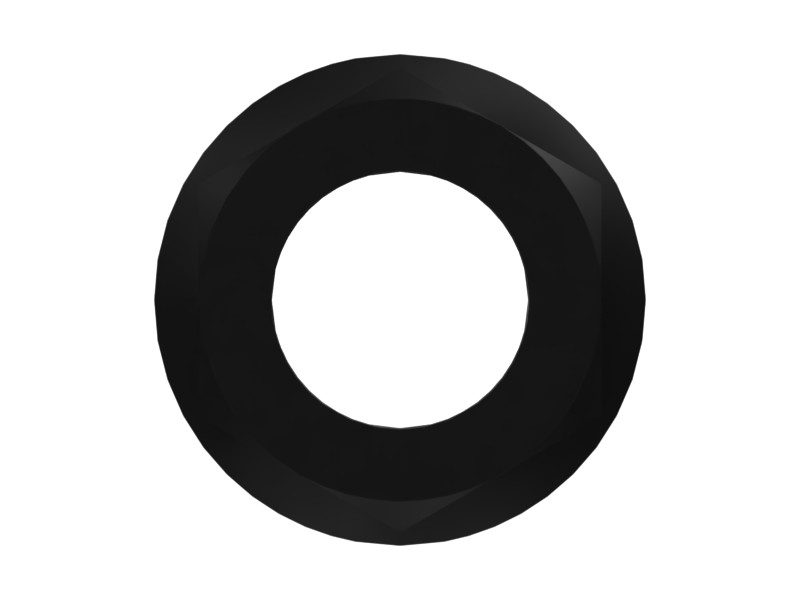

| Nut Model | Hex Flange |
| Thread Size (in – TPI) | M10-1 in |
Compatible Equipment
- Dozers: D5G, D3G, D4G
- Mini Excavators: 303.5C
- Excavators: 315C, 305C CR, 303C CR
- Skid Steer Loaders: 236B3, 246C, 262C, 279C
