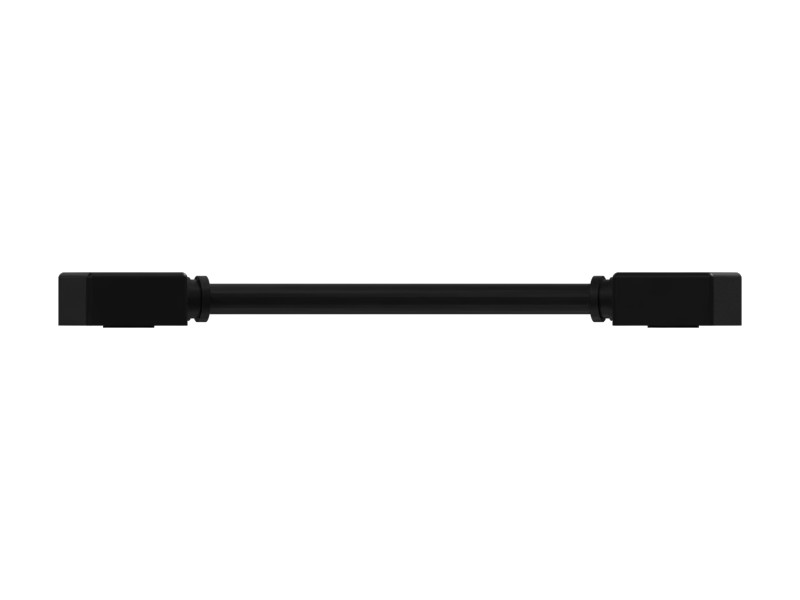

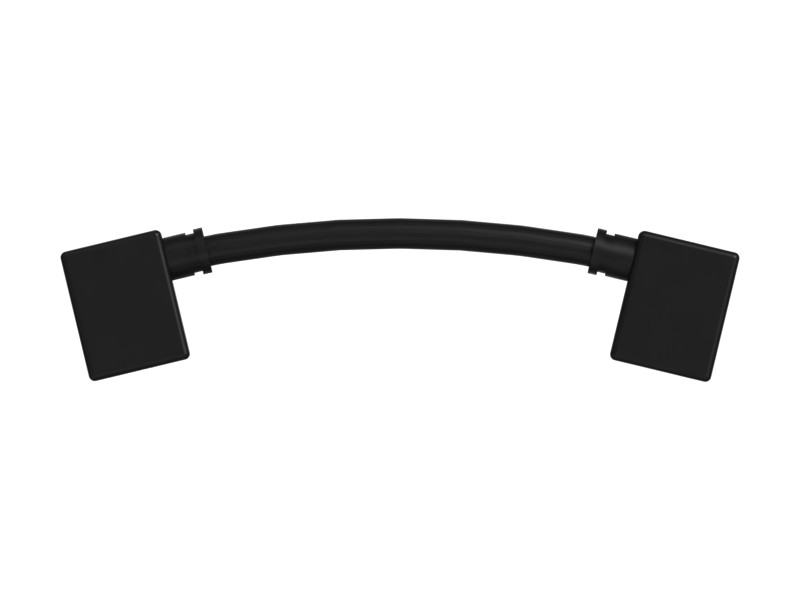

128-0314 290 mm Long Battery Cable
Cat® battery and wiring cables connect the battery to the electrical system, enabling reliable power distribution for efficient operation
Description
Cat battery cables deliver maximum cold cranking amps (CCA) in the harshest weather conditions. They are suitable for continuous use at temperatures up to 80°C. Full-gauge annealed stranded copper conductors, wrapped in thermoplastic insulation, remain flexible at -40°C. Cat battery cables include heavy-duty battery terminals designed to deliver the same extreme CCA needed to start Cat equipment.
Features
- Enables series connection between batteries.
- Heavy-duty 2/0 cable

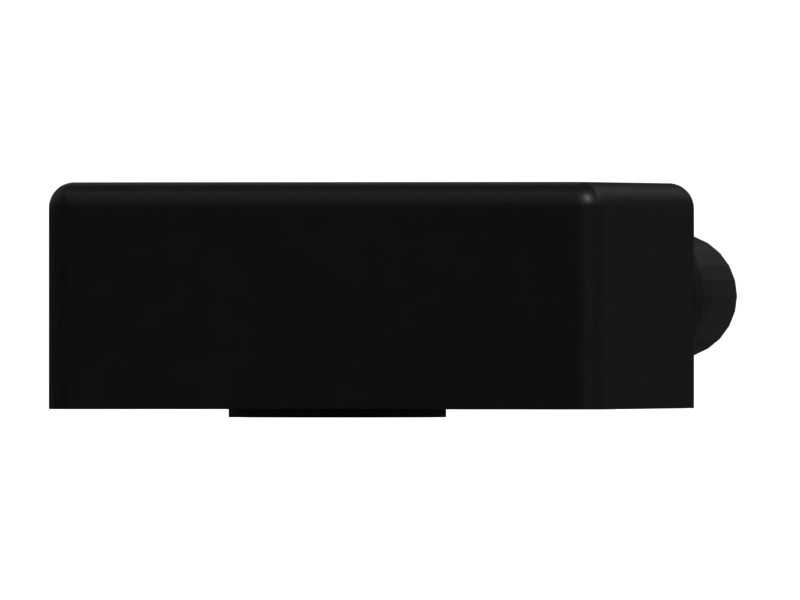

- Terminal cover included
Applications
Extreme environmental conditions. Refer to your Operation and Maintenance Manual or contact MECHSC for more information
Specifications
| Terminal | Crimp, Crimp |
|---|---|
| Polarity | Positive |
| Length | 290 mm (11.42 in) |
| Gauge | 00 AWG |
| Color | Red |
Compatible Equipment
- Motor Graders: 12H, 120H, 140H
- Compactors: CS-54, CS-533E
- Dozers: D6R II, D6R III, D6R, D6T, D7E, D7R II, D6R XL
- Wheel Loaders: 834
- Asphalt Pavers: AP655F, AP-600D, AP655F L
