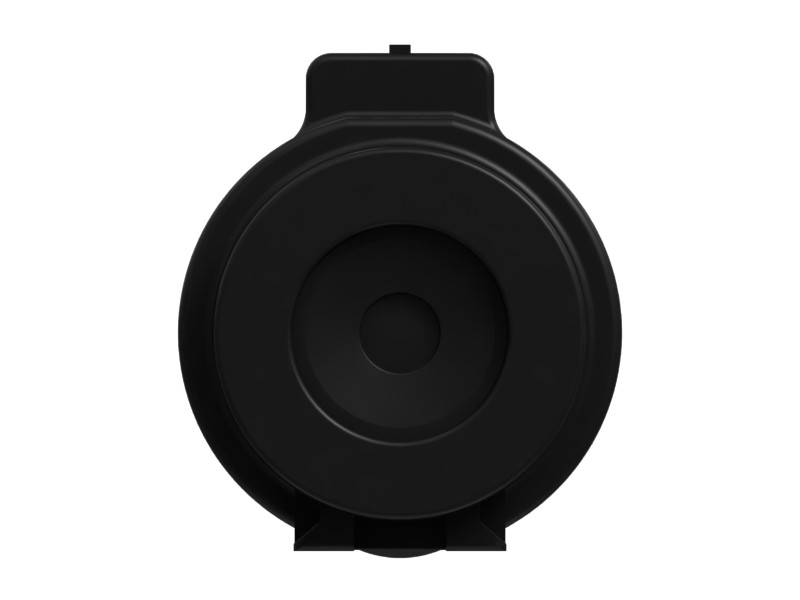

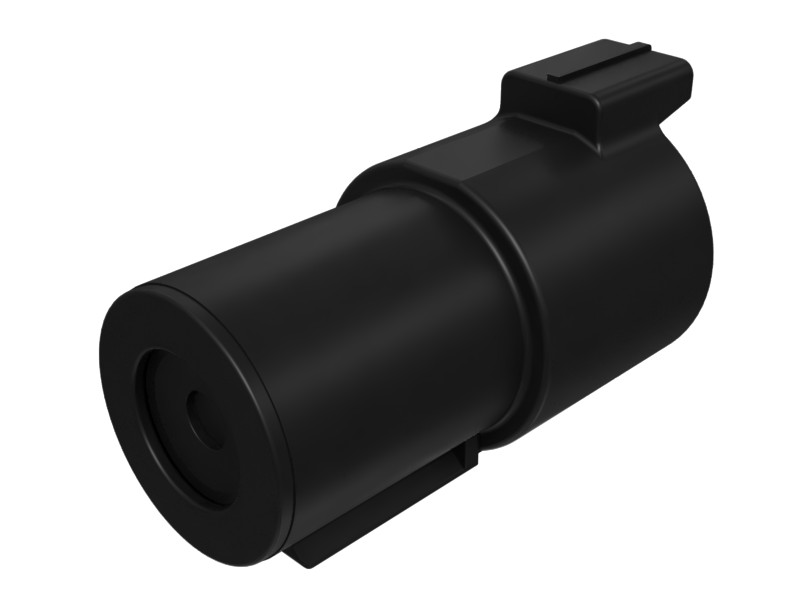

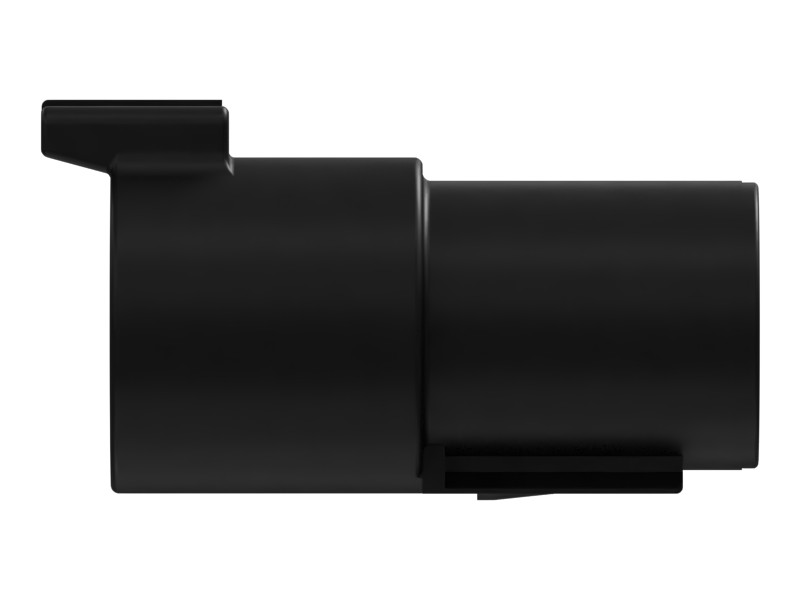

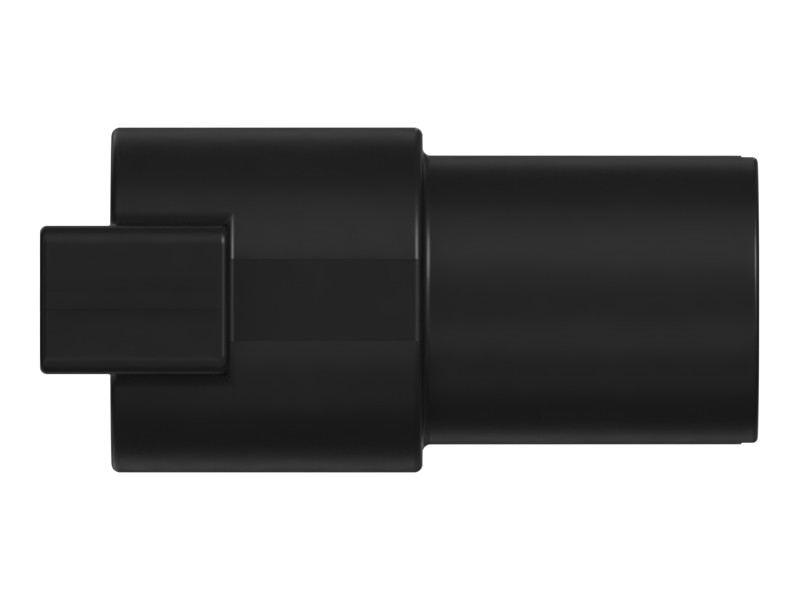

127-5484 1-Pin Connector Receptacle

Description

Cat Receptacle Connector Groups use a pin-and-socket connection system to provide reliable electrical connections in a range of electrical applications on Cat heavy-duty equipment.

Features

• Contact Type: Pin
• Contact Size: 4
• Number of Contacts: 1
• Connector Series: DTCE
• Wire Size: 6-4 AWG
• Rated Current: 80 A
• Housing Material: Polyetherimide
• Color: Black
• ROHS compliant
• Easy to connect and disconnect

Applications

Cat receptacle connector groups provide a reliable mating connection between wires or between a wire and equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.

Specifications

Compatible Equipment

• Generator Sets: 3516C, C9, G3516, 3512B, C7.1, C4.4, C7.1DE200E, C4.4DE88E0
• Compactors: CS56B, CB16, CS-54, CS-56, CB-44B, CP12 GC, CP11 GC, CS12, CB-64B, CS78B, CS-583D, CS11, CB-66B, CS12 GC, CP56B, C9.3B, CS68B, CS74B, C13B, CB15, CB13, CB10, CS-54B
• Engines: C32, C7, C13, C15, C18, C175-16
• Excavators: 349D2, 349D2 L, 320D, 326D2, 305, 329D2 L, 336D2, 349D, 303, 326D2 L, 303.5E2 CR, 330, 329D, 336D, 306E, 305E2 CR, 340, 365C, 349D L, 345D L, 345D, 385B, 345C, 385C L, 385C FS, 345C L, 385C, 352, 120 GC, 329D L, 336D L, 323D L, 328D LCR, 320D L, 314D CR, 323D2 L, 324D L, 315D L, 336D2 L, 323D2, 365B, 345B, 365C L, 3516E, 365B L, 312D L, 330D2, 323D, 312D, 320D3, 330D2 L, 324D, 3516B, 320D FM, 330D, 312D2, 314D LCR, 320D RR
• Asphalt Pavers: AP-600D
• Skid Steer Loaders: 226B3, 232D3, 236B3, 216B3, 239D3, 249D3, 232D, 246C, 226D3, 262C, 279C
• Motor Graders: 140 GC, 160K, 12K, 140K, 12H, 140H, 120H, 16H
• Wheel Excavators: IT14G
• Dozers: D11R, D11, D6M, D9R, D6G2 XL, D7R, D6N, D5N, D6R, D6G2 LGP, D5M, D3G, D7G2, D5G, D11N, D10R, D9T, D7R II, D4G, D7G
• Mini Excavators: 305.5, 305.5E2, 306, 303.5, 307E2, 305E2
• Wheel Loaders: RM500B, 924GZ, 924HZ, 928HZ, 928G, 950H
• Off-Highway Trucks: 785D, 796 AC, 798 AC, 730, 772G, 793D, 770G, 789, 789D, 735, 725, 785, 740, 777E, 777D, 777, 794 AC
