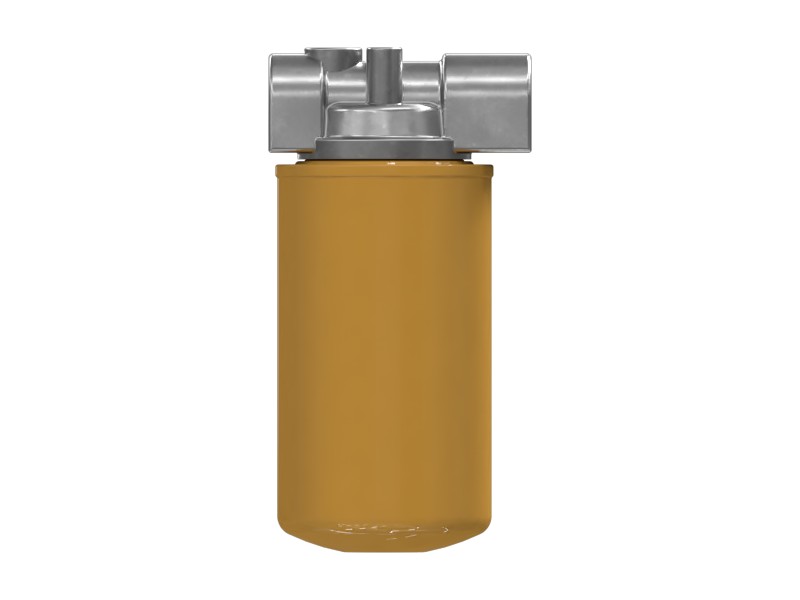

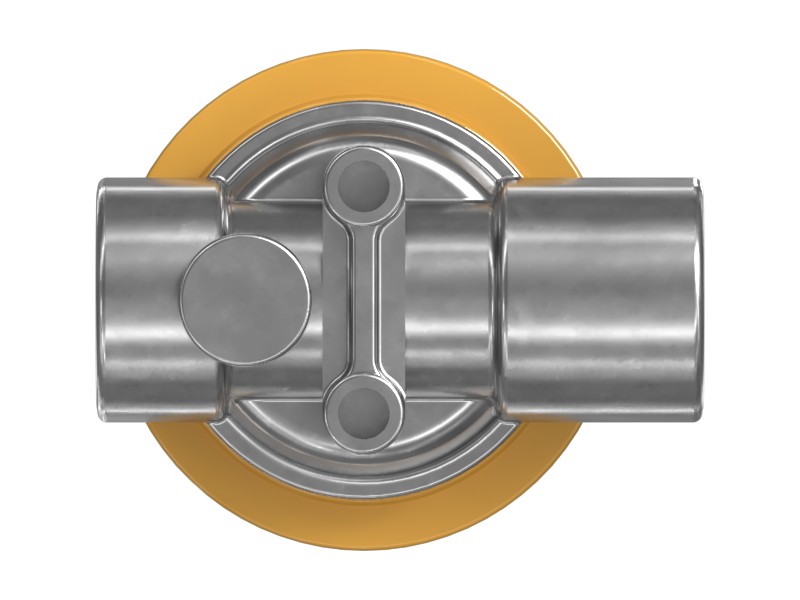

126-2075 High Efficiency Hydraulic/Transmission Filter

Description

High Efficiency hydraulic oil filters are made with special materials designed to provide greater protection in moderate to severe applications, protecting the system from accelerated wear.

Cat® hydraulic filters isolate contaminants and abrasives in high-pressure hydraulic systems to keep them from wearing down tight-tolerance systems, providing optimal protection. Cleanliness is key to keeping sensitive hydraulic systems properly lubricated.

Features

Cat High Efficiency Hydraulic and Transmission Filters provide a higher level of protection, including the following benefits:

Unique filter media provides superior protection
Improves debris retention
Improved collapse resistance

Specifications

Diameter	94 mm (3.71 in)
Width	118 mm (4.646 in)
Filter Type	Cartridge
Type	Oil
Length	227 mm (8.92 in)
Efficiency Rating	Advanced Efficiency

Compatible Equipment

Excavators: 330D L, 330C L, 312C, 325D L, 320B, 325B L, 330D, 330C, 325D, 320D L, 325C L, 324D, 311B, 320C, 324D L, 315C, 320D RR, 312C L, 325C, 330B, 325B, 328D LCR, 345B, M325D L MH, 311C, 345C, 314C, 345C L, 320C L, 320D

Machine Model	311B, 311C, 312C, 312C L, 314C, 315C, 320B, 320C, 320C L, 320D, 320D L, 320D RR, 324D, 324D L, 325B, 325B L, 325C, 325C L, 325D, 325D L, 328D LCR, 330B, 330C, 330C L, 330D, 330D L, 345B, 345C, 345C L, M325D L MH
Equipment Type	Excavators
Part Source	Genuine OEM

Machine Model

311B, 311C, 312C, 312C L, 314C, 315C, 320B, 320C, 320C L, 320D, 320D L, 320D RR, 324D, 324D L, 325B, 325B L, 325C, 325C L, 325D, 325D L, 328D LCR, 330B, 330C, 330C L, 330D, 330D L, 345B, 345C, 345C L, M325D L MH

Equipment Type

Excavators

Part Source

Genuine OEM

126-2075 High Efficiency Hydraulic/Transmission Filter
