Description

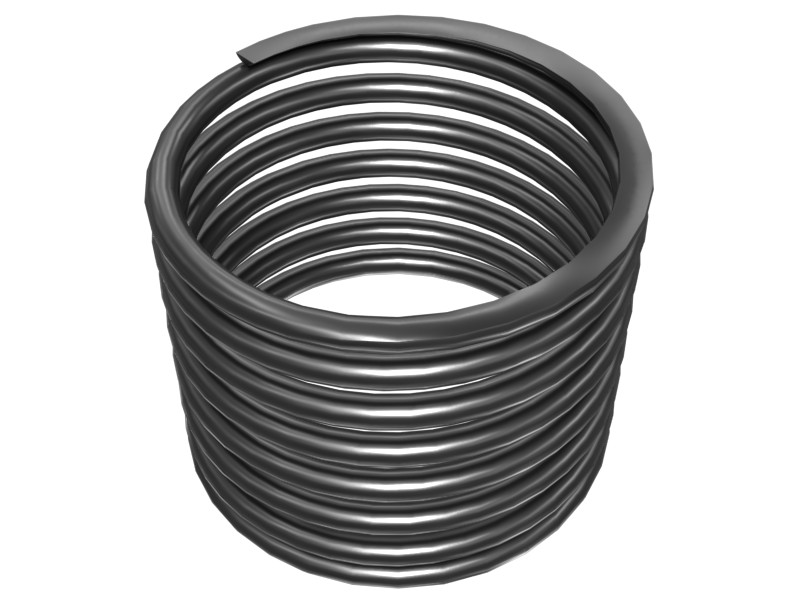

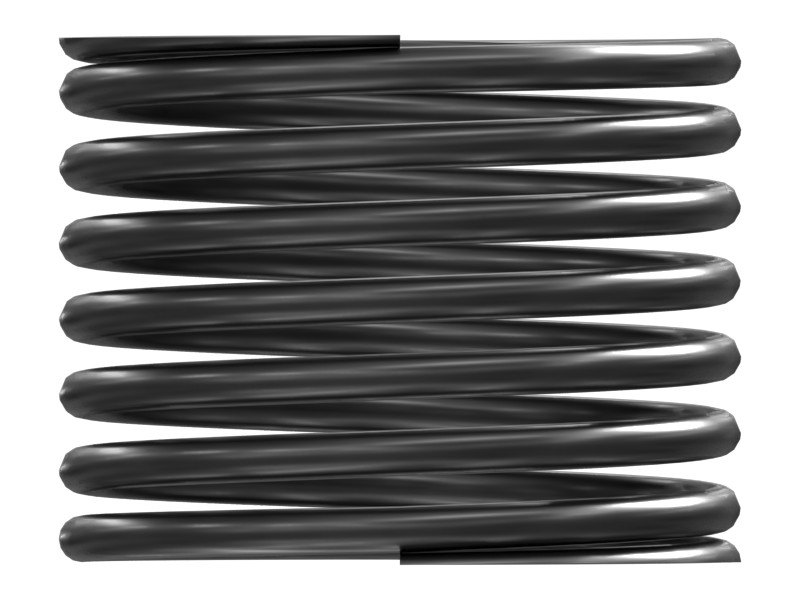

Spring parts (for example 126-1865) come in a variety of strengths and sizes to suit specific applications. Our springs are specially designed to deliver outstanding performance in a wide range of applications, providing excellent speed and load on the component. Based on internal testing and performance history under specific application conditions, you can trust Cat springs to deliver consistent component load, keeping your machine reliable and running properly.
Cat springs are manufactured to precise specifications for durability, reliability and high productivity over the life of the machine. You can trust Cat springs to help you build, maintain or rebuild. No one knows your equipment like we do, so trust Cat.
Features
- Springs meet or exceed current standards and material grades.
- Performance-based.
- Spring Rate N/MM: 0.754
- Assembled Length MM: 13.600
- Load at Assembled Length N: 56.095 ± 1.20
- Working Length MM: 40.000
- Load at Minimum Working Length N: 36.190 ± 2.895
- Solid Length MM: 9.960 Max
- Coil Direction: Right-Hand
- Total Coils: 8
- Active Coils: 6
Applications
- Cat springs are used in machine and vehicle suspension systems, cam follower groups, clutches, brake and valve groups, latch groups and door latches in shop applications.
- Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Spring Type | Compression |
|---|---|
| Length | 33 mm (1.299 in) |
| Outside Diameter | 17.700 mm (0.697 in) |
| Wire Size | 1.200 mm (0.047 in) |
Compatible Equipment
- Generator Sets: 3512B, C7.1
- Motor Graders: 316F
- Mini Excavators: 307, 305.5E, 303.5E, 307B, 305.5E2, 307E2, 307D, 305.5, 303.5D, 305E2, 306, 303.5C, 307C, 308E2, 305.5 GC
- Excavators: 330D L, 305E2 CR, 349F L, 323D L, 320D3 GC, 320D L, 325D L, 320D FM, 314D LCR, 330D, 320D GC, 336D2 XE, 320C, 311B, 315C, 324D L, 312C L, 328D LCR, 325C, 329D L, 336D L, 329E, 323D2 L, 336E, 313D2, 326D L, 336D2 L, 324D, 330C L, 320D2 L, 314C, 312D, 312D L, 329E L, 312D2, 336F L, 311D LRR, 315D L, 318D2 L, 320D RR, 330D2, 320E, 313F L, 318D L, 320D2 GC, 336F, 312D2 L, 335F LCR, 330C, 336D2 GC, 325B L, 313D2-GC, 313F LGC, 325D, 312C, 320D3, 312E, 336E L, 313D2 GC, 312E L, 336F L XE, 313D, 315F LCR, 336E LH, 320B, 330D2 L, 323D2, 312D2 GC, 312F, 336E LN, 323D, 320C L, 311C, 336F LN, 325C L, 336E H, 330B, 340D2 L, 374F L, 345D L, 345C, 349D L, 345B, 390F, 349E L VG, 345D, 349E, 352F, 345C L, 340D L, 349E L, 314D CR, 325B, 318D2, 320D, 320D2, 336D2, 329D, 306E2, 336D, 329D2 L, 308D, 306E, 326D2, 326D2 L, 305C CR, 329D2, 303C CR, 303.5E2 CR, 305, 308E, 307E, 349D2, 349D2 L, 390F L, 349D, 374F, 303
- Skid Steer Loaders: 313D2 LGP
