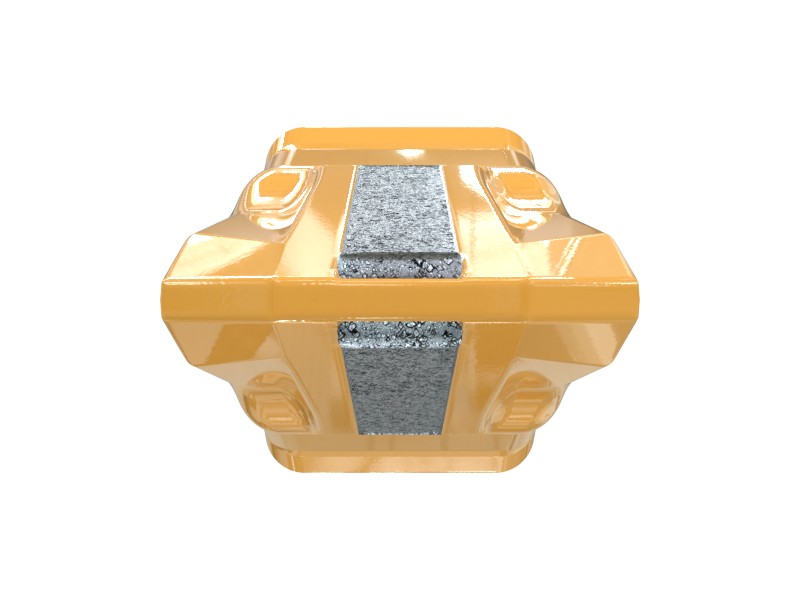

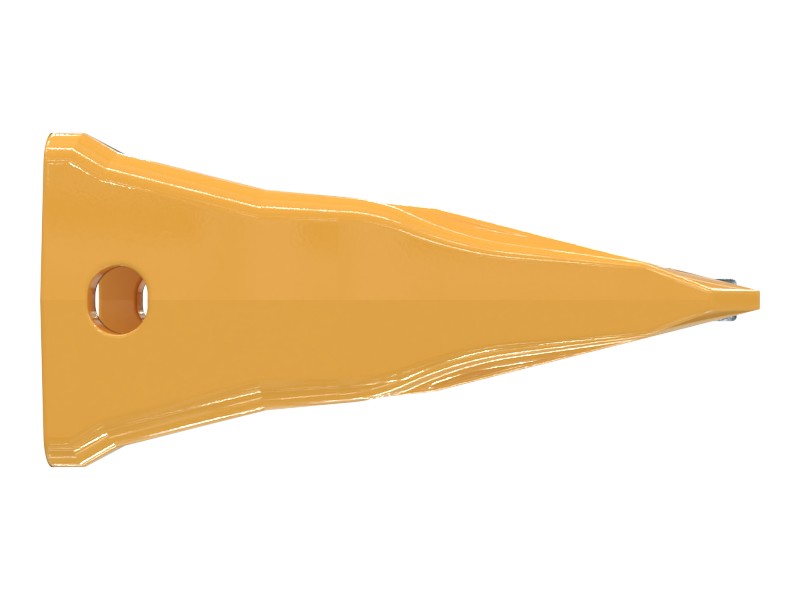

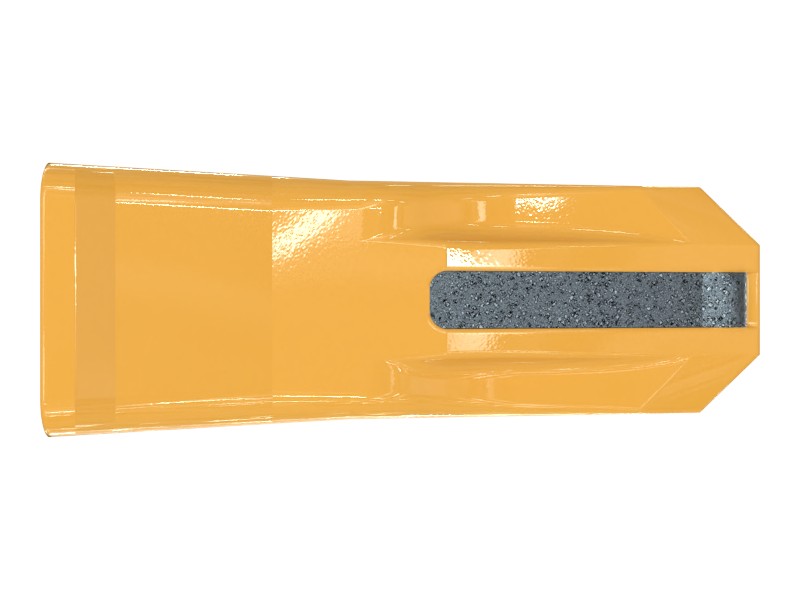

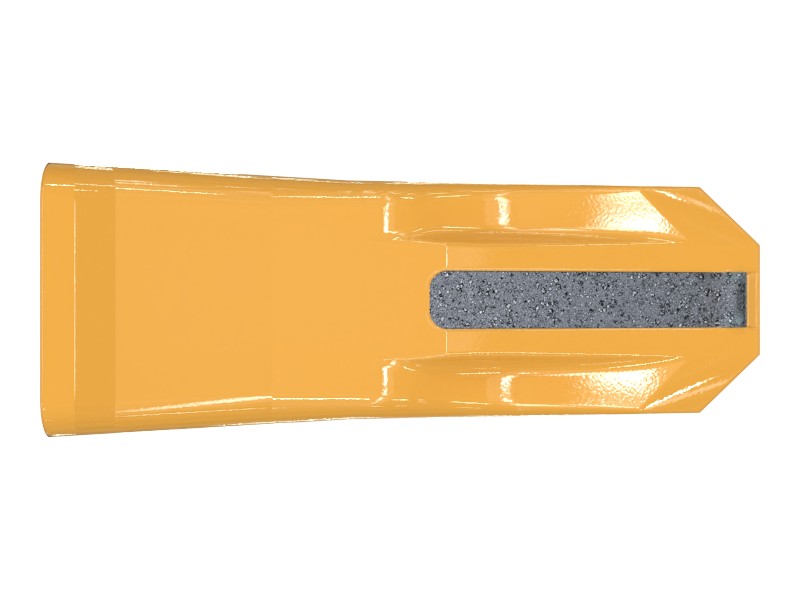

125-8309 Bucket Penetration Tip
J300 Penetration ARM Tip
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Cat® J Series Tips offer unmatched manufacturing precision to protect your machine's bucket from damage. Our Ground Engaging Tools (GET) are designed around the inherent characteristics of your Cat equipment to deliver consistently superior protection.
Genuine Cat bucket tips use an industry-standard side-pin design that suits a wide range of applications and increases the versatility of your equipment. They feature a standard pin and retainer system for quick installation and removal. You can also upgrade with our innovative hammerless J Series CapSure™ system to make your work easier.
Penetration end bits have 50% less leading edge cross-sectional area, providing exceptional penetration in highly compacted material. The single center rib self-sharpens as it wears, extending wear life and reducing downtime.
These Genuine Cat® tips include Abrasion Resistant Material (ARM), adding approximately 60% more wear material to the tip body. This can provide up to five times the wear life of a standard tip. Tough and durable, the tips are cast from steel that holds its hardness for a long wear life, so your machine delivers the performance you need. Always choose Genuine Cat Ground Engaging Tools to protect your investment.
Features
- 50% smaller leading edge cross-sectional area
- Single center rib self-sharpens as it wears
- ARM wears around the profile to improve penetration
Applications
- Highly abrasive, highly compacted material
Specifications
| Material | Boron Steel |
|---|---|
| End Bit Size | J300 |
| Size | J300 |
| Series | J Series |
| End Bit Length | 223 mm |
| Front Width | 74 mm (2.913 in) |
| Rear Width | 92.4 mm (3.638 in) |
| Shape | Penetration |
| Overall Length | 223 mm (8.78 in) |
| Rear Height | 108 mm (4.252 in) |
| Wear or Durability | ARM |
Additional information
| Part Source | Genuine OEM |
|---|
