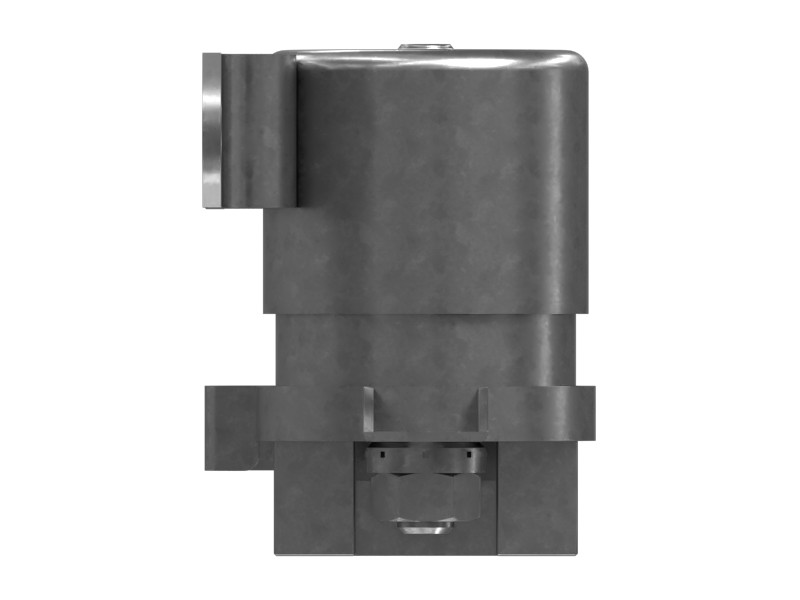

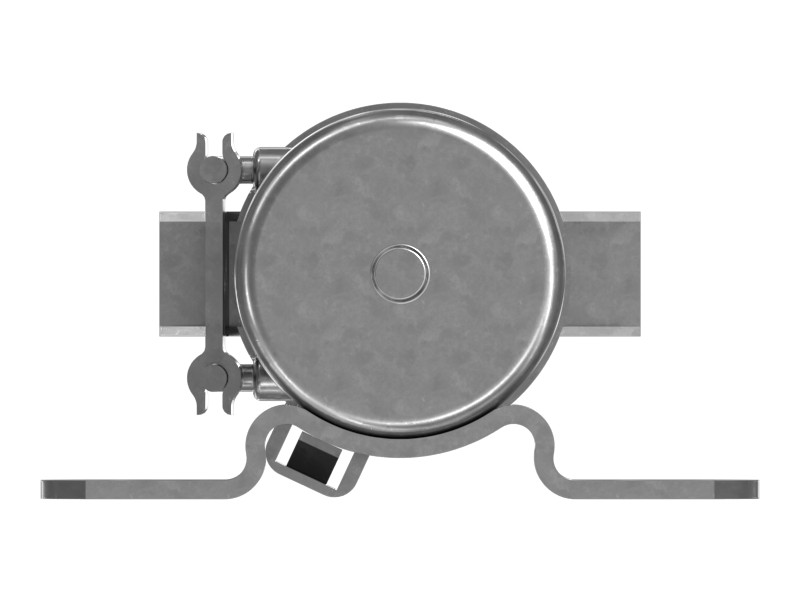

125-1302 24 Volt Magnetic Switch
Cat® 24 Volt Circuit Breaker Panel Magnetic Switch that uses a magnetic field to open and close a circuit
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat parts ensure your equipment runs at its best. The Cat magnetic contactor switch is an electromechanical switch used to safely turn high-current components on or off.
Features
- 2-bolt mounting
- 2-pin connector
- Highly durable
Applications
Used in the electrical systems of heavy-duty equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information. Cat components are built to work in heavy-duty applications, including severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, humidity, corrosion, and excessive dust.
Specifications
| Material | Carbon Steel |
|---|---|
| Length | 230 (Cable) mm (9 (Cable) in) |
| Temperature | -40° to 121° °C (-40° to 250° °F) |
Compatible Equipment
- Generator Sets: 3512B, G3516C, C9, C4.4, G3516, 3516C
- Track Loaders: 824G, 816F, 826H, 834H, 826G
- Cold Planers: PL87, PL83
- Engines: C15, C13, C11, C7, C27, C32, C18
- Excavators: 329D, 336D2, 336D, 390D L, 349D, 349D2 L, 374D L, 349D2, 3456, 320D2, 320D, 308D, 330D L, 328D LCR, 325C, 313D2 GC, 329D L, 330C, 325D L, 330C L, 320C, 330D, 314C, 324D, 325C L, 325B L, 318D2 L, 320D2 GC, 312C, 336D L, 336D2 L, 312D2, 325D, 311D LRR, 320B, 312D, 313D2, 311C, 315C, 312D2 L, 336D2 XE, 324D L, 311B, 313D, 621G, 385B, 365B, 385C L, 345D L, 349D L, 345C, 390D, 365C L, 385C FS, 3516B, 345B, 3508B, 385C, 345C L, 3512C, 315D L, 325B, 365C, 345D, 365B L, M325D L MH, 320D FM, 318D L, 326D L, 312D2 GC, 312C L, 637E, 313D2-GC, 657G, 340D L, 340D2 L, 637G, XQP200, 336D2 GC, 3516E, 330B, 312D L, 318D2, 323D L
- Skid Steer Loaders: 24, 3126B, 313D2 LGP
- Motor Graders: 140G, 14M, 120H, 14
- Compactors: C-15, C-9
- Dozers: D9R, D6M, D6R II, D7R II, D6N, D5N, D6R, D8R, D6T, D7R, D6R III, D9T, D5M, D6R XL, D8T, D10T, D11R, D10R, D11T
- Mini Excavators: 307D
- Wheel Loaders: 972L, 966H, 980H, 972H, 962G, 972G, 950H, 966K, 980G, 990H, 950G, 966L, 986H, 988H, 980L
