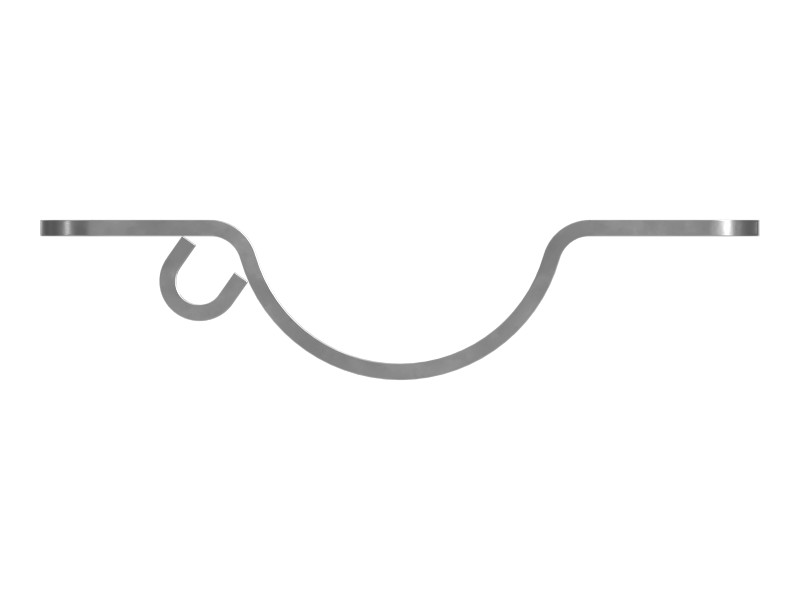

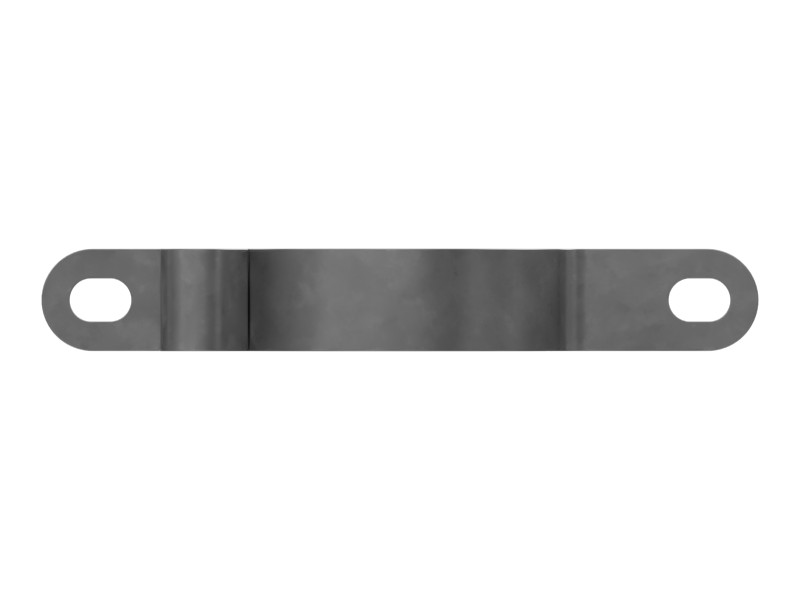

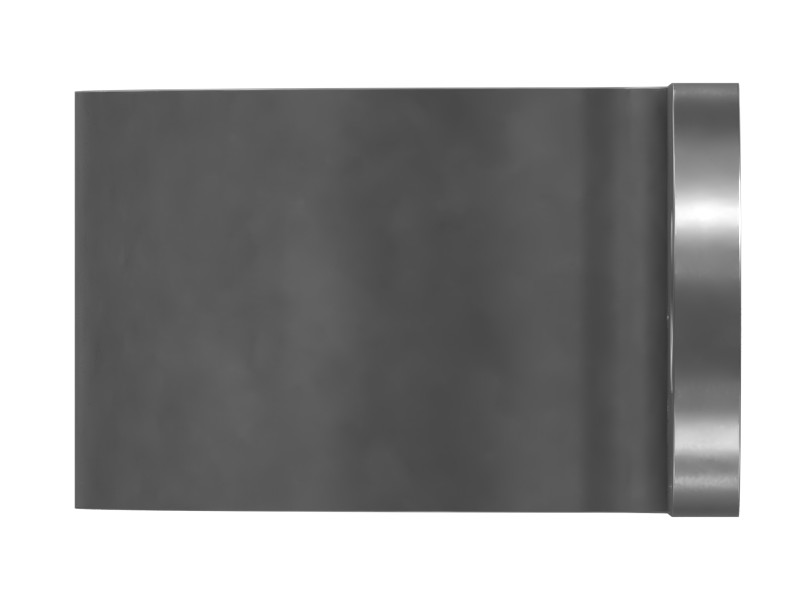

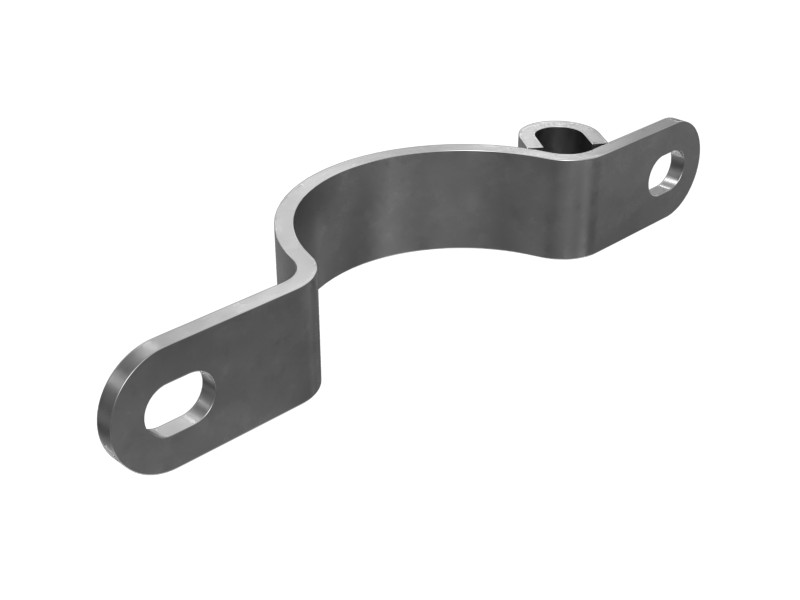

124-6333 Single Tube Half-Ring Saddle Clamp
Cat® 76.2 mm Diameter Single Tube Steel Half Saddle Clamp (with Strap)
Description
The single-tube half-loop saddle clamp is used to secure a tube in a fixed position. Its saddle fits over the tube, and a bolt or screw tightens the saddle down onto the tube to hold it firmly in place. This clamp assembly consists of a saddle clamp and a band welded to the clamp, which prevents the clamp from rotating or loosening.
Attributes
- Provides a band with a minimum weld length of 20 mm, locked to the flange.
- For clamping tubes with an outside diameter of 76.2 mm
- Comes with 2 mounting slots and a hoop for use with M10 fasteners
- Made of steel for high strength and wear resistance.
Applications
The single-tube half-loop saddle clamp, together with the other half clamp, is used to support or secure a tube by means of a band and fasteners.
Specifications
| Mounting Hole Spacing | 153 mm (6.02 in) |
|---|---|
| Fits Bolt Size | M10 mm (3/8 in) |
| Inside Diameter | 76.2 mm (3 in) |
| Length | 183 mm (7.20 in) |
| Material | Alloy Zinc |
| Material Thickness | 4 mm (0.15 in) |
| Width | 26 mm (1.02 in) |
Compatible Equipment
- Generator Sets: 3516C, 3512B
- Motor Graders: 3606
- Excavators: 3512C, 3516E, 3516B
- Off-Highway Trucks: 793D, 793, 777D, 777
Additional information
| Machine Model | 3512B, 3512C, 3516B, 3516C, 3516E, 3606, 777, 777D, 793, 793D |
|---|---|
| Equipment Type | Excavators, Motor Graders, Off-Highway Trucks, Generator Sets |
| Part Source | Genuine OEM |
