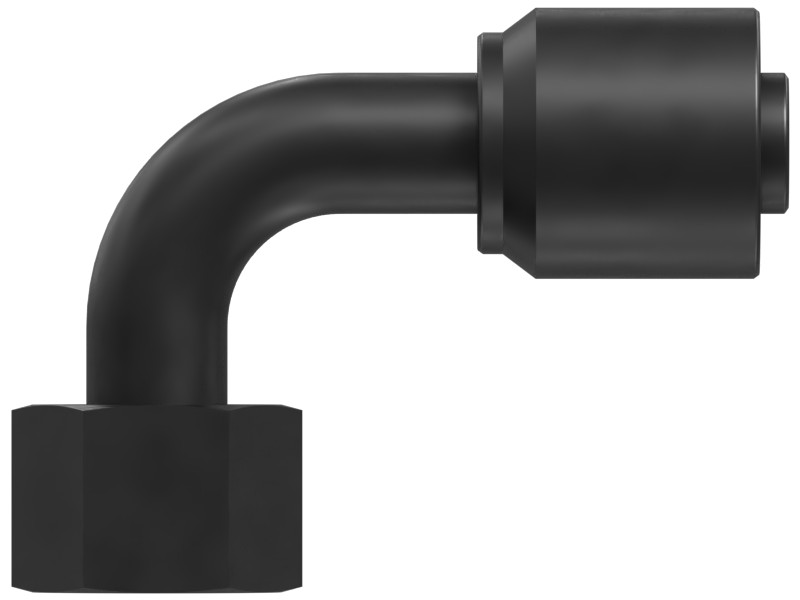

Cat Permanent Coupling ORFS – 90 Degree Female Swivel
Specifications
| Hose Inside Diameter | 19.05 mm (0.75 in) |
|---|---|
| Connection Nominal Size | 12 |
| Bend Angle | 90 Degrees |
| Hose Fitting Category | MN |
| Connection Standard | ORFS-SAE J1453 |
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
| Fitting | Permanent |
| Material | Alloy Zinc |
| Coating | Zinc Plated |
| Shape | 90 Degrees |
| Connector Type | -12 ORFS Female Fitting |
| Thread Size | 1 3/16-12 in |
| Drop Length | 48 mm (1.89 in) |
| Length | 88 mm (3.46 in) |
| Cutoff Factor | 53 mm (2.09 in) |
| Recommended Hose Size | 19.1 mm (0.75 in) |
| Compatible | SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, Coolant Hose, SAE 100R19, SAE 100R4 |
| Hex Size | 34.92 mm (1.37 in) |
| Seal Type | NBR 6V-9746, FKM 228-7092 |
| Description | Permanent Coupling 12MN |
| Application | Permanent coupling for use with hydraulic hose. Contact MECHSC for more information |
