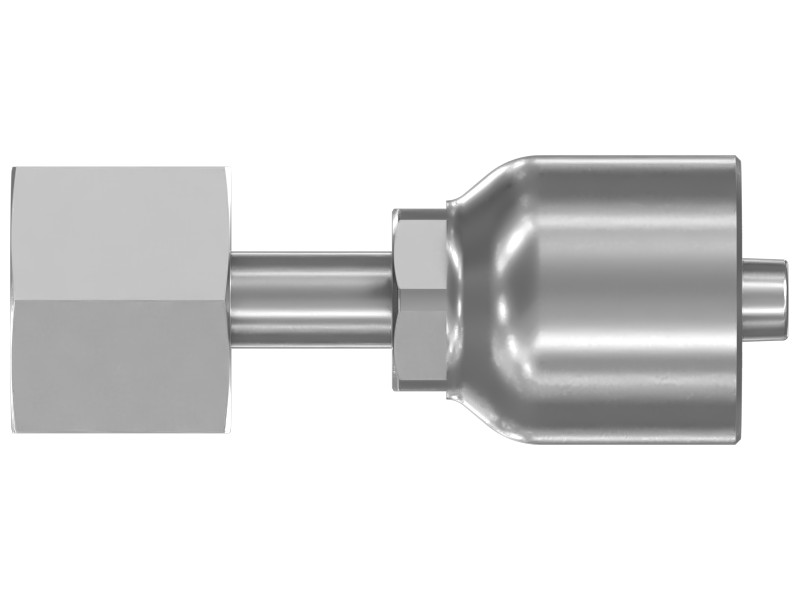

Cat Permanent Coupling ORFS – Straight Female Swivel
Specifications
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
|---|---|
| Hose Inside Diameter | 6.35 mm (0.25 in) |
| Connection Standard | ORFS-SAE J1453 |
| Connection Nominal Size | 6 |
| Hose Fitting Category | MN |
| Fitting | Permanent |
| Material | Medium Pressure Hose |
| Coating | Zinc Plated |
| Shape | Straight |
| Connector Type | -6 ORFS Female Fitting |
| Thread Size | 11/16-16 in |
| Length | 49 mm (1.93 in) |
| Cutoff Factor | 28 mm (1.1 in) |
| Recommended Hose Size | 6.4 mm (0.25 in) |
| Compatible | SAE 100R1, SAE 100R5, SAE 100R2, SAE 100R16, SAE J1402, Coolant Hose |
| Hex Size | 20.6 mm (0.81 in) |
| Seal Type | NBR 6V-8397, FKM 228-7089 |
| Description | Permanent Coupling 4MN |
| Application | Permanent coupling for use with hydraulic hose. Contact MECHSC for more information |
Compatible Equipment
- Motor Graders: 120
- Dozers: H195
- Mini Excavators: 307
- Excavators: 330D L, 325D L, 314C, 315D L, 320D L, 324D L, 320C, 328D LCR, 311C, 416E, 320D
- Wheel Loaders: R1300G
- Skid Steer Loaders: 216B3, 226B3
Additional information
| Machine Model | 120, 216B3, 226B3, 307, 311C, 314C, 315D L, 320C, 320D, 320D L, 324D L, 325D L, 328D LCR, 330D L, 416E, H195, R1300G |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Loaders, Skid Steer Loaders, Dozers, Motor Graders |
| Part Source | Genuine OEM |
