Description

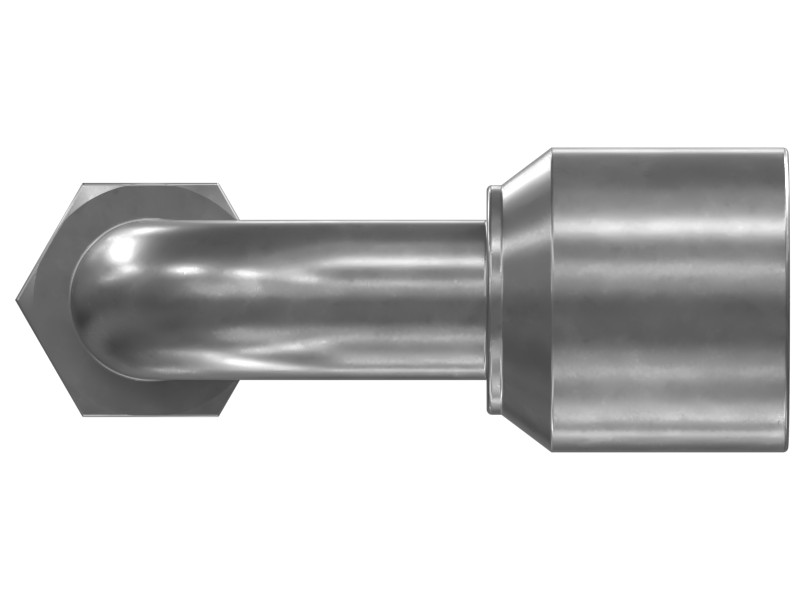

Cat Permanent Coupling JIC – 90 Degree Female Swivel
Specifications
| Connection Standard | 37 deg Flare-SAE J514 |
|---|---|
| Bend Angle | 90 Degrees |
| Hose Inside Diameter | 25.4 mm (1 in) |
| Hose Fitting Category | MN |
| Connection Nominal Size | 16 |
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
| Fitting | Permanent |
| Material | High Pressure Hose |
| Coating | Zinc Plated |
| Shape | 90 Deg |
| Connector Type | -16 JIC Female Fitting |
| Thread Size | 1 5/16-12 in |
| Drop Length | 54 mm (2.13 in) |
| Length | 118 mm (4.65 in) |
| Cutoff Factor | 79 mm (3.11 in) |
| Recommended Hose Size | 25.4 mm (1 in) |
| Compatible | SAE 100R1, SAE 100R2, SAE 100R4, SAE 100R5, SAE 100R16, Coolant Hose |
| Hex Size | 38.1 mm (1.5 in) |
| Description | Permanent Coupling 16MN |
| Application | Permanent coupling for use with hydraulic hose. Contact MECHSC for more information |
Compatible Equipment
- Wheel Loaders: R1700G, R1700 II
- Asphalt Pavers: AD45
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
