Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Size | 0.750 mm (0.03 in) |
|---|---|
| Thread Direction | RH |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Size (Diameter × Pitch) | 3/4×16 mm |
| Locking Feature | None |
| Bolt Length | 194 mm (7 2/3 in) |
| Material | Alloy Zinc |

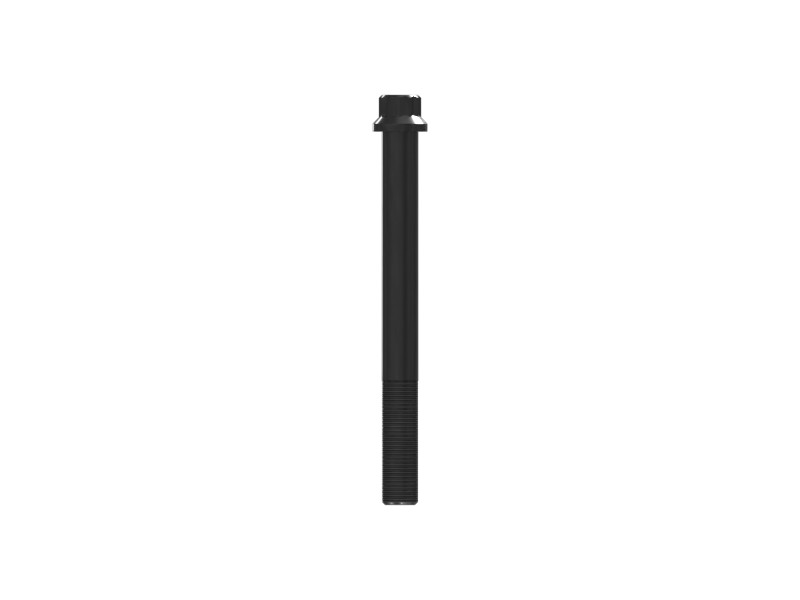

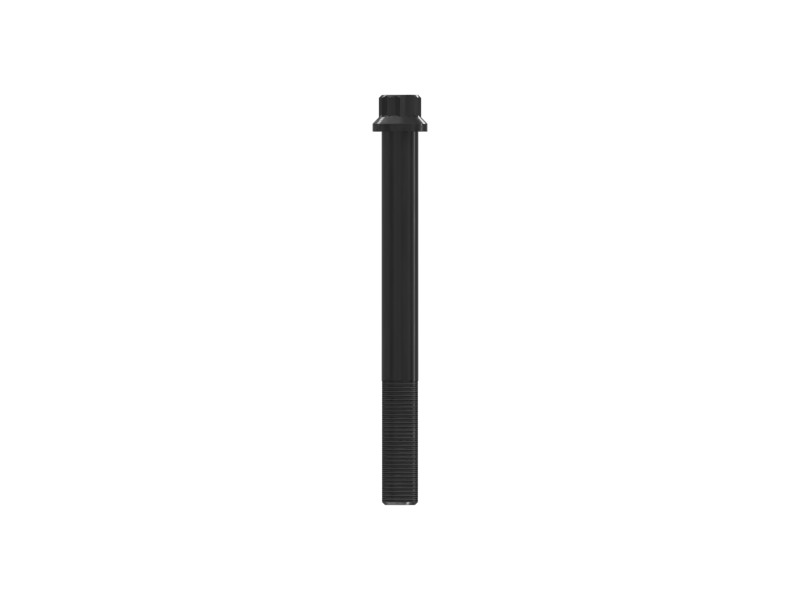

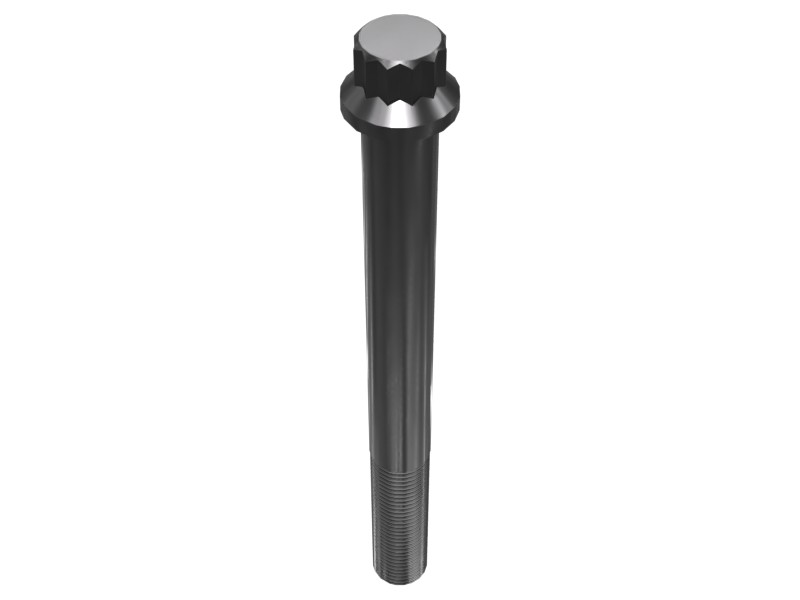

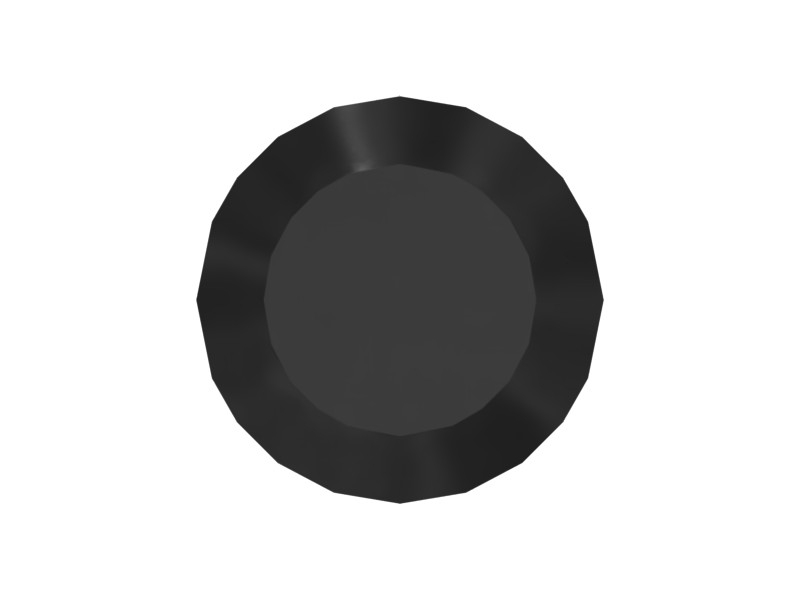

| Bolt Type | 12-Point Head Bolt |
| Coating | Plain With Corrosion Inhibitor or Black Oxide With Corrosion Inhibitor |
| Handle Length | 130.5 mm (5.14 in) |
| Flange Diameter | 1.13 in |
Compatible Equipment
- Generator Sets: 3406C, 3406B, C9
- Track Loaders: 993, 990K, 826K, 824G, 992, 824C, 826H, 834H, 826G
- Cold Planers: PM622, PL83, PL87, PM620, PM-200
- Compactors: 824K, 834K, 825K, C-15
- Engines: C32, C15, C27, C18
- Excavators: 374D L, 3456, 390F L, 390D L, 374F, 374, 395, 6015, 6030, 365C, 385B, 6040, 657G, 637E, 637G, 637K, 374F L, 385C FS, 6018, 3508B, 6020B, 385C, 390F, 390D, 621G, 6015B, 6015 FS, 385C L, 365C L, 3101
- Asphalt Pavers: AD63, AD30, AD45
- Skid Steer Loaders: 24
- Wheel Excavators: MD6310, MD6250, MD6200
- Dozers: D11T, D11R, D10N, D8, D9, D6T, D10T2, D10R, D10T, D11, D8N, D8T, D9T, D9R, D8R, D10
- Wheel Loaders: 986H, 834, 988K, 980G, 980H, RM500B, 990H, 988G, 988H, 992D, R2900G, R3000H, R2900 XE, 836
- Off-Highway Trucks: 777, 777E, 745, 740, 740B, 772G, 740 GC, 777D, 775G, 773, 770G, 735, 773F, 745C
Additional information
| Machine Model | 24, 3101, 3406B, 3406C, 3456, 3508B, 365C, 365C L, 374, 374D L, 374F, 374F L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 390F, 390F L, 395, 6015, 6015 FS, 6015B, 6018, 6020B, 6030, 6040, 621G, 637E, 637G, 637K, 657G, 735, 740, 740 GC, 740B, 745, 745C, 770G, 772G, 773, 773F, 775G, 777, 777D, 777E, 824C, 824G, 824K, 825K, 826G, 826H, 826K, 834, 834H, 834K, 836, 980G, 980H, 986H, 988G, 988H, 988K, 990H, 990K, 992, 992D, 993, AD30, AD45, AD63, C-15, C15, C18, C27, C32, C9, D10, D10N, D10R, D10T, D10T2, D11, D11R, D11T, D6T, D8, D8N, D8R, D8T, D9, D9R, D9T, MD6200, MD6250, MD6310, PL83, PL87, PM-200, PM620, PM622, R2900 XE, R2900G, R3000H, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
