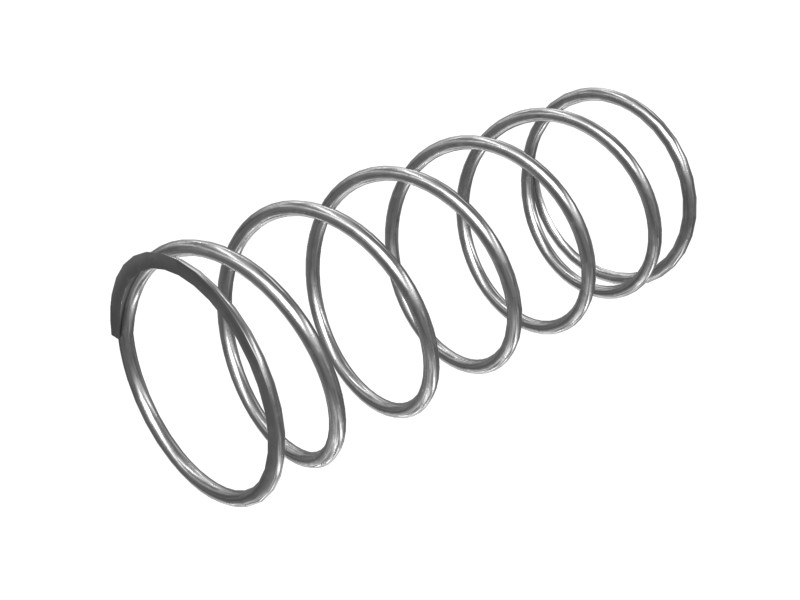

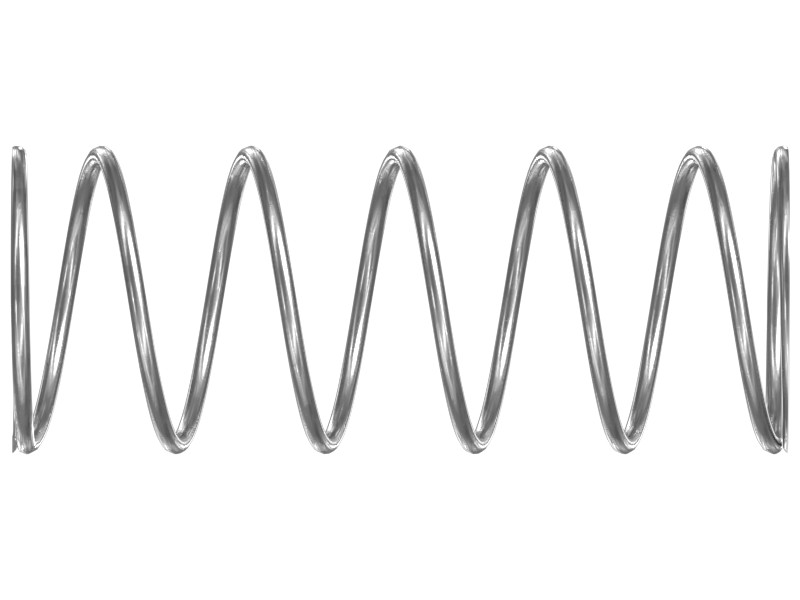

122-7695 10.8 mm Diameter Compression Spring

Description

Compression springs come in a variety of strengths and sizes to suit specific applications. Compression springs feature a helical design that gains compression and tension through spring compression (shortening) as more weight is applied. One of the greatest advantages of compression springs is their ability to resist the movement of another component. This characteristic allows a very small compression spring to integrate with the internal structure and function of the gauge. They are open-coil helical springs wound or constructed to resist compression along the axis of wind. Helical compression is the most common metal spring configuration. These helical springs can work independently but are often assembled over a guide rod or fitted inside a bore.

Attributes

• Spring ends are closed and ground to reduce buckling and improve seating.
• Spring Rate: 0.3349 N/mm.
• Withstands a load of 5.155 N with a minimum working length of 22 mm.

Applications

The compression spring is used to control fluid flow by changing the size of the flow passage in response to signals from the controller. Used for anything that requires energy to be stored in the machine and in the shop. Compression springs are available in many types, including cylindrical, conical, and double-conical springs.

Specifications

Compatible Equipment

• Excavators: 349F L, 345C, 352F, 349D L, 345B, 345C L, 345D, 349E L, 374F L, 345D L, 325D L, 349E, 349E L VG, 390F, 390F L, 349D2 L, 349D, 349D2, 374F
