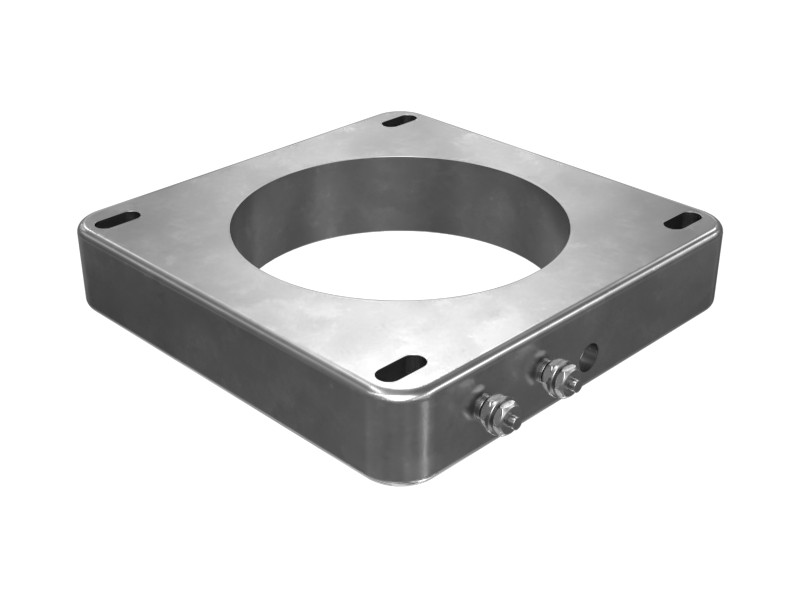

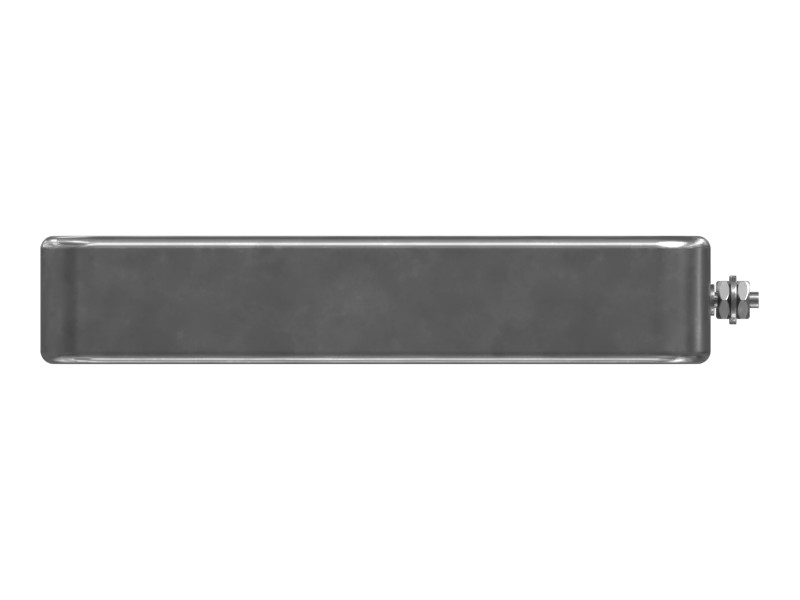

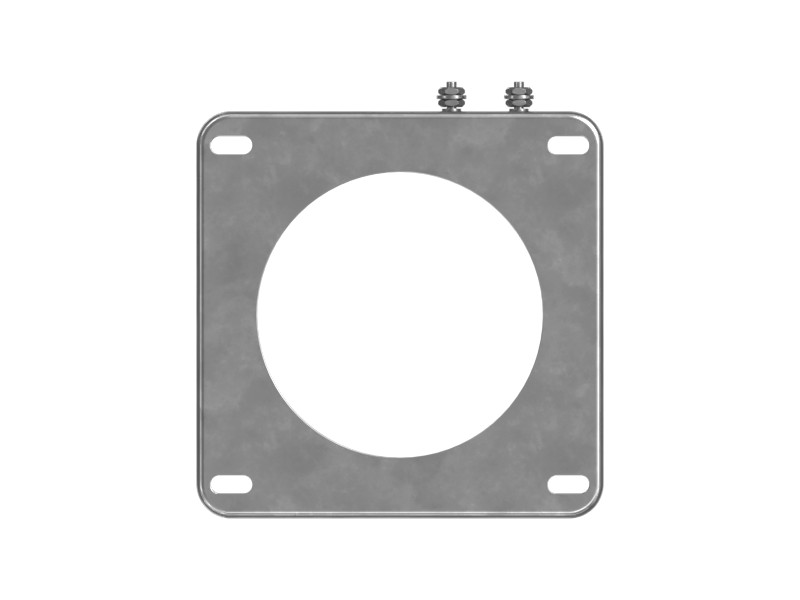

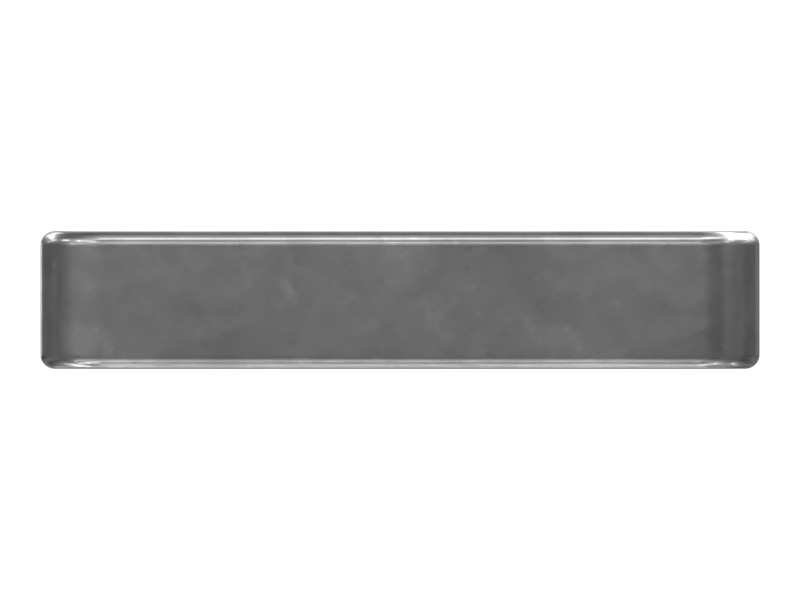

122-6589 600 Volt Current Transformer
Cat® Current Transformer for Precise Current Measurement, Safety, and Load Management
Description
Cat current transformers accurately sense current in the power supply. Cat parts help your equipment run at its best, giving you peace of mind.
Features
- Designed to work with other Cat parts to ensure the equipment reaches its full potential
- Secondary terminals with two brass studs, two brass nuts, one washer, and one lock washer
- Ratio: 2500:5
- 600 V, UL/CSA, 60 Hz
- Metering Class: 1.2 B0.1, 2.4 B0.2
- Rating Factor: 1.33
- Window Diameter: 107.95 mm (4.25 in)
Applications
Cat components operate in heavy-duty applications with severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, humidity, corrosion and dust.
Specifications
| Material | Nylon, 6, 6/12, 6/6 Plastic |
|---|---|
| Length | 153.2 mm (6.03 in) |
| Width | 164.3 mm (6.46 in) |
| Height | 29.2 mm (1.15 in) |
| Thread Size | 8-32 (Auxiliary Terminal) in |
Compatible Equipment
- Generator Sets: 3516C, 3512B, 3406C, G3516, G3516C, 3512E
- Engines: C32, C27, C175-16
- Excavators: 3516B, 3512C, 3508B, 3516E
