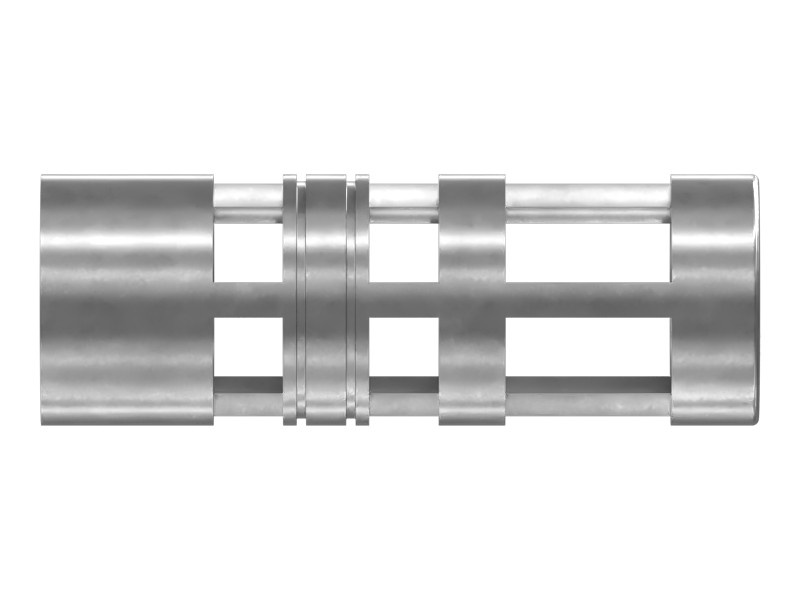

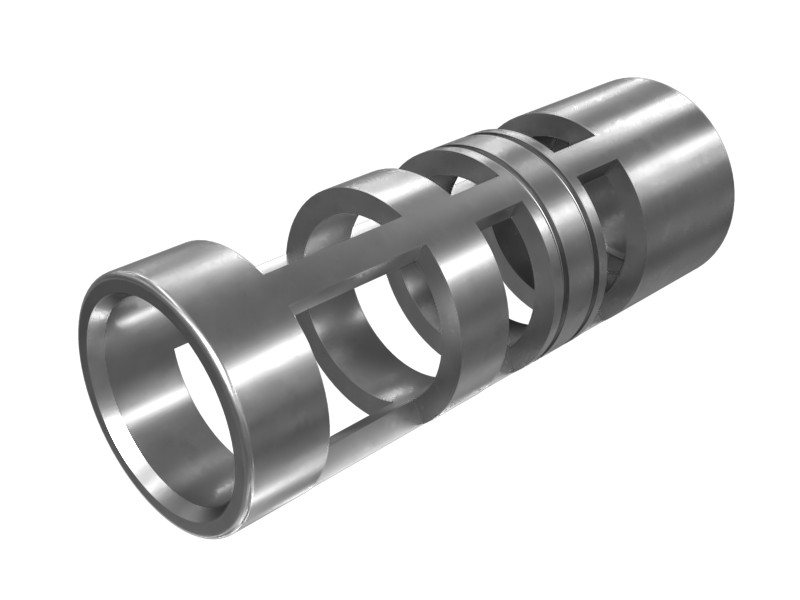

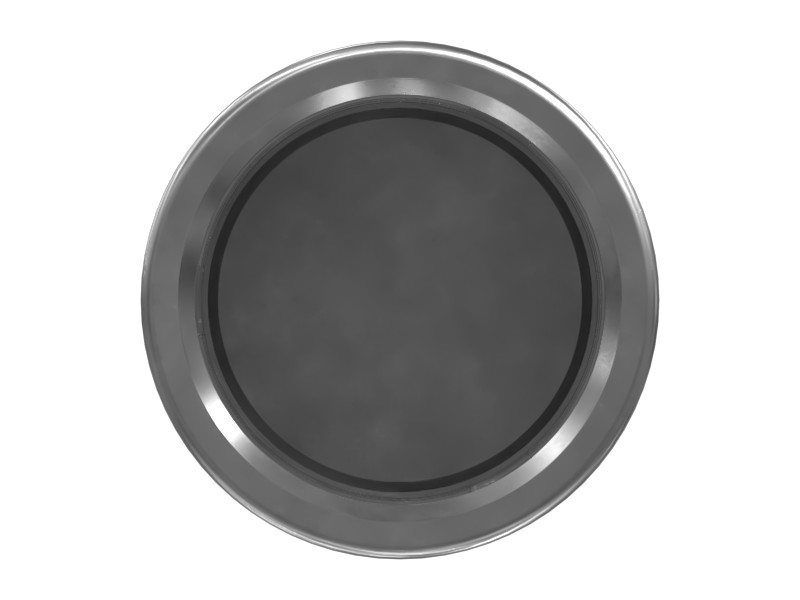

121-0685 30.04 mm ID Brake Sleeve
Cat® 30.04 mm ID brake sleeve in steering and braking systems
Description
Sleeve used with the valve spool in the brake housing of the steering and braking systems on Cat machines.
Features
- Material: Steel
- Inside Diameter: 30.040 mm (1.1826 in)
- Outside Diameter: 37.845 mm (1.4899 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Material Description | Steel |
| Length | 108.22 mm (4.260 in) |
| Inside Diameter | 30.040 mm (1.1826 in) |
| Outside Diameter | 37.845 mm (1.4899 in) |
Compatible Equipment
- Dozers: D11, D11R, D11T
