Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

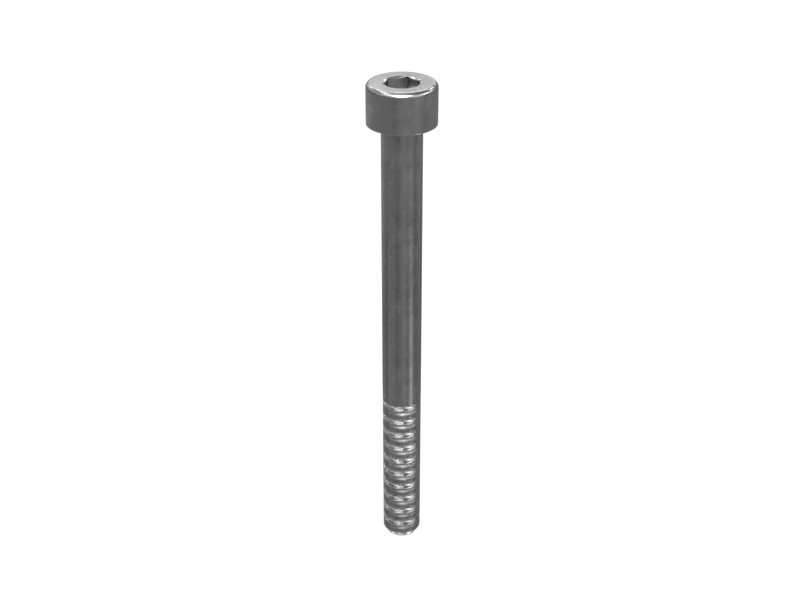

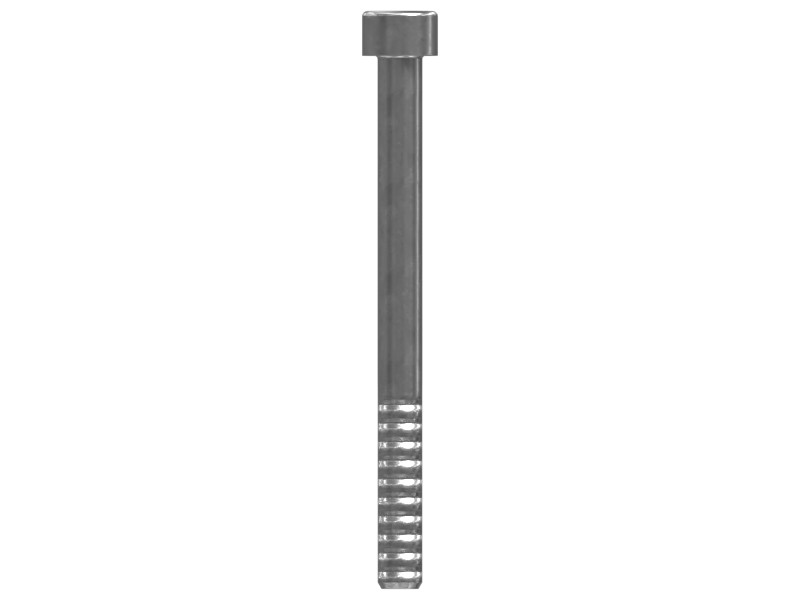

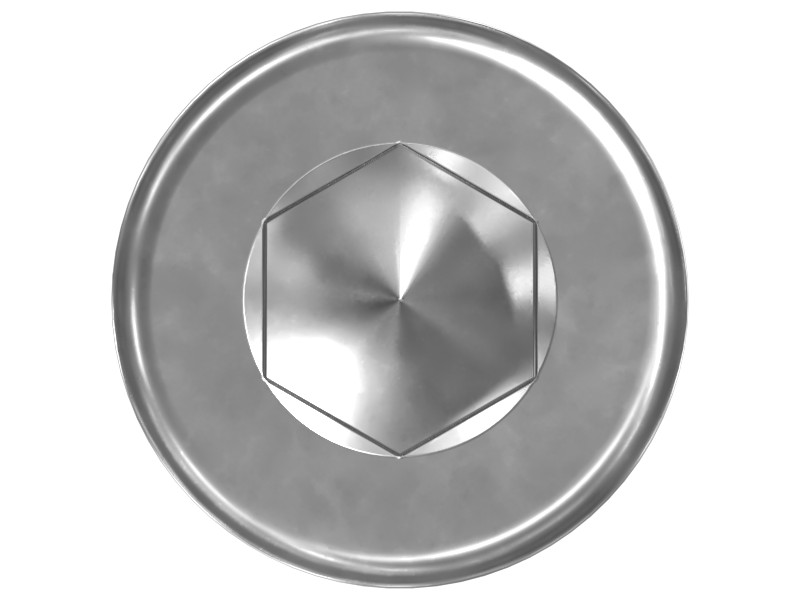

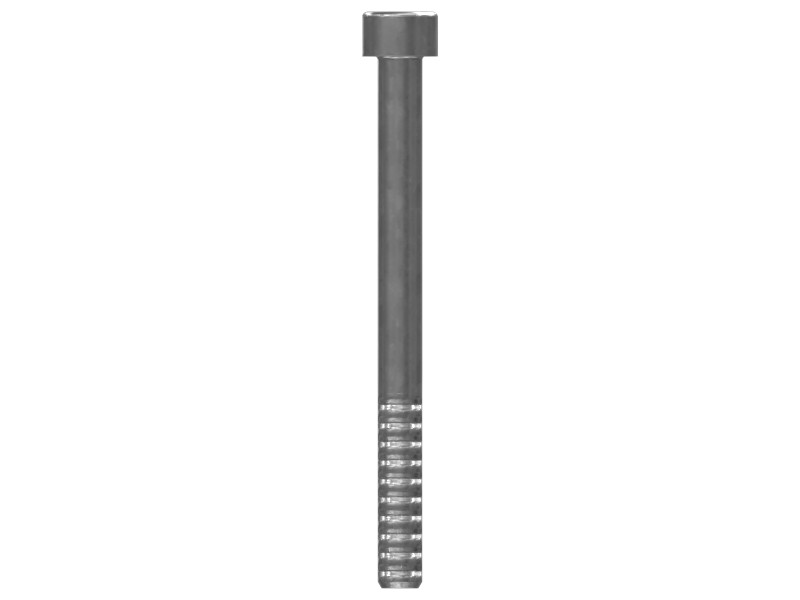

Socket head bolts are used in designs where there is not enough clearance for hex head bolts and assembly tools.
Features
- Cat fasteners are manufactured to precise technical specifications for durability, reliable performance, and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME, and SAE requirements.
- Cat bolts, nuts, and washers are specially designed to work together as a system to maximize clamping force.
- Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Bolt Type | Socket Head |
|---|---|
| Thread Direction | RH |
| Class or Grade | ISO 898-1 Class 12.9 |
| Locking Feature | None |
| Thread Size | M5 mm (0 in) |
| Thread Size (Diameter × Pitch) | M5X0.8 mm |
| Bolt Length | 60 mm (2.362 in) |
| Handle Length | 38 mm (1.496 in) |
| Material | STEEL |
| Coating | Zinc Plated |
Compatible Equipment
- Motor Graders: 120
- Wheel Excavators: M320, M315, M322D, M313D, M315D
- Dozers: D6K2, D10R
- Mini Excavators: 305E2, 305.5E2
- Excavators: 305E2 CR, 6060, 3512C, 303.5E2 CR
- Wheel Loaders: M314, 924GZ, 924HZ, R1300G
- Off-Highway Trucks: 785, 789, 793, 773F, 773D
- Asphalt Pavers: AP300F, AP355F
Additional information
| Machine Model | 120, 303.5E2 CR, 305.5E2, 305E2, 305E2 CR, 3512C, 6060, 773D, 773F, 785, 789, 793, 924GZ, 924HZ, AP300F, AP355F, D10R, D6K2, M313D, M314, M315, M315D, M320, M322D, R1300G |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Dozers, Motor Graders, Off-Highway Trucks, Asphalt Pavers |
| Part Source | Genuine OEM |
