Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These bolts are commonly used in engines and driveline. 12-point head bolts have high fatigue performance and fit designs that do not have enough clearance for hex head bolts.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size | M10 mm (0 in) |
|---|---|
| Locking Feature | None |
| Thread Direction | RH |
| Class or Grade | Cat/ISO 898-1 Class 11.9 |

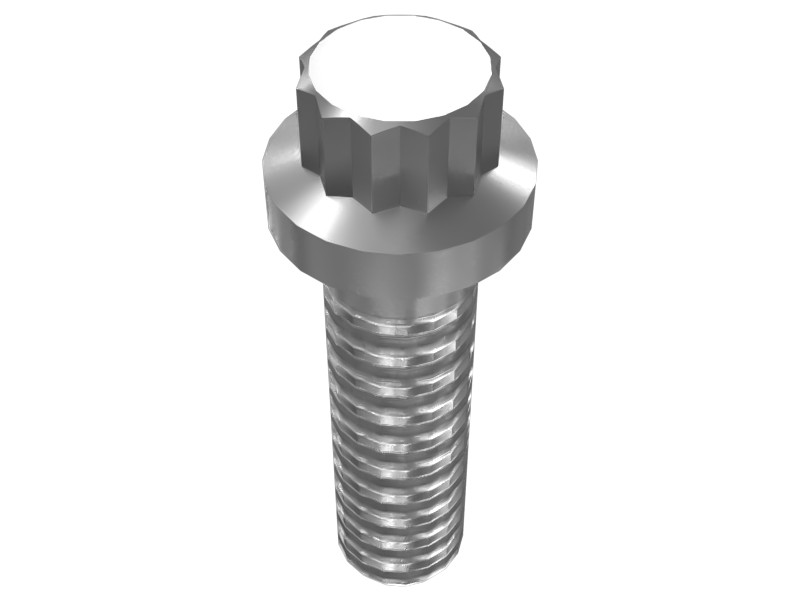

| Type | 12-Point Head Bolt |
| Bolt Length | 35 mm (1.378 in) |
| Material | Alloy Zinc |
| Bolt Type | 12 Point Head |
| Coating | Plain With Corrosion Inhibitor or Black Oxide With Corrosion Inhibitor |
| Thread Size (Diameter × Pitch) | M10X1.5 mm |
| Handle Length | 4.5 mm (0.177 in) |
| Flange Diameter | 16.27 mm |
Compatible Equipment
- Generator Sets: C4.4, 3516C, 3512E
- Track Loaders: 982, 953D
- Cold Planers: PL87, PL83, TH55-E70
- Compactors: CW-16, CB-44B, CW-34, CB16, CS-533C, CB-64B, CB-66B, CS-583D, CB-434D, CB10, CB15, CB13
- Engines: C7, C13, C32, C175-16
- Excavators: 3126, 329D, 120 GC, 621K, 6020B, 621H, M325D L MH, 3508B, 6030, 329D L, 325D, 324D, 325C, 324D L, 325B, 325D L, 325B L, 328D LCR, 325C L, 330C, 326D L, 320B
- Asphalt Pavers: AP655F
- Skid Steer Loaders: 3126B
- Motor Graders: 140H, 140 GC, 160K, 140K, 120H, 12H, 120, 12K, 140G, 16H
- Dozers: D8, D5M, D6N, D7E, D6M, D7, D8R, D8T
- Wheel Loaders: 950H, 980, 980H, 962G, 950G, 928G, 986H, 980L, 980G
- Off-Highway Trucks: 798 AC, 740, 745, 740 GC, 740B, 745C, 789D, 730, 725, 735, 725C2, 785D, 797F, 785, 789, 773, 793
Additional information
| Machine Model | 120, 120 GC, 120H, 12H, 12K, 140 GC, 140G, 140H, 140K, 160K, 16H, 3126, 3126B, 320B, 324D, 324D L, 325B, 325B L, 325C, 325C L, 325D, 325D L, 326D L, 328D LCR, 329D, 329D L, 330C, 3508B, 3512E, 3516C, 6020B, 6030, 621H, 621K, 725, 725C2, 730, 735, 740, 740 GC, 740B, 745, 745C, 773, 785, 785D, 789, 789D, 793, 797F, 798 AC, 928G, 950G, 950H, 953D, 962G, 980, 980G, 980H, 980L, 982, 986H, AP655F, C13, C175-16, C32, C4.4, C7, CB-434D, CB-44B, CB-64B, CB-66B, CB10, CB13, CB15, CB16, CS-533C, CS-583D, CW-16, CW-34, D5M, D6M, D6N, D7, D7E, D8, D8R, D8T, M325D L MH, PL83, PL87, TH55-E70 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
