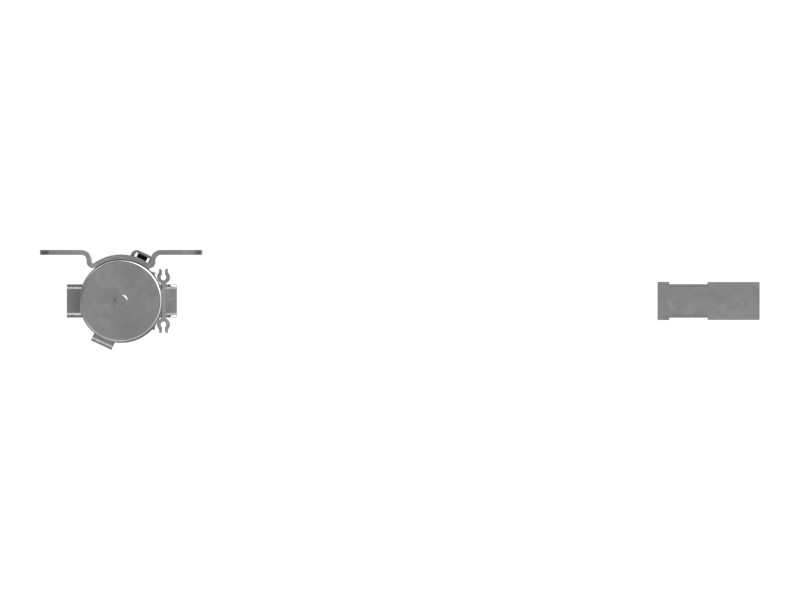

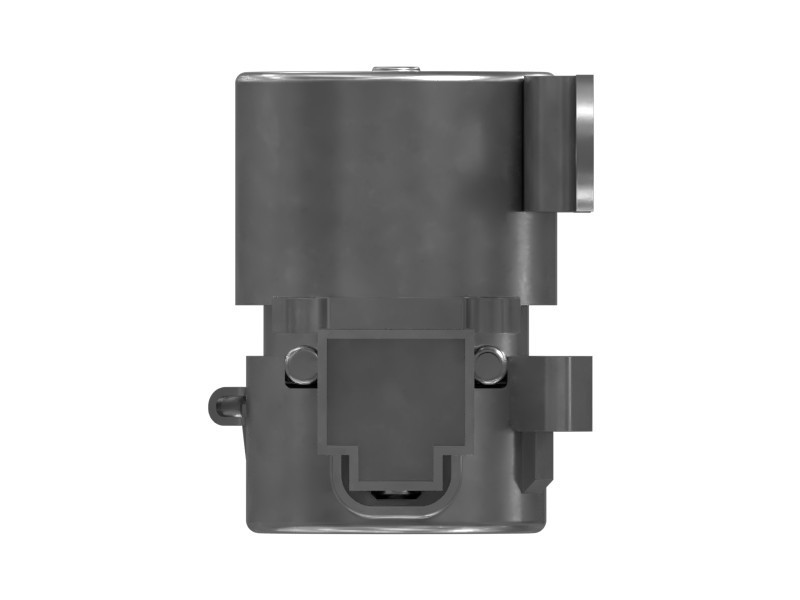

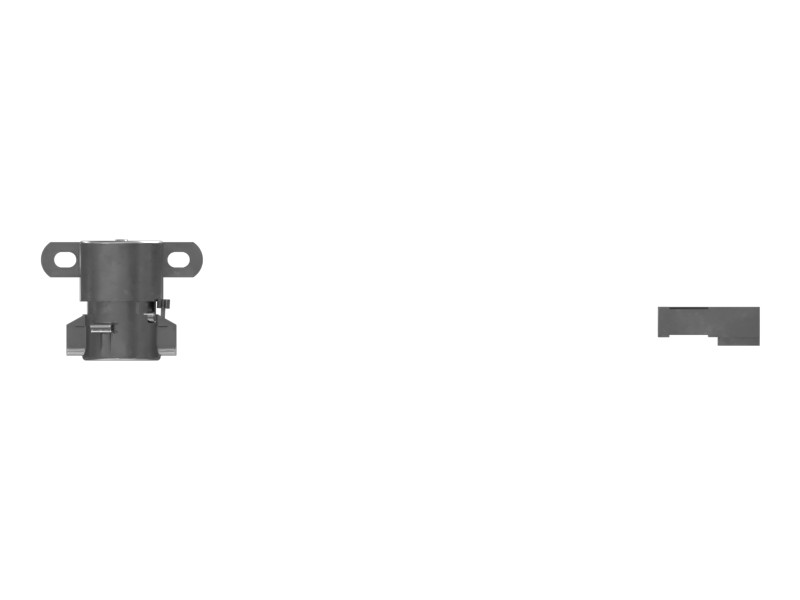

118-3534 24 Volt Magnetic Relay Switch
Cat® 24 Volt Magnetic Relay Switch that uses a magnetic field to open and close a circuit, for intake air heaters
Description
Cat parts ensure your equipment runs at its best. The Cat magnetic contactor switch is an electromechanical switch used to safely turn high-current components on or off.
Features
- 2-bolt mounting
- 2-pin connector
- Highly durable
Applications
Used in the electrical systems of heavy-duty equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information. Cat components are built to work in heavy-duty applications, including severe vibration, shock, extreme operating temperature ranges, thermal cycling, thermal shock, humidity, corrosion, and excessive dust.
Specifications
| Material | Carbon Steel |
|---|---|
| Length | 74 (Switch), 230 (Cable) mm (2.9 (Switch), 9 (Cable) in) |
| Temperature | -60° to 121° °C (-76° to 250° °F) |
Compatible Equipment
- Motor Graders: 120H, 140H, 12K, 12H, 16M, 160K, 140K, 16H
- Wheel Excavators: M313D, M320, IT14G, M320D2, M317D2, M315D, M322D, M315D2
- Compactors: CS-563E, CS-54, CW-34, CS-56, CS-583D, CS-533E, CS-54B
- Engines: C18
- Dozers: D10R, D6G2 XL, D6G, D7G2, D6G2 LGP, D7G
- Wheel Loaders: 928G, 924GZ, 950G
- Off-Highway Trucks: 796 AC, 794 AC, 773F, 773E, 740, 771D, 725, 789D, 772G, 730, 775G, 793F, 793D, 735, 770G, 773D, 798 AC, 777D, 785D, 785, 789, 793
- Excavators: 3126
- Asphalt Pavers: AP-600D
Additional information
| Machine Model | 120H, 12H, 12K, 140H, 140K, 160K, 16H, 16M, 3126, 725, 730, 735, 740, 770G, 771D, 772G, 773D, 773E, 773F, 775G, 777D, 785, 785D, 789, 789D, 793, 793D, 793F, 794 AC, 796 AC, 798 AC, 924GZ, 928G, 950G, AP-600D, C18, CS-533E, CS-54, CS-54B, CS-56, CS-563E, CS-583D, CW-34, D10R, D6G, D6G2 LGP, D6G2 XL, D7G, D7G2, IT14G, M313D, M315D, M315D2, M317D2, M320, M320D2, M322D |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines |
| Part Source | Genuine OEM |
