117-8683 28.00 mm Long Spring Pin

Description

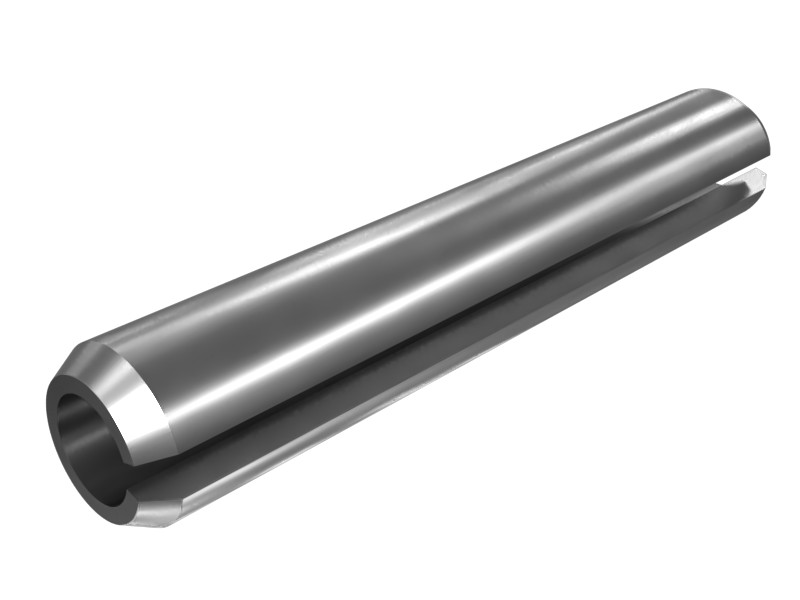

The slotted spring pin has a longitudinal slot along its entire length. The pin is compressed during installation and exerts continuous pressure against the sides of the hole wall. The pressure provides radial tension to prevent loosening due to vibration or shock. Fasteners and hardware are designed for specific applications based on size, strength, clamp load, and past performance, information that other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear suitable for your machine, but other companies do not know your equipment the way we do.

Features

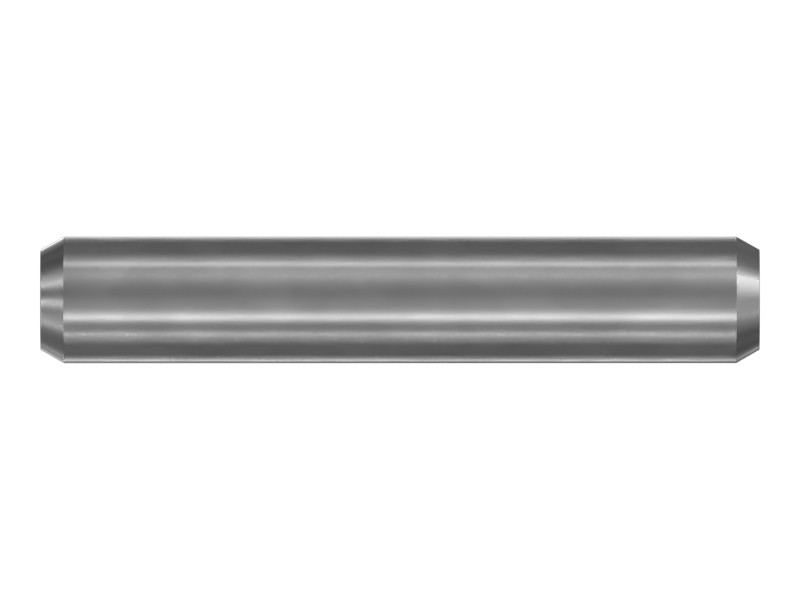

Pin Diameter: 5 mm (0.196 in)

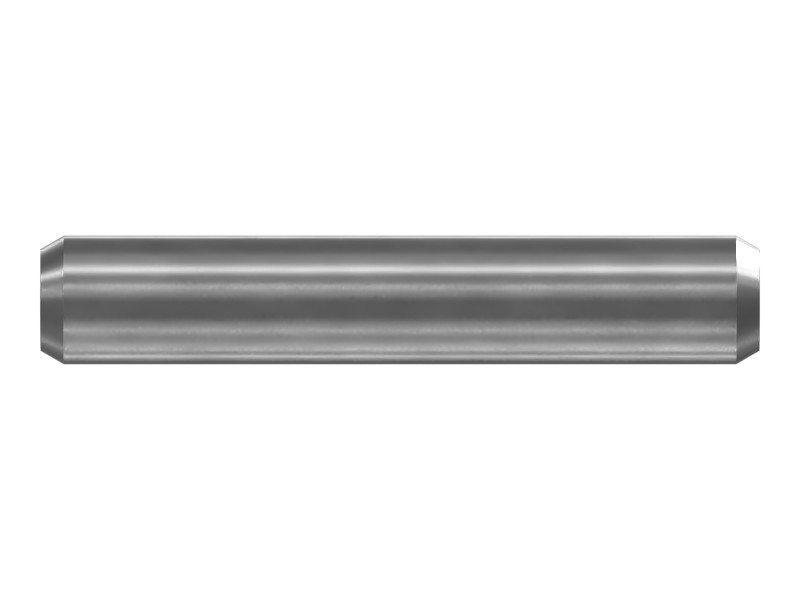

Pin Length: 28 mm (1.102 in)
Chamfered end

Applications

Refer to your Operation and Maintenance Manual or contact MECHSC for more information.

Specifications

Pin Outside Diameter	5 mm (0.197 in)
Pin Type	Spring-Roll
Pin Length	28 mm (1.102 in)
Material	—
Pin Diameter	5 mm (0.196 in)
Length	28 mm (1.102 in)

Compatible Equipment

Motor Graders: 316F
Generator Sets: C7.1, 3512B
Wheel Excavators: M320, M315, M317D2, M320D2, M313D, M322D, M315D, M315D2
Dozers: D5G, D3G, D4G
Mini Excavators: 303.5C, 301.5, 307D, 303.5, 303.5D, 306, 305.5
Excavators: 349F L, 330D L, 349D L, 345D L, 385C L, 352F, 349E L, 365C L, 365C, 385C, 345C, 345C L, 385C FS, 345D, 374F L, 390D, M325D L MH, 336F L XE, 313D2, 325D L, 336E, 312D2 L, 312D2, 312D2 GC, 336F, 325D, 329E L, 314D LCR, 318D2 L, 324D L, 329D L, 336F L, 336D2 L, 320C, 336E L, 336D L, 320D2 L, 320D L, 312D, 323D, 312E L, 312D L, 312C, 323D L, 311D LRR, 330D2 L, 336E LH, 314D CR, 315C, 323D2 L, 320D FM, 318D2, 328D LCR, 325C, 312C L, 313F LGC, 312F, 313D2 GC, 336F LN, 330D2, 336E LN, 318D L, 324D, 330D, 312E, 320E, 330C L, 315D L, 320D RR, 301.8, 320D2 GC, 336D2 XE, 325C L, 315F LCR, 313D2-GC, 330C, 390F, 385B, 349E L VG, 336E H, 335F LCR, 301.6, 329E, 313F L, 340D2 L, 349E, 390D L, 374D L, 349D2 L, 320D2, 326D2, 329D2 L, 336D2, 303, 303C CR, 305, 326D2 L, 320D, 306E, 308D, 349D2, 390F L, 329D2, 329D, 305C CR, 336D, 374F, 349D
Wheel Loaders: R1300G, R1600H, R1700G, R3000H, R2900G
Skid Steer Loaders: 236

Machine Model	236, 301.5, 301.6, 301.8, 303, 303.5, 303.5C, 303.5D, 303C CR, 305, 305.5, 305C CR, 306, 306E, 307D, 308D, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313D2, 313D2 GC, 313D2-GC, 313F L, 313F LGC, 314D CR, 314D LCR, 315C, 315D L, 315F LCR, 316F, 318D L, 318D2, 318D2 L, 320C, 320D, 320D FM, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 323D, 323D L, 323D2 L, 324D, 324D L, 325C, 325C L, 325D, 325D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330C, 330C L, 330D, 330D L, 330D2, 330D2 L, 335F LCR, 336D, 336D L, 336D2, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340D2 L, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 3512B, 352F, 365C, 365C L, 374D L, 374F, 374F L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 390F, 390F L, C7.1, D3G, D4G, D5G, M313D, M315, M315D, M315D2, M317D2, M320, M320D2, M322D, M325D L MH, R1300G, R1600H, R1700G, R2900G, R3000H
Equipment Type	Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Skid Steer Loaders, Dozers, Motor Graders, Generator Sets
Part Source	Genuine OEM
