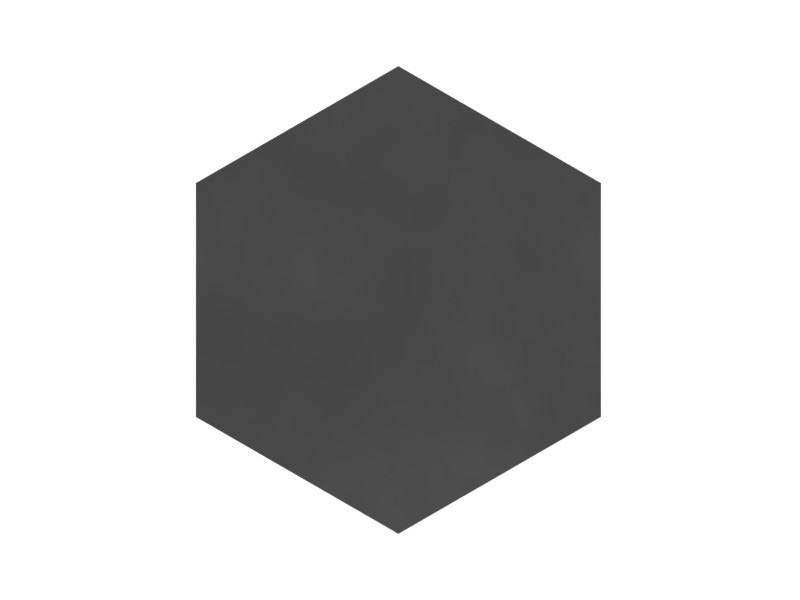

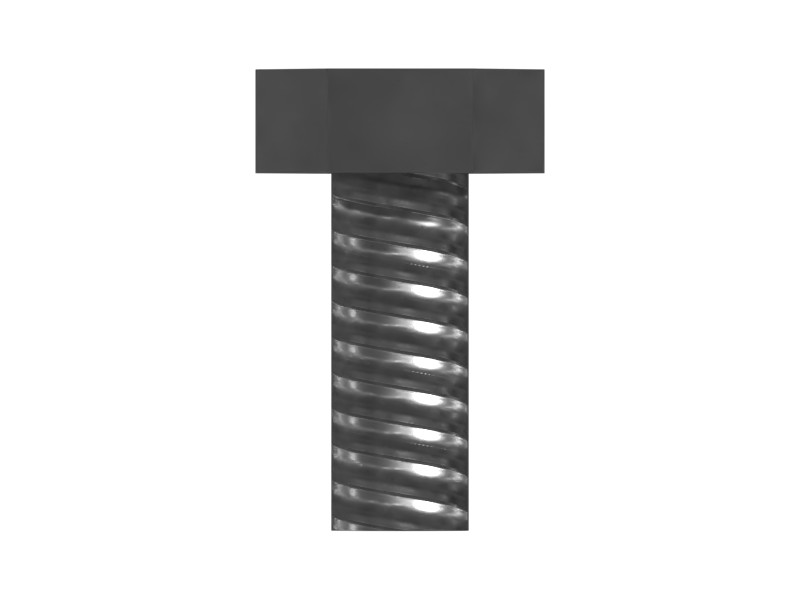

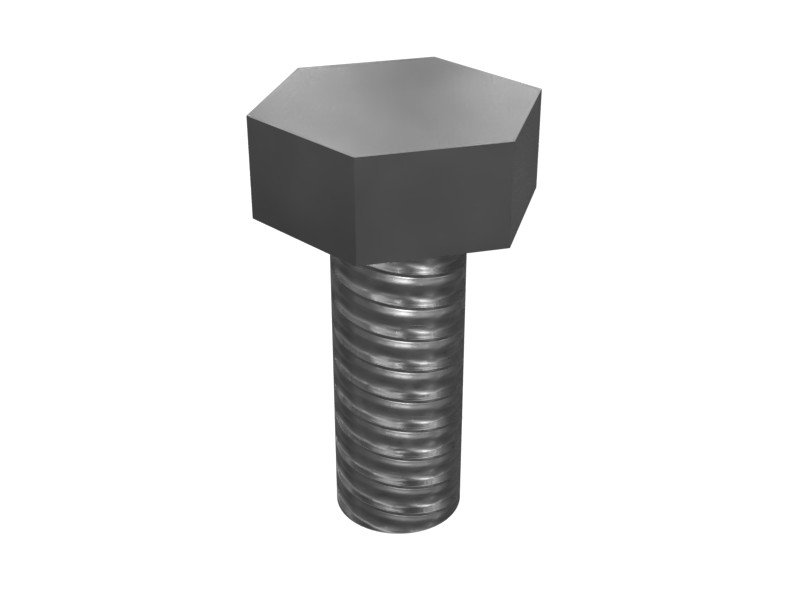

116-6952 M4 X 0.7 Hex Head Bolt
Cat® Hex Head Bolt for Camera Wiring Harness Routing protects wiring connections from possible wear.
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size | M4 mm (0 in) |
|---|---|
| Locking Feature | None |
| Thread Direction | RH |
| Class or Grade | ISO 898-1 Class 8.8 |
| Thread Size (Diameter × Pitch) | M4X0.7 mm |
| Bolt Length | 10 mm (0.394 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Material | Alloy Zinc |
| Handle Length | 2 mm (0.083 in) |
Compatible Equipment
- Generator Sets: 3406C, 3516C, 3512B, C9, 3406B
- Track Loaders: 972, 973K, 963D, 953, 963, 982, 953D, 953K, 963K
- Cold Planers: PL61, PL83, PL87
- Compactors: CS11, CS12, CS7, CC2.7 GC, CS54B, CP54B, C9.3B, CS74B, CS56B, CP56B, CS78B, CS68B, CS79B, CP12 GC, CB2.9, CB2.7, CB2.5, CS12 GC, CC-34B, CB-36B, CB-24B, CB-34B, CB2.7 GC, CB2.5 GC, CP11 GC, C13B, CB10, CS-54B, CS64B
- Engines: C15, C27, C32, C11, C13, C18, C175-16
- Excavators: 305, 6020B, 6015B, M325D L MH, 6030, 3516B, 3512C, 3508B, 305 CR, 6060, 6040, 6015, 621G
- Asphalt Pavers: AP-600D
- Skid Steer Loaders: 226B3, 216B3, 236B3, 24
- Motor Graders: 14M, 16M, 14
- Wheel Excavators: MD6310, MD6250, MD6200, M320, M315, M313D, M322D, M315D
- Dozers: D8, D7R II, D4, D3K2 LGP, D10T, D6K2, D7, D6T, D5K LGP, D6N, D5K XL, D5K2 XL
- Wheel Loaders: 966, 980, R2900 XE, RM400, 926M, 950H, 950, 928G, 836, 834, 924GZ, 928HZ, 938K, 924K, 924HZ, 938M
- Off-Highway Trucks: 794 AC, 796 AC, 798 AC, 789D, 785, 793, 725, 730, 735, 789, 793F, 793D, 797F
