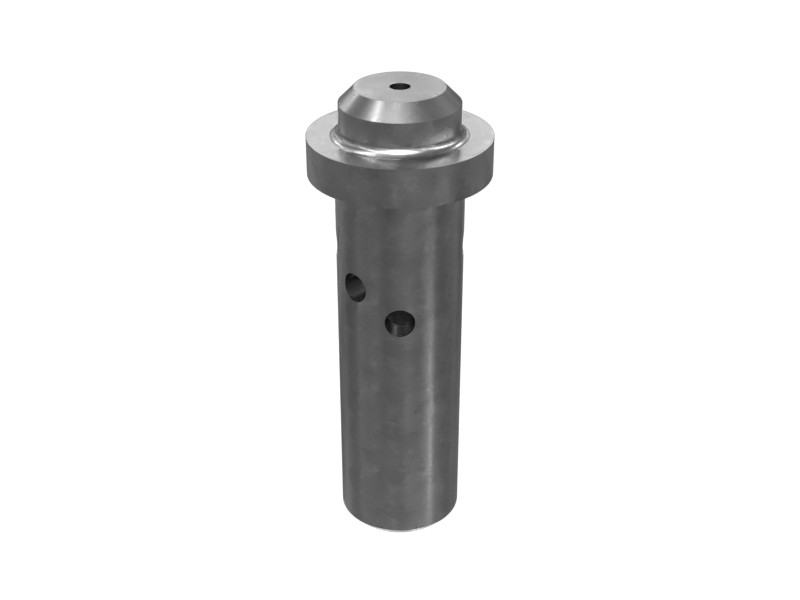

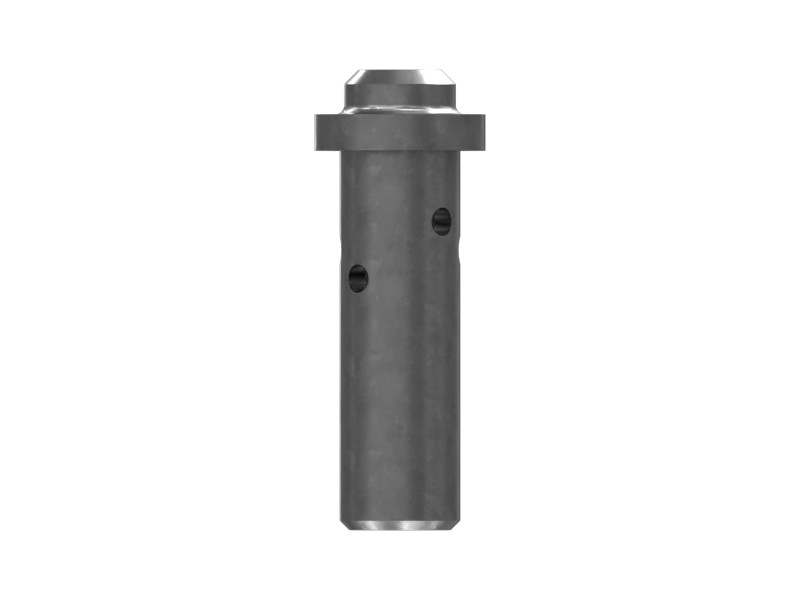

114-5477 Fuel Pressure Regulating Valve Plunger
Cat® Fuel Injection Piston Valve Description
Description
:
The fuel injection piston valve is a key component of the fuel injection system of the internal combustion engine. It plays a vital role in controlling fuel delivery, while injection timing regulates the flow of fuel into the engine combustion chamber.
Features
- Manufactured with high precision to maintain tight tolerances.
- Designed to serve original equipment manufacturer (OEM) parts as an aftermarket opportunity.
Applications
The fuel injection piston valve is a key component of the fuel injection system. It controls the delivery and timing of fuel to the combustion chamber, ensuring efficient combustion and optimal engine performance. The valve is designed to withstand high fuel pressure, and its construction and design help deliver and atomize fuel precisely. It is widely used in Cat 3034, 3500, 3508, 3508B, 3508C, 3512, 3512B, 3512C, 3512C, 3512C, 3512E, 3516, 3516B, 3516C, 3516E, 3524, 3524B, G3508, 3508, G3512, 3512, and G3516, 3516 Engines (Piston), 3156B, 3412C, 3500, 3508, 3508B, 3508C, 3512, 3512B, 3512C, 3516, 3516B, 3516C, 3516E, C9, G3508, G3512, G3516, G3516B, G3520B, G3524, G3532, PM3412, PM3508, PM3512, PM3516, PMG3516, PP3516, XQ2 000, XQ2280, XQC1200, and XQC1600 Generator Sets, 345, 5130, and 789D 3512B and 3516B Special Applications – No Pin, 3512C Power Systems, 3516C Generator Sets – 3516C Bearings, 5130, 5130B, 5200, 5230, 5230B, 6060, and 6060X Excavators, 776B, 776C, 776D, 777, 777B, 777C, 777D, 783B, 784B, 784C, 785, 785B, 785C, 785D, 785G, 787B, 789, 789B, 789C, 789D, 793, 793B, 793C, 793D, 793F, 797, 797B, MT4400, and MT4400D Trucks, 854G Wheel Dozers, 992G, 994, 994D, 994F, 994G, 994H, 994K, and 995 Wheel Loaders, D11N, D11R, and D11T Track-Type Tractors, MD6380, MD6540, and MD6540C Boron, PR20B and PR22L Locomotives, SPF343, SPF343C, SPS343, and SPT343 Pumps, Cement Trucks, TH55 and TR53 Drive Trains.
Specifications
| Inside Diameter | 14.5, 12.7, 11.75 mm (0.57, 0.5, 0.46 in) |
|---|---|
| Material | Carbon Steel |
| Length | 48.5 mm (1.91 in) |
| Outside Diameter | 12.7 mm (0.50 in) |
| Overall Length | 48.5 mm (1.91 in) |
Compatible Equipment
- Generator Sets: 3516C, 3512B, 3512E, C4.4
- Track Loaders: 995, 994K
- Dozers: D11R, D11N
- Excavators: 3516E, 3512C, 3516B, 3508B, 6060
- Off-Highway Trucks: 785, 793, 789D, 777, 785D, 777D, 793D, 789
