Description
Metric
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force.
Features
- Thread Size: M8
- Material: Steel
- Galvanized
Specifications
| Hex Size | 10 mm (0.39 in) |
|---|---|
| Thread Direction | RH |
| Class or Grade | ISO 898-1 Class 8.8 |
| Thread Size (Diameter × Pitch) | M8x1.25 mm |
| Material | Alloy Zinc |
| Thread Size | M8 mm (0 in) |
| Locking Feature | None |
| Bolt Length | 12 mm (0.47 in) |

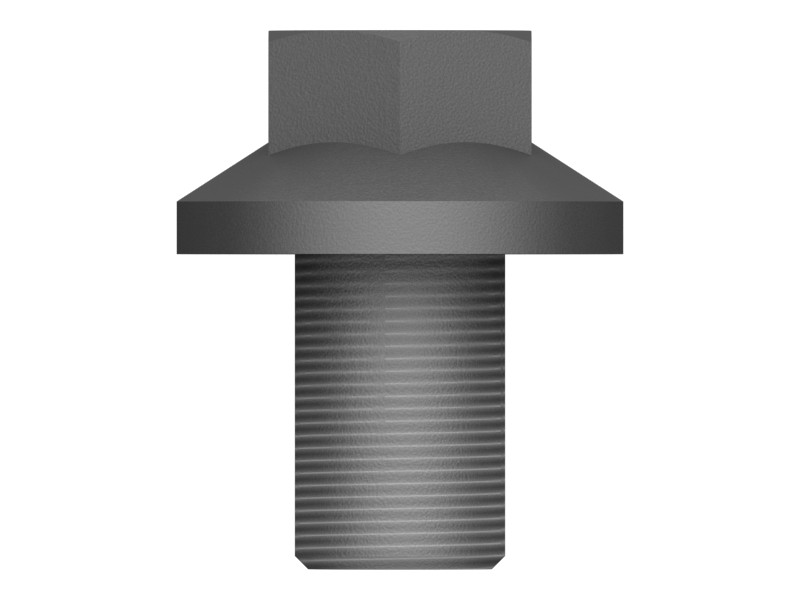

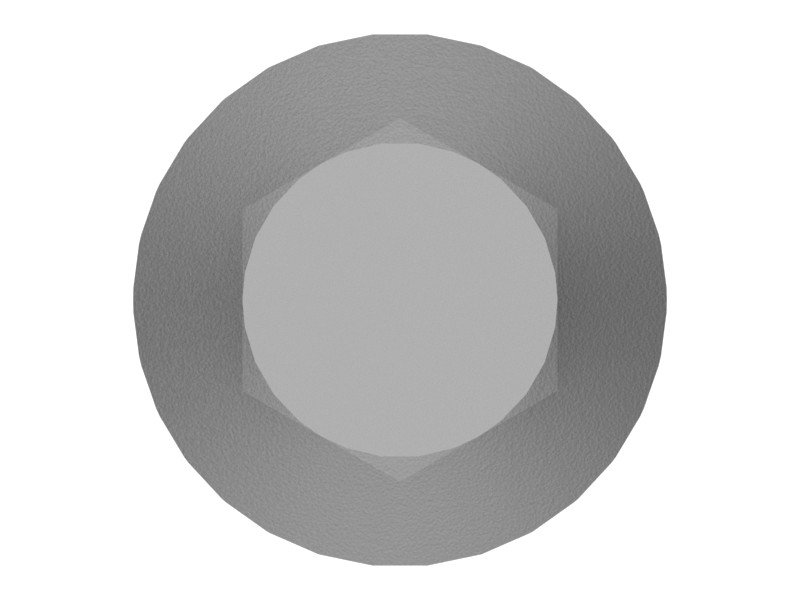

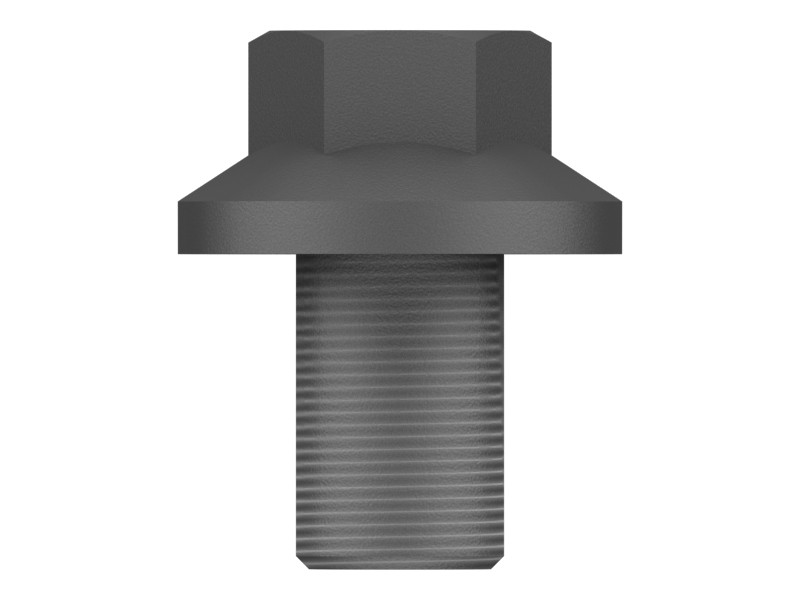

| Bolt Type | Hex Flange Head |
| Coating | Zinc |
| Handle Length | 3.12 mm (0.123 in) |
Compatible Equipment
- Generator Sets: C4.4, C7.1, C7.1DE200E, C4.4DE88E0, C2.2DE18E3
- Cold Planers: TH360B, PL61
- Compactors: CB1.8, CB1.7, CC-34B, CB-36B, CS-563E, CB-24B, CW-34, CB-34B, CB-44B, CB2.9, CB2.7, CB2.5, CS-54, CB-14, CS-54B
- Engines: C6.6
- Excavators: 305, 305 CR, 432, 315C, 301.8, 301.6, 434F2, 416E, 416F2, 428F
- Asphalt Pavers: AP-600D
- Skid Steer Loaders: 249D3, 232D3, 226D3, 226B3, 239D3, 236D3, 216B3, 236, 232D, 226B
- Wheel Excavators: M320D2, IT14G, M313D, M315, M315D, M322D, M320
- Dozers: D3K2 LGP, D5K2 XL, D6K2, D5K LGP, D5K XL, D4
- Mini Excavators: 305.5 GC, 302CR, 301.5, 301.7CR
- Wheel Loaders: 924GZ, 928G
Additional information
| Machine Model | 216B3, 226B, 226B3, 226D3, 232D, 232D3, 236, 236D3, 239D3, 249D3, 301.5, 301.6, 301.7CR, 301.8, 302CR, 305, 305 CR, 305.5 GC, 315C, 416E, 416F2, 428F, 432, 434F2, 924GZ, 928G, AP-600D, C2.2DE18E3, C4.4, C4.4DE88E0, C6.6, C7.1, C7.1DE200E, CB-14, CB-24B, CB-34B, CB-36B, CB-44B, CB1.7, CB1.8, CB2.5, CB2.7, CB2.9, CC-34B, CS-54, CS-54B, CS-563E, CW-34, D3K2 LGP, D4, D5K LGP, D5K XL, D5K2 XL, D6K2, IT14G, M313D, M315, M315D, M320, M320D2, M322D, PL61, TH360B |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Skid Steer Loaders, Dozers, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
